Name: PCE Instruments PCE-VG 20 Pressure gauge Pressure, Humidity, Temperature -10 - 50 °C Thermometer
Brand: PCE Instruments
SKU: 3841686
Availability: BackOrder

Handheld digital vacuum gauge showing 325 microns, with temperature and humidity readings on the display.<br>

FCE Instruments vacuum gauge showing H2O -7°C and 389 pascal, with ambient 28.9°C and 51% battery charge.

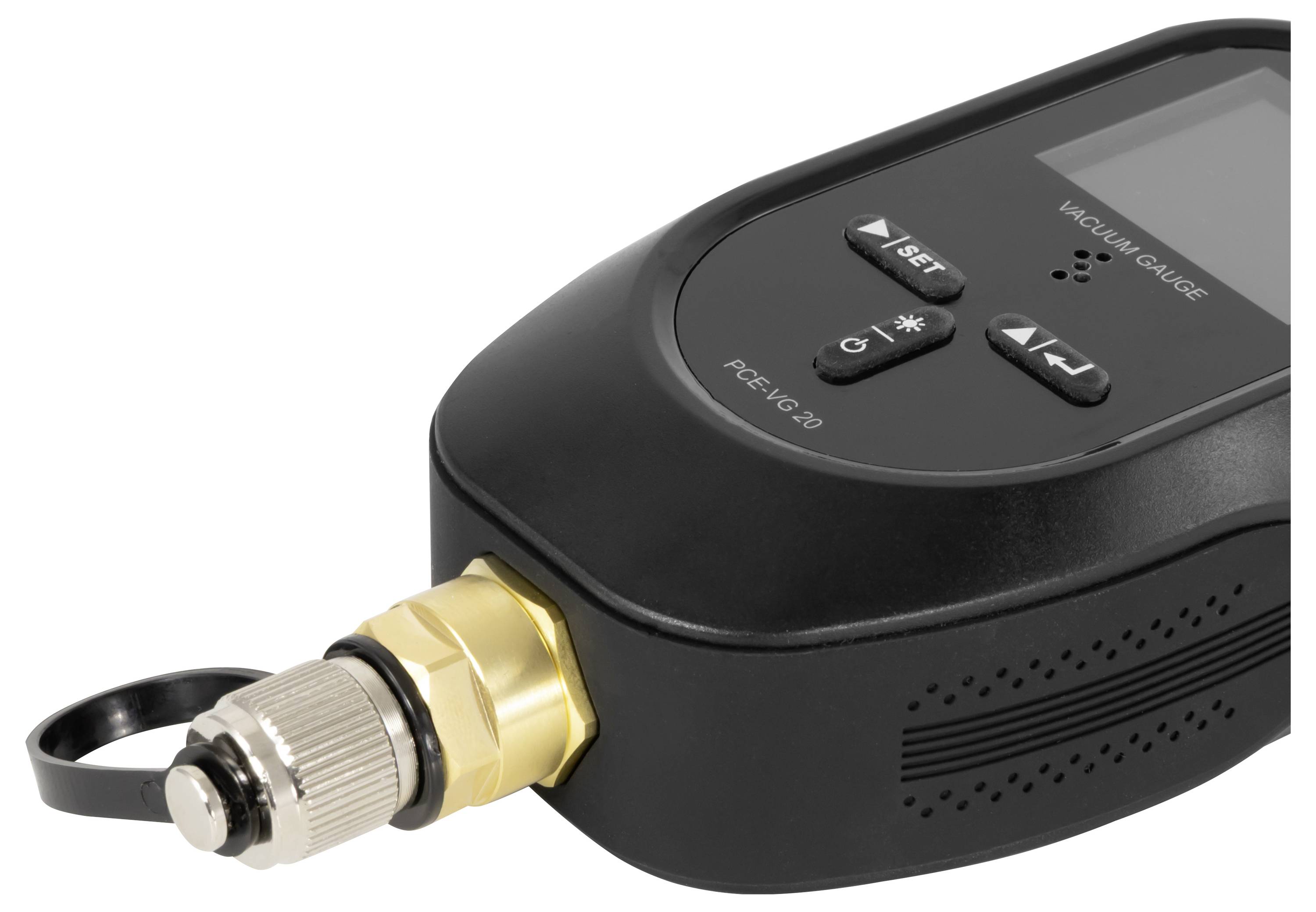

Black handheld vacuum gauge device with buttons and a brass hose fitting, shown on a white background.

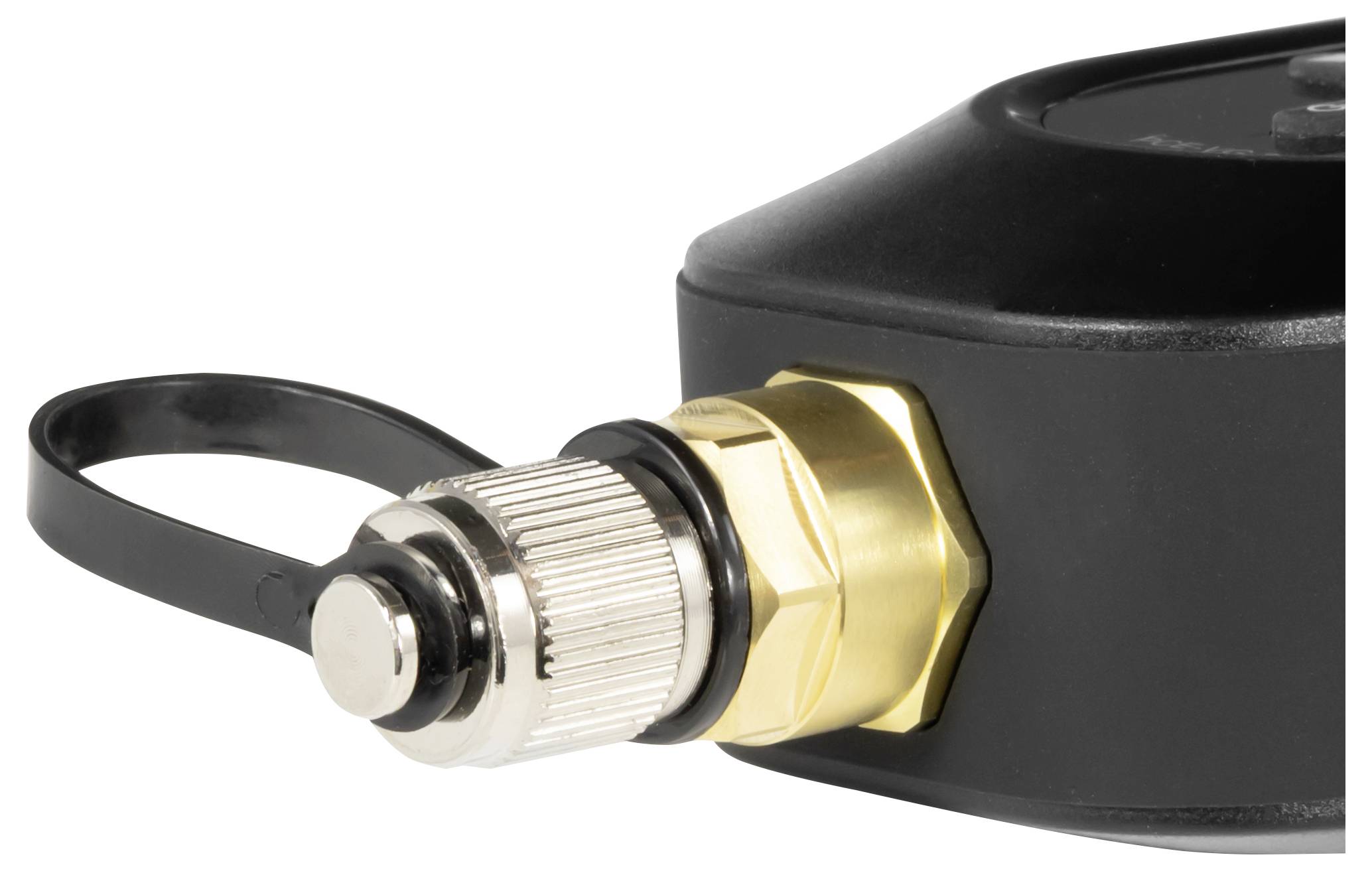

Close-up of a black device housing with a connected metal cable fitting and gold hexagonal connector on a white background.

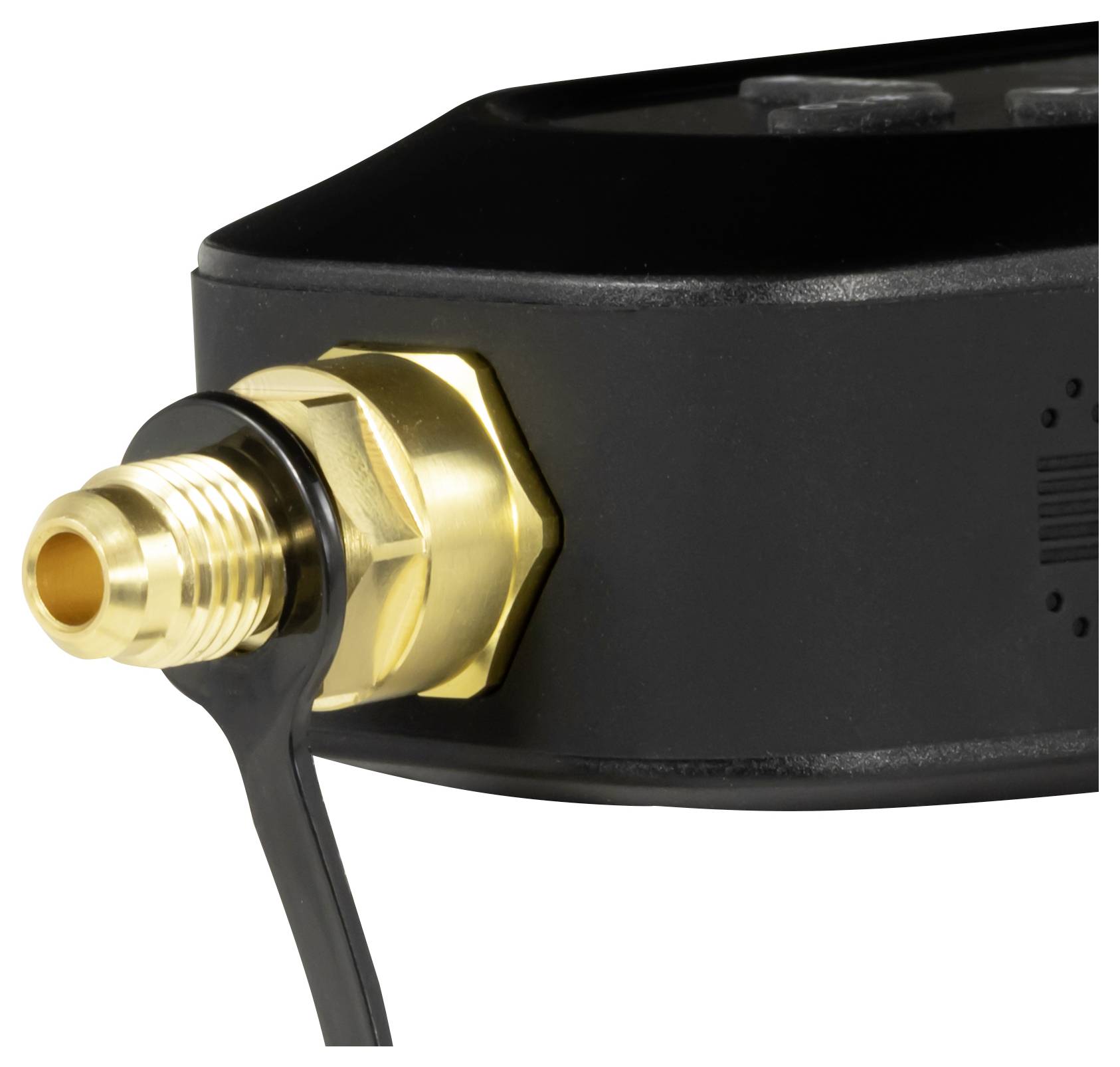

Close-up of a black device housing with a gold threaded brass connector and attached cable against a white background.

Black rechargeable battery pack with label and safety icons, shown in a close-up product view on a white background.

Vacuum gauge kit with a black carrying case, digital gauge, adapter, curved brass connector, and T-fitting with caps.

1/7

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 29 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 269.00 / piece)

€ 269.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PCE Instruments Pressure Meter PCE-VG 20 for refrigeration, air conditioning and vacuum systems |Pressure 0…75000 µmHg |Temperature -10…50 °C.

Measuring range: 0 ... 75000 µmHg
Temperature measuring range: -10 - +50 °C
Humidity measuring range: 0 ... 100 % r.h.
Moisture evaporation temperature
Alarm threshold: 0 ... 75000 µmHg (adjustable)
Alarm: Optical, acoustic
11 selectable units
Connection: 1/4" SAE male thread (7/16"-20 UNF)

Technical specifications

Pressure
Measurement range 0 ... 1000 µmHg
Resolution 1 µmHg
Accuracy +/-(10 % from MW. +10 µm Hg @ 100 ... 1,000 µm Hg) %
Pressure
Measurement range 1000 ... 2000 µmHg
Resolution 10 µmHg
Pressure
Measurement range 2000 ... 5000 µmHg
Resolution 100 µmHg
Pressure
Measurement range 5000 ... 10000 µmHg
Resolution 500 µmHg
Pressure
Measurement range 10000 ... 75000 µmHg
Resolution 5000 µmHg
Humidity relative
Measurement range 0 - 100 %
Resolution 1%.
Accuracy +/-3 %
Temperature
Measurement range -10 - +50 °C
Resolution 0.1 °C
Accuracy +/-0.5 °C.
Temperature
Measurement range 14 - 122 °F
Resolution 0.2 °F
Accuracy +/-0.9 °F
General Technical Specifications
Unit(s) °C, °F, Torr, mmHg, Pa, MT, microns, µmHg, hPa, kPa mbar, psia, inHg
Connections 1/4 inch SAE
Display type TFT LCD display
Display size 1.8 inches
Automatically switches off approx. 30 min.
Optical alarm, acoustic alarm
Alarm mode Alarm mode: Target vacuum alarm, alarm limit: Adjustable threshold: 0 ... 75000 µmHg
Excess pressure 2 bar
Pirani sensor sensors
Measurement interval 0.5 s.
Menu language English (US), English (GB)
Protection class (device) IP20
Power supply batteries
Battery 3 x 1.5 V AA battery , alkaline-manganese
Capacity: 2970 mAh
Power 2.96 Wh
Operating conditions -10 ... 50 °C , 10 ... 90 % r. F.
Storage conditions -20 ... 50 °C , 10 ... 90 % r.h.
Dimensions (L x W x H) 150 x 65 x 35 mm.
Weight 190 g

Power supply (details): 1.5 V

Product type: Pressure gauge

Reading range: -10 - 50 °C

Unit of measurement: Pressure
Humidity
Temperature

Operating voltage: 1.5 V

Pneumatic connection: 1/4 inches SAE

Reading range: 0 - 75000 µmHg, 0 - 100 % rF, -10 - 50 °C, 14 -122 °F

: Manufacturer's standards (no certificate)

Display range: TFT LCD display, 1.8" size

Basic accuracy: 0.1 °C

Sensor: Pirani sensor

Temp.: 10 - +50 °C

Accuracy: 0.5 °C

: IP20

Type: Pressure gauge for refrigeration, air conditioning and vacuum systems

Dim: (L x W x H) 150 x 65 x 35 mm

Weight: 190 g

Resolution: 0.1 °C

Features: Thermometer

Accuracy: 0.5 °C

Reading range (max.): 50 °C

Reading range (min.): -10 °C

Width: 65 mm

Height: 35 mm

Length: 150 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3841686 PCE Instruments PCE-VG 20 Pressure gauge Pressure, Humidity, Temperature -10 - 50 °C Thermometer

User & Safety Instructions

User & Safety Instructions 3841686 PCE Instruments PCE-VG 20 Pressure gauge Pressure, Humidity, Temperature -10 - 50 °C Thermometer

Description

The vacuum measuring device enables a precise and reliable monitoring of vacuum systems and supports in the installation, maintenance and testing of different plants. The measuring range of the vacuum measuring device is 0 ... 75000 µmHg. The device supports the vacuum units micron, mTorr, µmHg, Torr, mmHg, Pa, hPa, kPa, mbar, psia and inHg. Depending on the measuring range, the vacuum resolution is 1 ... 5,000 µmHg. In addition, the vacuum measuring device calculates the moisture evaporation temperature to help with the evacuation of refrigeration systems.

A precise Pirani sensor takes care of a reliable measurement, while the measured values are updated every 0.5 seconds. The vacuum measuring device has an easy-to-read 1.8-inch TFT LCD display and additionally measures the ambient temperature in the range of -10 to +50 °C as well as the relative humidity of 0 to 100 % relative humidity. Power is supplied by three AA batteries. The system is connected to a 1/4 inch SAE male thread (7/16 inch-20 UNF).

In addition, the vacuum measuring device has an adjustable threshold alarm with colored backlighting. As soon as the preset vacuum limit is reached, an optical alarm indication is displayed. The device is suitable for the installation, maintenance and testing of refrigeration systems, air conditioners, cool rooms as well as for monitoring vacuum pumps.
