PCE Traunsee 9216212 CEE motor protection plug 32 A 5-pin 400 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 739.00 / piece)
€ 739.00
incl. VAT
Only 5 Piece(s) available
Highlights & Details
CEE-MOTOR PROTECTION PLUG PROTECTION Traunsee MV2 m5G4 PW 32/5 Most 32 A
- 32 A
- IP44
Technical specifications
- Cable length: 2 m
- Housing Volllgummi
- Phase inverter plug 32A5P 400V
- 25-32A 12.5 kW
- M32 cable gland (13-20mm), M16 (5-10 mm)
- Temperature range: -25 to +40 °C
- Product type
CEE motor protection plug
- Features
Rotating magnetic field indicator
Phase inverter
Contactor
Switch
- Nominal voltage
400 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Type A

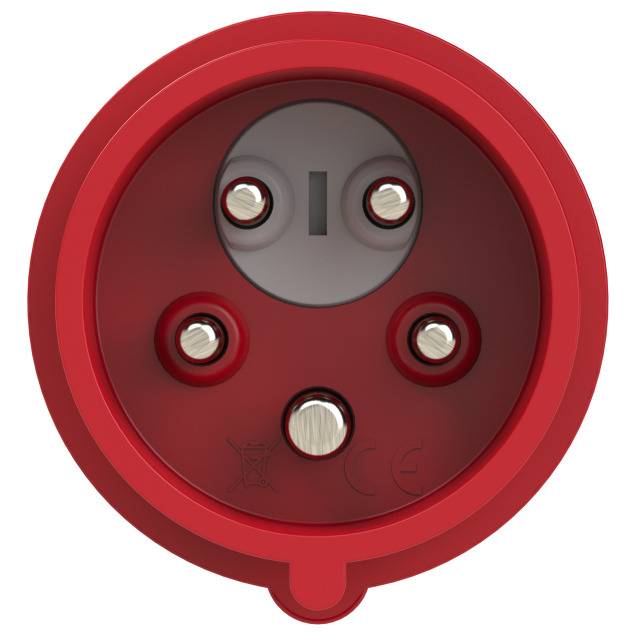

CEE phase inverter plug (5-pin, 32 A)
- Type B
Screw terminals
- Cable standard
H07RN-F 5G 4 mm²
IP44
- Dim
(L x W x H) 260 x 165 x 90 mm
- Length
260 mm
- Width
165 mm
- Height
90 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1276551 PCE Traunsee 9216212 CEE motor protection plug 32 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1276551 PCE Traunsee 9216212 CEE motor protection plug 32 A 5-pin 400 V 1 pc(s)
Description
Main area of use is the switching and protection against thermal overload and short-circuit of DC motors such as pumps, compressors, industrial engines up to 15 k W (380/400 V), with control options, such as float switch, housing made from solid rubber. With rotary switch I = manual operation, 0 = off, II = automatic operation.
This text is machine translated.
This text is machine translated.
Features
- Contractor
- Rotary Switches
- Phase inverter
- Spin control.
Hints
Please note: This article is an order-related production. That is why a return is unfortunately not possible.
