Name: Pfannenberg PF 11000 115V 54 7035 Fan and filter 115 V AC 11 W (W x H x D) 109 x 109 x 66 mm 1 pc(s)
Brand: Pfannenberg
SKU: 2586035
Availability: BackOrder

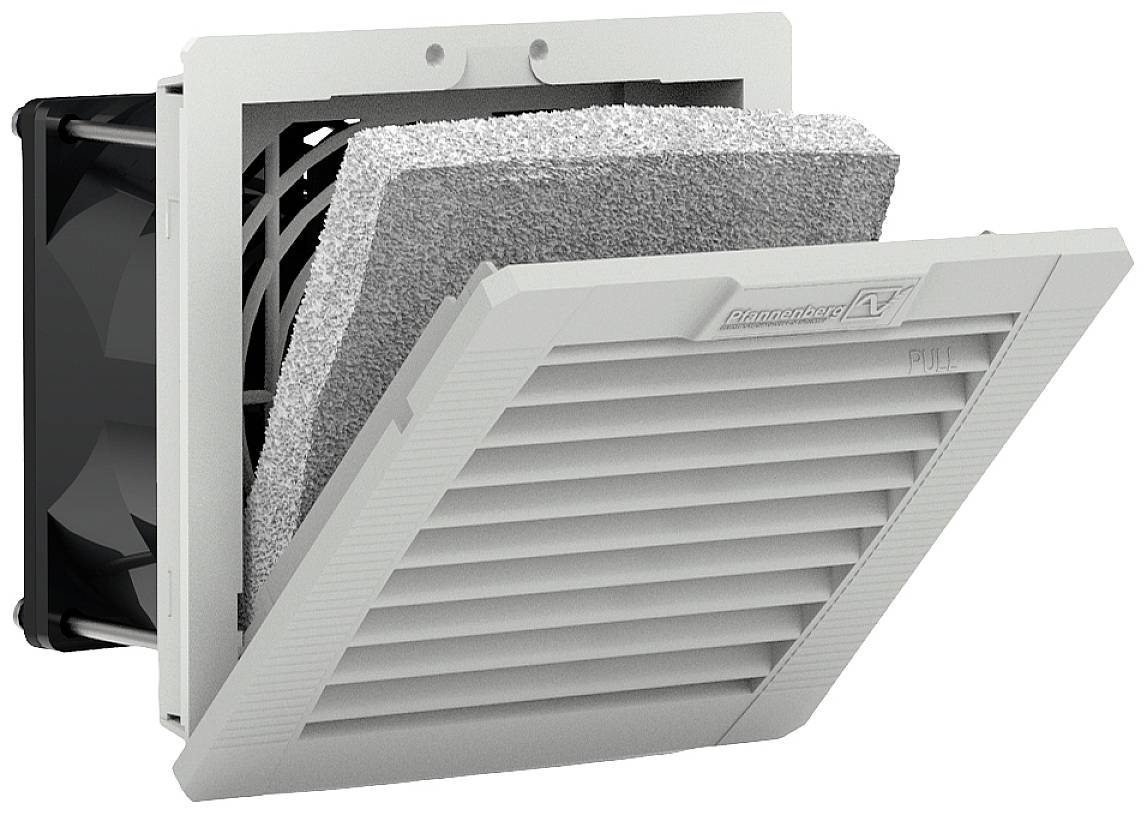

Fan with removable cover showing the internal filter. Suitable for cooling and ventilation of electronic devices or control cabinets.

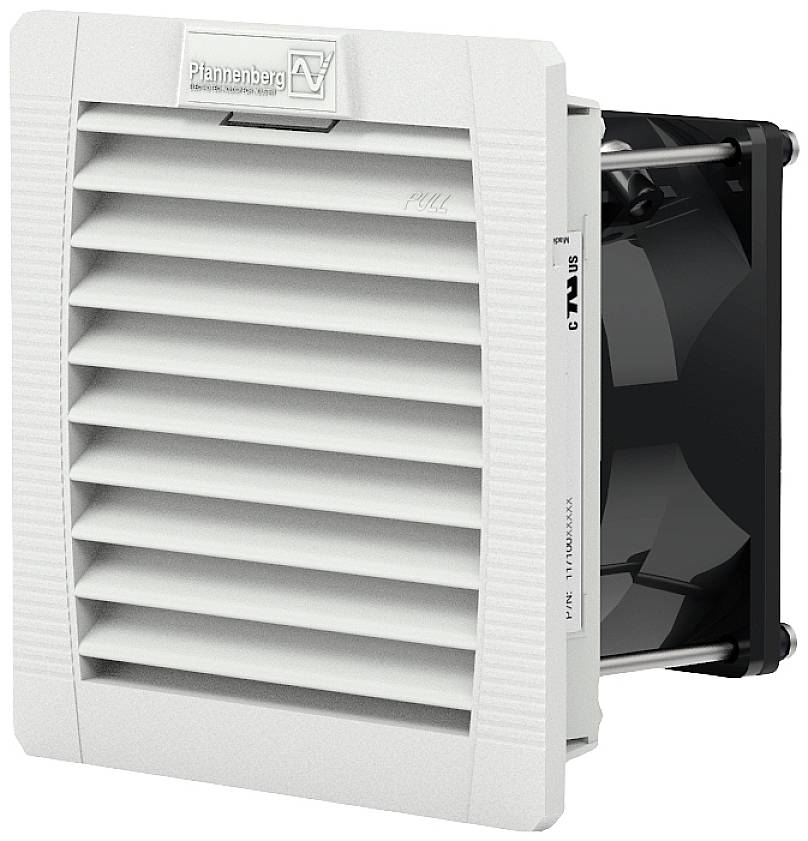

Pfannenberg air filter fan with ventilator. Product for cooling electronic enclosures through air circulation.

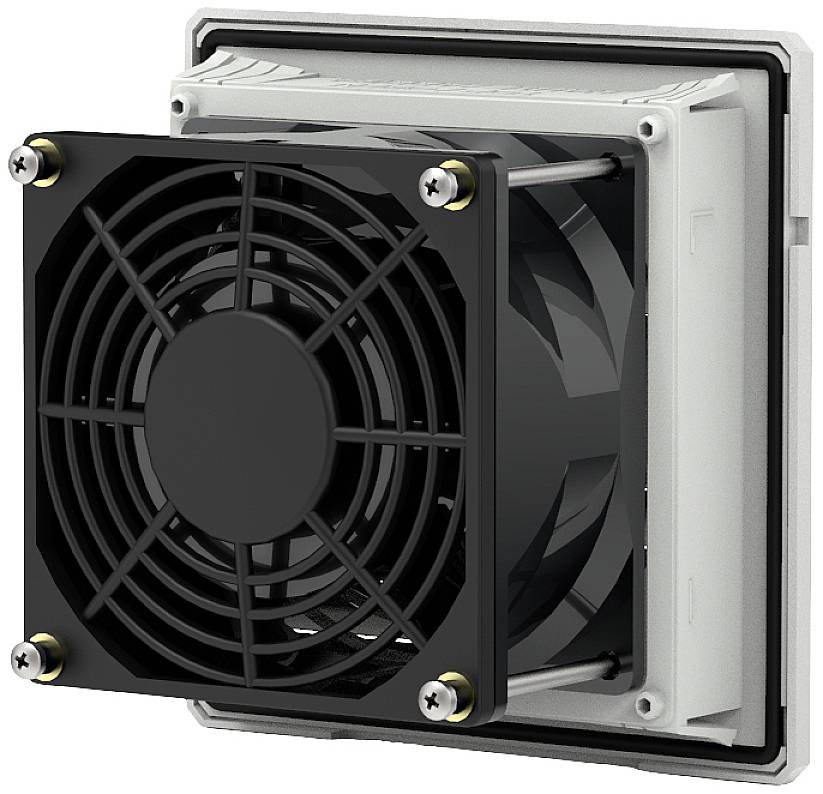

A black fan in a rectangular housing, secured by four screws. The fan is designed for cooling or ventilation.

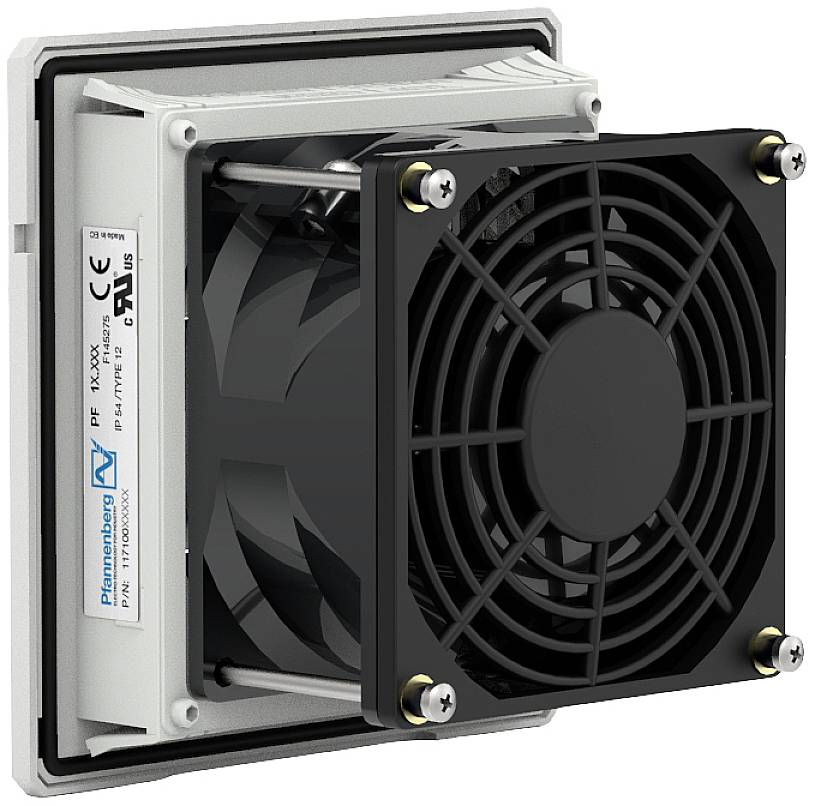

'A black fan with a square grille in a white casing, mounted on a metal plate.'

1/5

Product type

Fan and filter

Operating voltage

115 V AC

Power

11 W

Width

109 mm

Height

109 mm

Datasheet (PDF)

Dispatches on Wed 28 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 83.99 / piece)

€ 83.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: Snap-on mountingRAL number: 7035Number of fans: 1EMC version: No.Wall mounting: Yes

Product type: Fan and filter

Type: PF 11000 115V 54 7035

Features: incl. filter

Operating voltage: 115 V AC

: 11 W

Air flow rate: 25 m³/h

Compatible with: Pfannenberg

Factory colour: Grey

: IP54

Width: 109 mm

Height: 109 mm

Depth: 66 mm

Dim: (W x H x D) 109 x 109 x 66 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2586035 Pfannenberg PF 11000 115V 54 7035 Fan and filter 115 V AC 11 W (W x H x D) 109 x 109 x 66 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2586035 Pfannenberg PF 11000 115V 54 7035 Fan and filter 115 V AC 11 W (W x H x D) 109 x 109 x 66 mm 1 pc(s)

Description

The 4. Generation of Pfannenberg filter fans combines all the advantages of over 60 years of experience. The use of filter fans is the most efficient and cost-effective way to cool the control cabinet at low ambient temperatures.The cap of this product is RAL7035 (gray).Advantages of the entire series at a glance:- High air output (19 - 845 m3/h) in a small space and low energy consumption- Standard available in RAL 7035 gray and RAL 9011 black- IP 54 protection, closed frame prevents the ingress of unfiltered air- Patented tool-free 4-corner snap mechanism allows installation in seconds and ensures a secure hold- Foamed gasket simplifies assembly- Easy filter pad change in seconds thanks to optimized front cover- Flat design and neutral design enable perfect machine integration- The filter fans can be retrofitted in most applications because the mounting cut-outs are compatible- Approvals: CULus, cURus, EAC, CSA

This text is machine translated.
