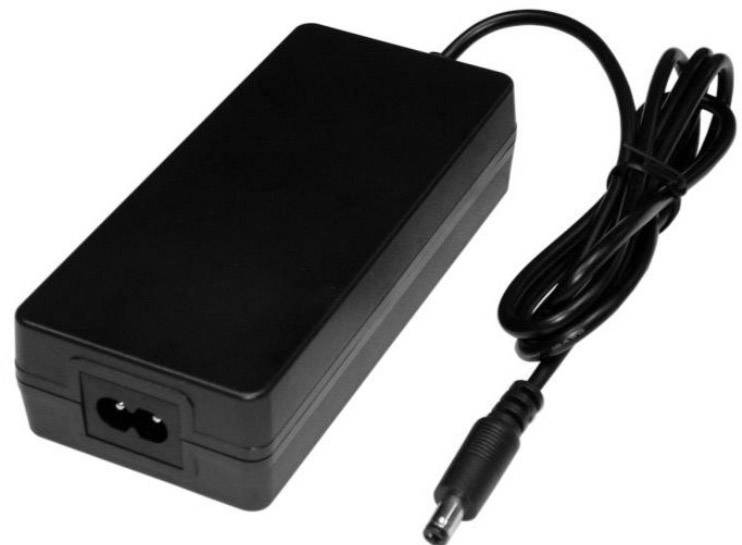

Name: Phihong PSAC60W-480 Bench PSU (fixed voltage) 48 V DC 1.25 A 60 W Regulated
Brand: Phihong
SKU: 1527604
Availability: InStock

Technical specifications

DC cable length: 1.20 m

Product type: Bench PSU (fixed voltage)

Used at: Mains socket

Max. output current: 1.25 A

Output current (max.) - rounded: 1.25 A

Output: 5.5/2.1 coaxial connector

Output voltage: 48 V DC

Input voltage: 115 V AC
230 V AC

No. of outputs: 1 x

Connections: DC-hollow plug 5.5 x 2.1 mm

Type: Protection class 2

Inputs: IEC 320 C8

EuP Status: Step 2

Weight: 305 g

: 60 W

PSU features: Regulated

Type: Pulsed

Width: 50 mm

Height: 32 mm

Length: 120 mm

Type: PSAC60W-480

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1527604 Phihong PSAC60W-480 Bench PSU (fixed voltage) 48 V DC 1.25 A 60 W Regulated

User & Safety Instructions

User & Safety Instructions 1527604 Phihong PSAC60W-480 Bench PSU (fixed voltage) 48 V DC 1.25 A 60 W Regulated

Description

Compact Desktop power supply for various power supply tasks. Examples for the supply are: wireless communication, peripherals, power plant technology, mobile equipment.
Due to the very low standby consumption, these desktop power supplies as the ideal replacement power supply for devices with conventional transformer and long-control technology. Through the exchange you save energy and money.

This text is machine translated.

Features

Desktop Switching Power Supply
Closed/splash-water protected
Minimum consumption in standby
Compact design
Overload- and short circuit-proof
Pluggable power input
EU CoC V 5 Tier 2/ENERGY STAR DOE VI.

Hints

Power cable not included.
