Philips 8719514955301 LED panel White

Philips 8719514955301 LED panel White-0

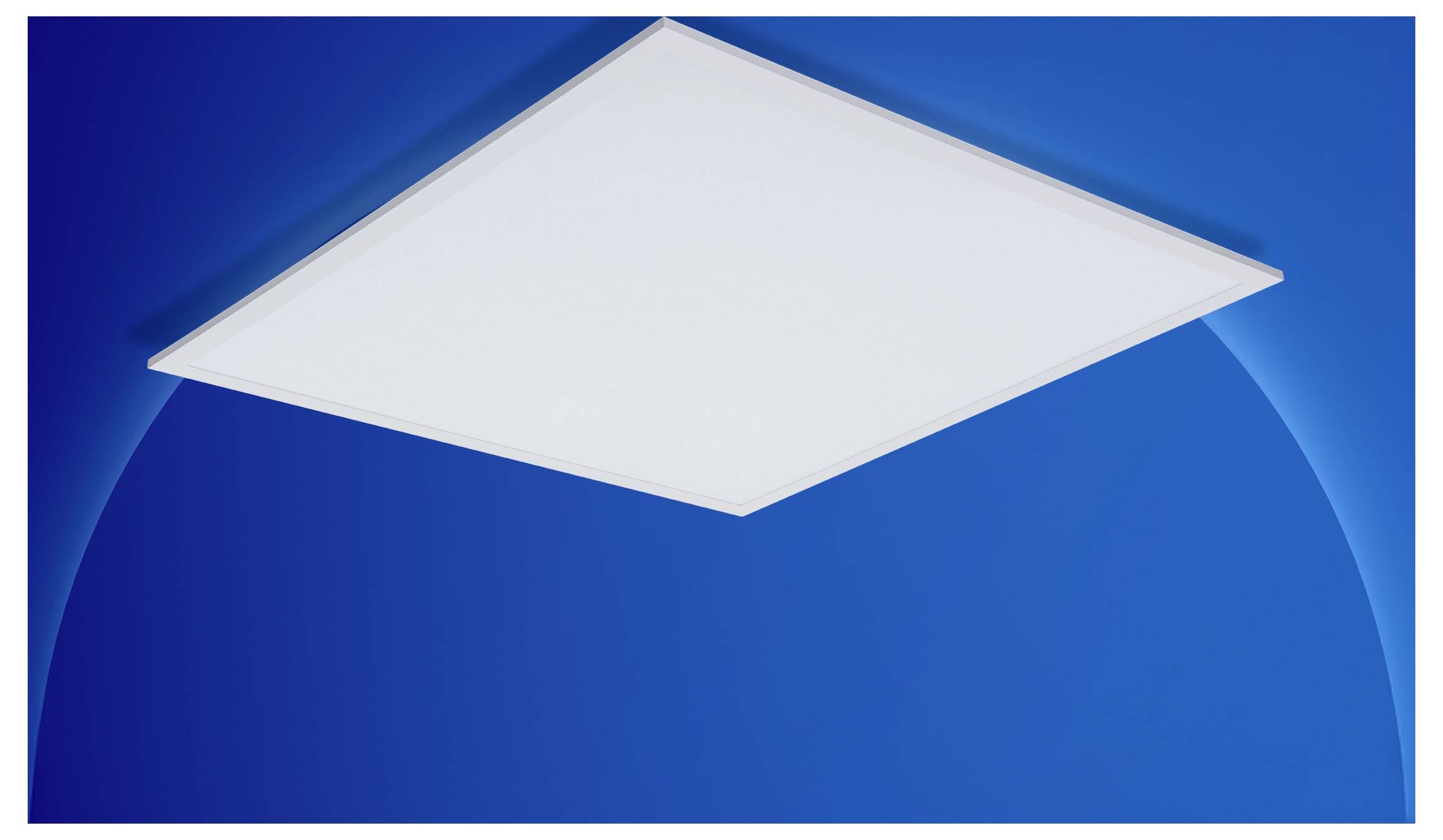

A blank white rectangular panel floating over a blue gradient background.
Philips 8719514955301 LED panel White-2

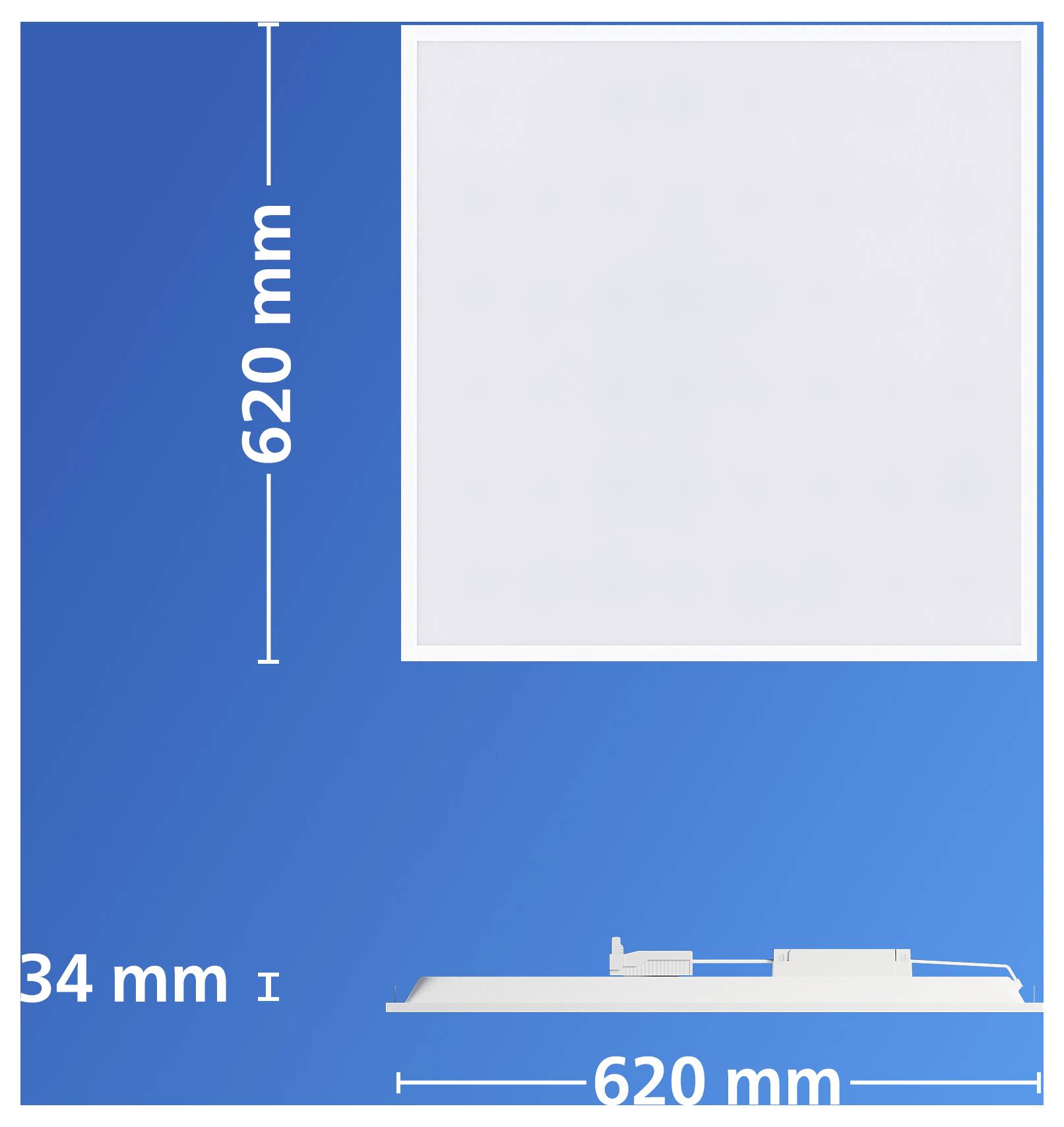

Technical size diagram showing a flat rectangular panel: 620 mm wide and 620 mm high, with a 34 mm depth measurement at the base.<br>

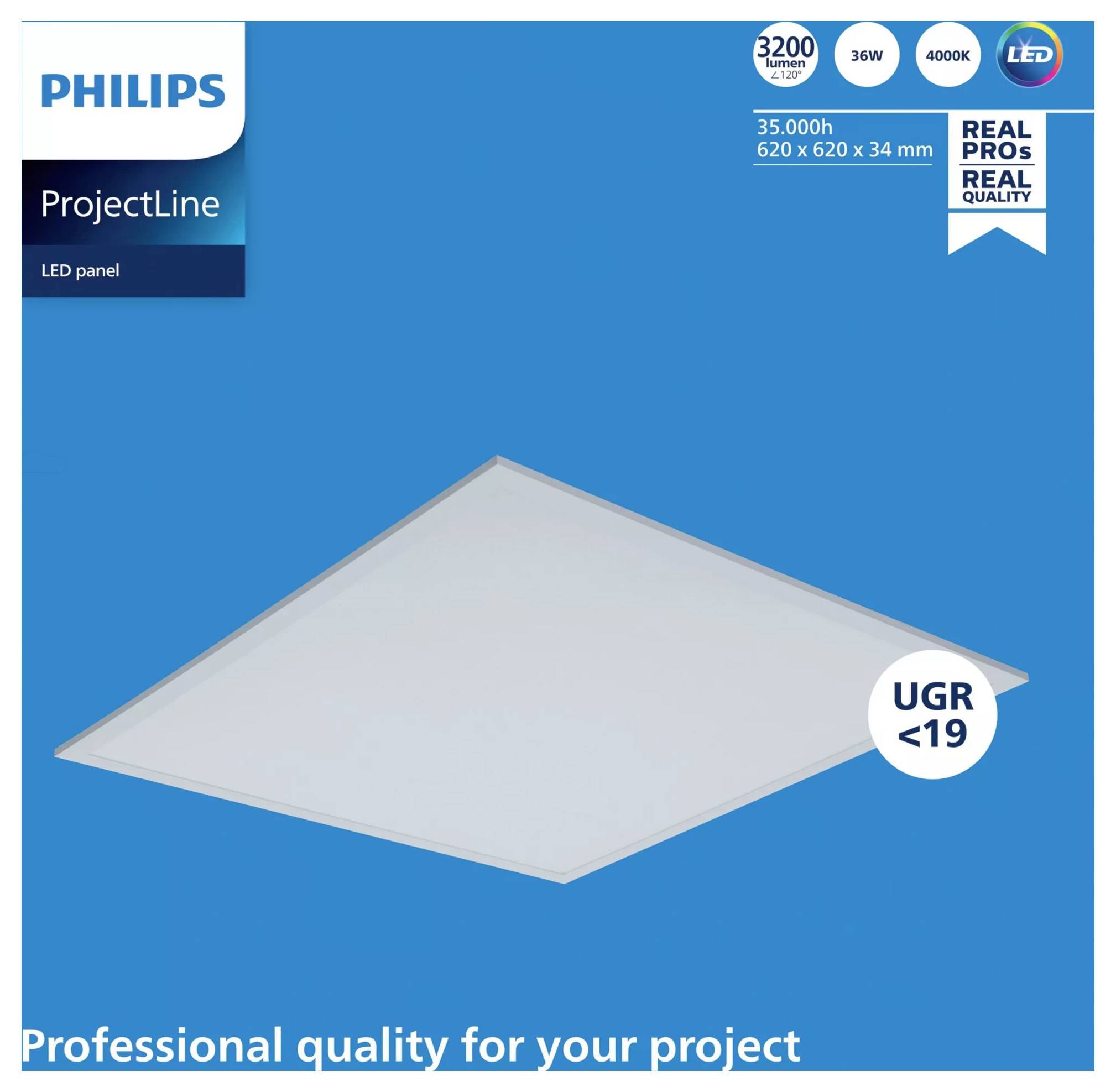

Philips 8719514955301 LED panel White-4

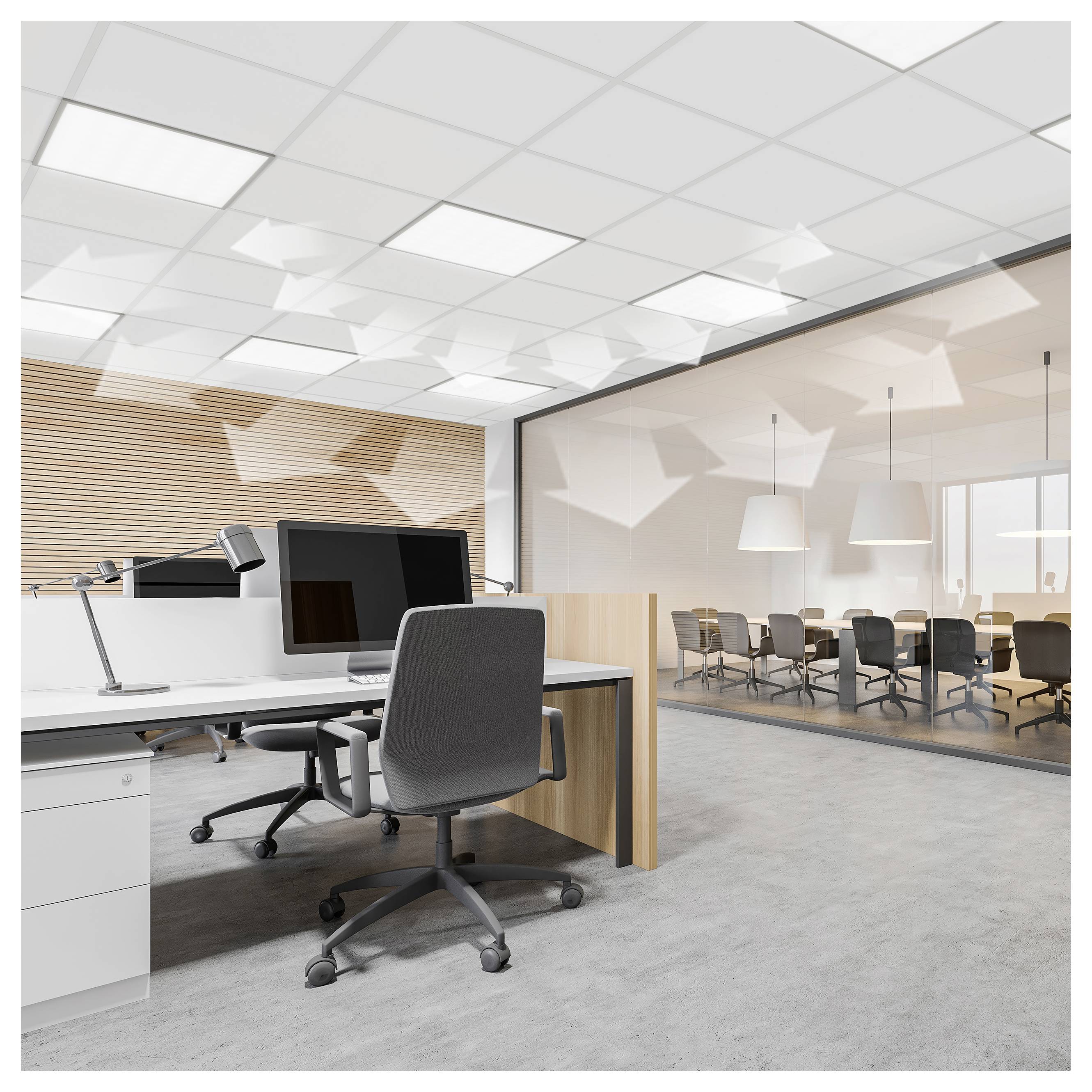

Modern open-plan office with an empty desk, swivel chair, and computer in the foreground, and a glass-walled conference room with hanging lights behind.
A young boy sits at a desk with an open notebook, holding a pen and thinking as he studies or does homework.<br>

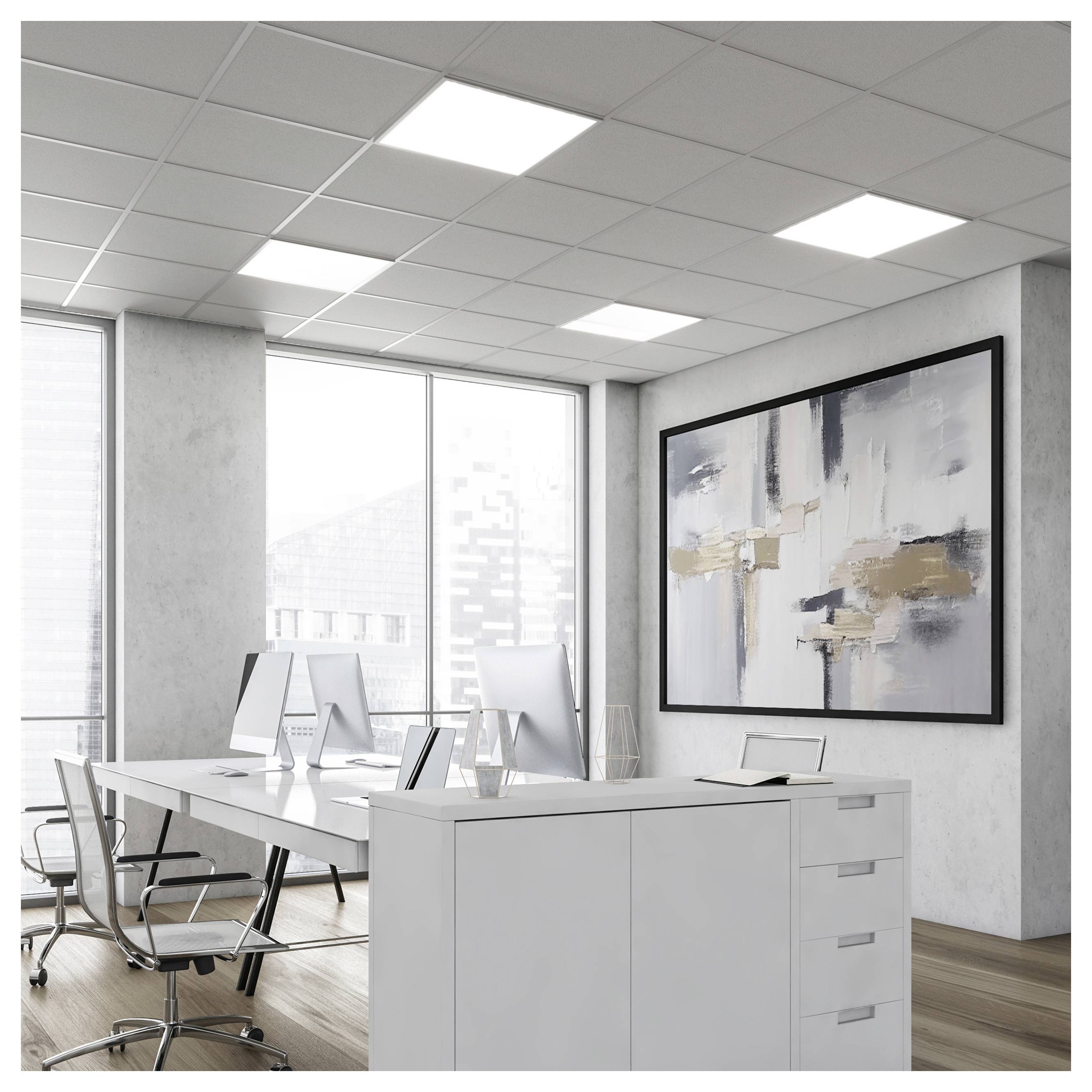

Modern empty office with desks, computer monitors, chairs, and a large abstract wall painting near bright windows.

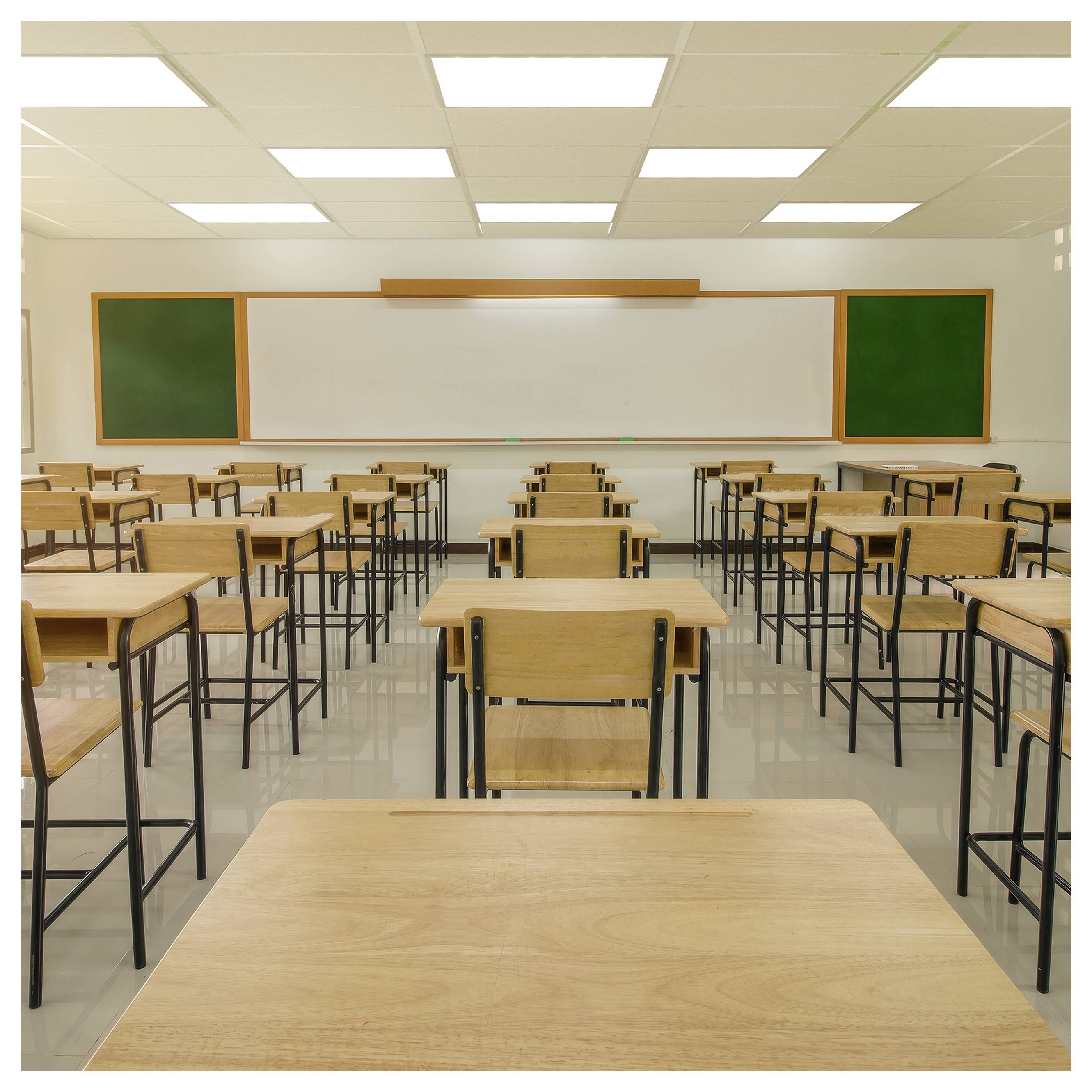

Empty classroom with rows of wooden desks and chairs facing a whiteboard and green chalkboards under bright ceiling lights.

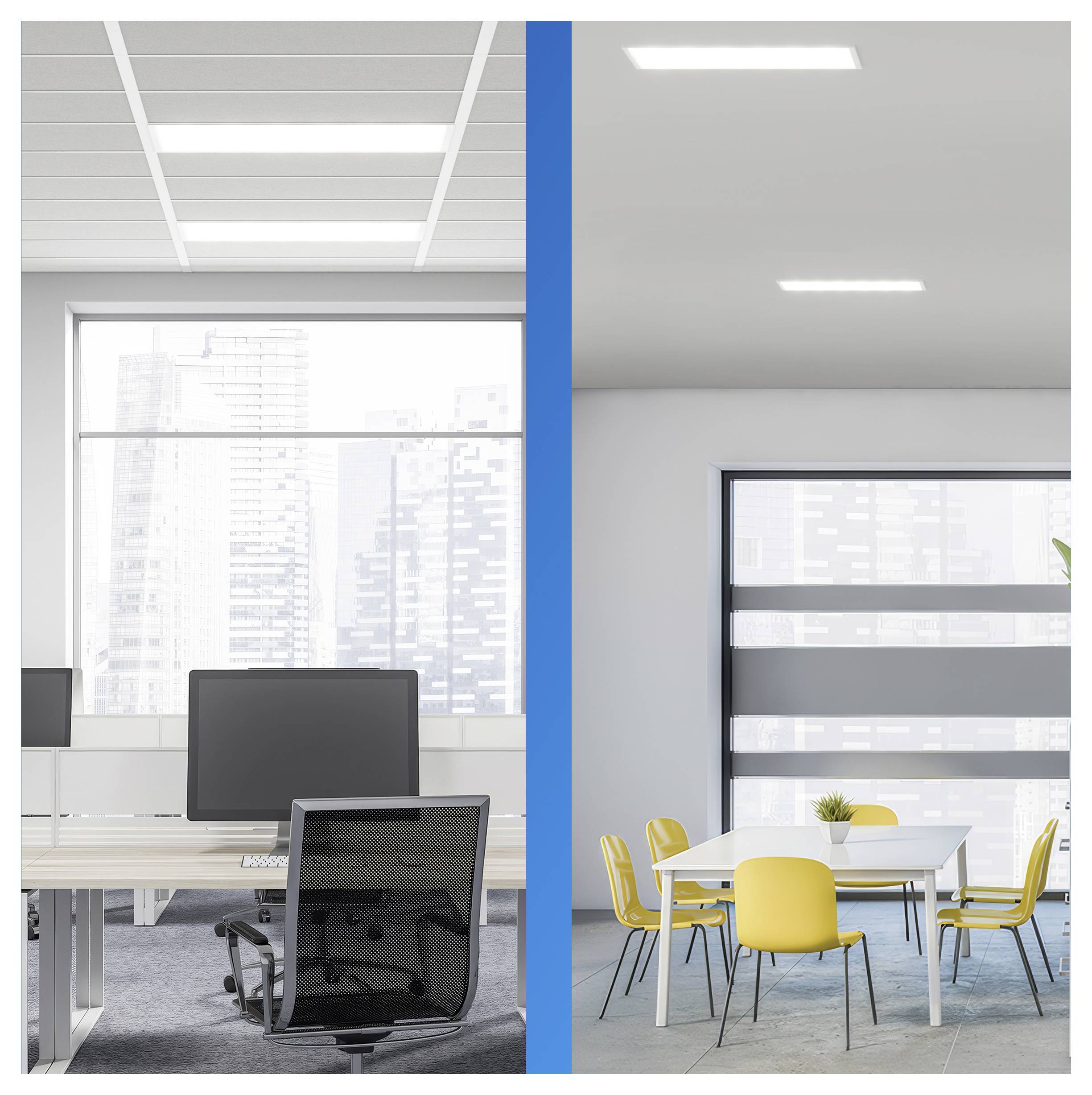

Split image comparing two office interiors: left a gray workspace with desk and chair by large windows; right a bright meeting room with yellow chairs and table.<br>

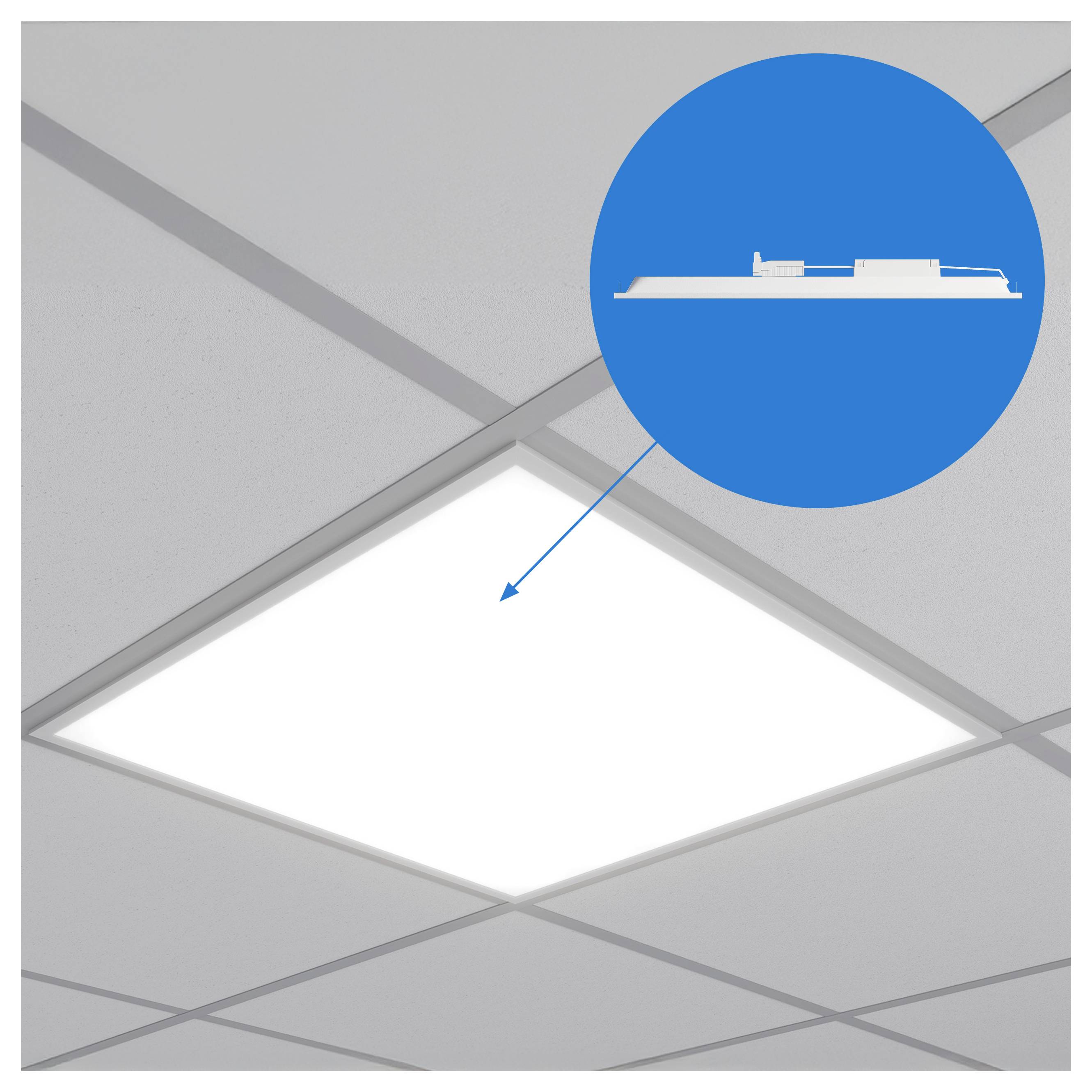

Recessed square LED ceiling panel light shown in a drop ceiling, with inset detail of the slim fixture profile.
1/11
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 10 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 45.99 / piece)
€ 45.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Philips panel light for installation and insert

Technical specifications

  • Luminous flux tolerance -10/+10%
  • Performance tolerance +/-10%
  • Power plug type: No connector
Product type

LED panel

Type

Square

Operating voltage

230 V

Bulb type

LED (monochrome)

LED

Rating per bulb

28 W

3400 lm

Radiation angle

120°

Protection class

II

IP20

Factory colour

White

Material

Metal

Weight

2.89 kg

Width

620 mm

Height

60 mm

n.rel.

No

Depth

620 mm

35000 h

Material (details)

Metal

Input voltage

220 - 240 V

Color Rendering Index (CRI)

80

Operating temperature (T-T)

-10 - 35 °C

Equivalent bulb power

250 W

Number of switch cycles

12500

Luminous efficacy

120 lm/W

Colour consistency (SDCM)

5

Driver included

yes

Average ambient temperature

25 °C

Number of gear units

1

Light source replaceable

no

Light output (max)

3200 lm

Colour temperature (min)

4000 K

Colour temperature (max)

4000 K

Inrush current

18.7 A

Inrush time

0.218 ms

Energy consumption per 1000 hours

28 kWh

Batteries included

no

Beam angle (max)

90°

Power factor

0.9

Package weight

2.66 kg

Power consumption (max)

36 W

Documents & Downloads

Datasheet

Datasheet 3816720 Philips 8719514955301 LED panel White

User & Safety Instructions

User & Safety Instructions 3816720 Philips 8719514955301 LED panel White

Description

Features

  • Reliable quality
  • Long service life of up to 35,000 hours
