Name: Phoenix Contact 1709717 Screw terminal 16.00 mm² Number of pins 5 Green 50 pc(s)
Brand: Phoenix Contact
SKU: 569525
Availability: InStock

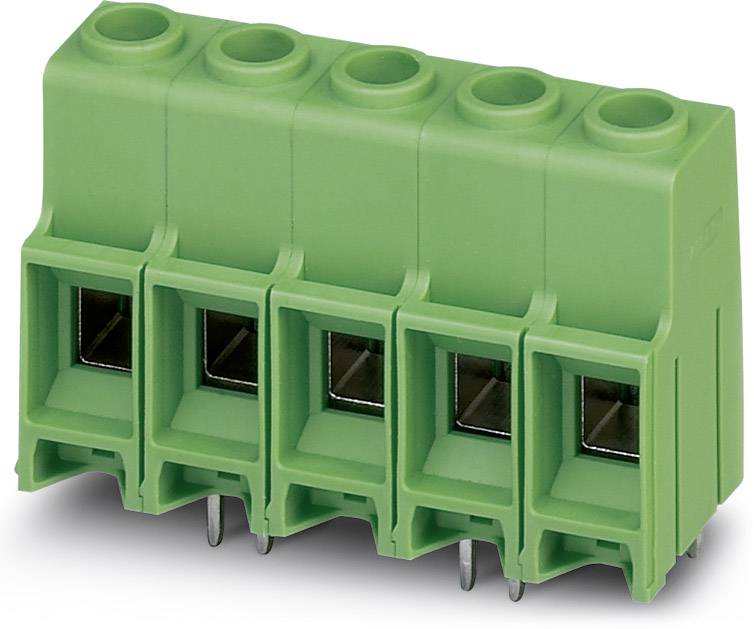

Green connector with five slots and metal pins underneath, suitable for connecting electrical lines.

Image similar

Product type

Screw terminal

10.16 mm

Pins per row

Number of pins

Connection

Screw terminal

Datasheet (PDF)

Dispatches on Tue 20 Oct

107 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 12.30 / piece)

€ 615.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: MKDS 10 HV/ 5-ZB-10,16

Product type: Screw terminal

Features: + extractor sleeve

CS: 10.16 mm

Pins per row: 5

Number of pins: 5

Series: MKDS

Stripping length (max.): 10.00 mm

Connection: Screw terminal
Print

Nominal current: 76 A

Cross section (flexible) (min.): 0.50 mm²

Nominal current - rounded value: 76 A

Cross section (inflexible) (min.): 0.50 mm²

Cross section (flexible) (max.): 16.00 mm²

Cross section (inflexible) (max.): 16.00 mm²

AWG (min.): 20

Connector orientation: Parallel (to the PCB)

AWG max.: 6

Contact material: Tin plated

Factory colour: Green

Actuation direction: Perpendicular (to the PCB)

Manufacturer part #: 1709717

Industrial packaging: Yes

Content: 50 pc(s)

Nominal voltage: 1000 V

Width: 50.80 mm

Height: 35.80 mm

Length: 18.70 mm

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Pins per row

Connection

Number of pins

Connector orientation

Product type

Phoenix Contact 1709717 Screw terminal 16.00 mm² Number of pins 5 Green 50 pc(s)

Item no:569525

Dispatches on Tue 20 Oct

107 Set(s)Conrad Electronic

This article

76 A

Screw terminal

Parallel (to the PCB)

Screw terminal

10.16 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 615.00^*

Phoenix Contact 1700905 Screw terminal 4.00 mm² Number of pins 6 Grey 50 pc(s)

Item no:194501

Dispatches on Fri 13 Nov

Conrad Electronic

32 A

Screw terminal

Parallel (to the PCB)

Screw terminal

6.35 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 189.99^*

Phoenix Contact 1703063 Screw terminal 6.00 mm² Number of pins 1 Green 50 pc(s)

Item no:192862

Dispatches on Thu 22 Oct

Conrad Electronic

32 A

Screw terminal

Parallel (to the PCB)

Screw terminal

6.35 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Phoenix Contact 1704062 Screw terminal 10.00 mm² Number of pins 1 Green 50 pc(s)

Item no:567505

Dispatches on Tue 20 Oct

5 Set(s)Conrad Electronic

76 A

Screw terminal

Parallel (to the PCB)

Screw terminal

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 174.99^*

Phoenix Contact 1704936 Screw terminal 4.00 mm² Number of pins 3 1 pc(s)

Item no:744581

Fast track dispatch on Thu 15 Oct

28 Piece(s)Conrad Electronic

32 A

Screw terminal

Parallel (to the PCB)

Screw terminal

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.29^*

Phoenix Contact 1704949 Screw terminal 4.00 mm² Number of pins 5 Green 50 pc(s)

Item no:196599

Dispatches on Tue 20 Oct

29 Set(s)Conrad Electronic

32 A

Screw terminal

Parallel (to the PCB)

Screw terminal

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 149.99^*

Phoenix Contact 1705443 Screw terminal 4.00 mm² Number of pins 3 Grey 50 pc(s)

Item no:194344

Dispatches on Wed 4 Nov

Conrad Electronic

32 A

Screw terminal

Parallel (to the PCB)

Screw terminal

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 87.99^*

Phoenix Contact 1706413 2-tier terminal 1.50 mm² Number of pins 4 Green 50 pc(s)

Item no:773860

Dispatches on Tue 20 Oct

188 Set(s)Conrad Electronic

15 A

Screw terminal

Parallel (to the PCB)

2-tier terminal

5.08 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Phoenix Contact 1706471 Screw terminal 2.50 mm² Number of pins 2 Green, Yellow 50 pc(s)

Item no:788264

Dispatches on Fri 13 Nov

Conrad Electronic

24 A

Screw terminal

Parallel (to the PCB)

Screw terminal

5.08 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 95.99^*

Phoenix Contact 1706756 Screw terminal 4.00 mm² Number of pins 4 Green 50 pc(s)

Item no:193091

Dispatches on Tue 20 Oct

11 Set(s)Conrad Electronic

32 A

Screw terminal

Parallel (to the PCB)

Screw terminal

6.35 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Documents & Downloads

Datasheet

Datasheet 569525 Phoenix Contact 1709717 Screw terminal 16.00 mm² Number of pins 5 Green 50 pc(s)

User & Safety Instructions

User & Safety Instructions 569525 Phoenix Contact 1709717 Screw terminal 16.00 mm² Number of pins 5 Green 50 pc(s)

Description

PCB terminal block, Nominal current: 76 A, Nom. voltage: 1000 V, Pitch: 10.16 mm, Number of positions: 5, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: green
