Name: Phoenix Contact 1719325 Spring-loaded terminal 6.00 mm² Number of pins 3 Green 50 pc(s)
Brand: Phoenix Contact
SKU: 192761
Availability: InStock

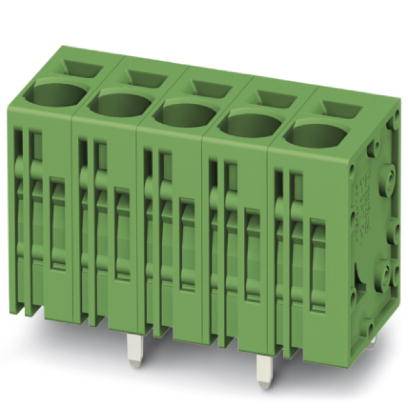

Green 5-pole pluggable terminal block with side and top cable entry options, suitable for electronic circuits.

Product type

Spring-loaded terminal

7.50 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

401 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 3.20 / piece)

€ 159.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: SPT 5/ 3-V-7,5-ZB

Product type: Spring-loaded terminal

Features: + push-in spring bracket

CS: 7.50 mm

No. of rows: 1

Pins per row: 3

Number of pins: 3

Series: SPT

Min. stripping length: 15 mm

Stripping length (max.): 15 mm

Connection: Spring-loaded terminal
Print

Nominal current: 41 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 41 A

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 6.00 mm²

Cross section (inflexible) (max.): 10.00 mm²

AWG (min.): 24

Connector orientation: Perpendicular (to the PCB)

AWG max.: 8

Contact material: Tin plated

Factory colour: Green

Wire protection: Yes

Manufacturer part #: 1719325

Industrial packaging: Yes

Content: 50 pc(s)

Nominal voltage: 1000 V

Width: 28.75 mm

Height: 24.30 mm

Length: 18.50 mm

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Connector orientation

Number of pins

Pins per row

Phoenix Contact 1719325 Spring-loaded terminal 6.00 mm² Number of pins 3 Green 50 pc(s)

Item no:192761

Dispatches on Thu 5 Nov

401 Set(s)Conrad Electronic

This article

Perpendicular (to the PCB)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

Phoenix Contact 1701369 Spring-loaded terminal 6.00 mm² Number of pins 1 Green 500 pc(s)

Item no:193582

Dispatches on Thu 5 Nov

5 Set(s)Conrad Electronic

Perpendicular (to the PCB)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 525.00^*

Phoenix Contact 1701934 Spring-loaded terminal 6.00 mm² Number of pins 4 Blue, Gun grey, Black, Red 50 pc(s)

Item no:193079

Dispatches on Thu 5 Nov

78 Set(s)Conrad Electronic

Perpendicular (to the PCB)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 244.99^*

Phoenix Contact 1719189 Spring-loaded terminal 6.00 mm² Number of pins 1 Green 50 pc(s)

Item no:194471

Dispatches on Tue 10 Nov

Conrad Electronic

Parallel (to the PCB)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Phoenix Contact 1719309 Spring-loaded terminal 6.00 mm² Number of pins 1 Green 50 pc(s)

Item no:193638

Dispatches on Thu 5 Nov

978 Set(s)Conrad Electronic

Perpendicular (to the PCB)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Phoenix Contact 1719312 Spring-loaded terminal 6.00 mm² Number of pins 2 Green 50 pc(s)

Item no:196173

Dispatches on Thu 5 Nov

675 Set(s)Conrad Electronic

Perpendicular (to the PCB)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Phoenix Contact 1719338 Spring-loaded terminal 6.00 mm² Number of pins 4 Green 50 pc(s)

Item no:193930

Dispatches on Thu 5 Nov

682 Set(s)Conrad Electronic

Perpendicular (to the PCB)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 214.99^*

Phoenix Contact 1719354 Spring-loaded terminal 6.00 mm² Number of pins 6 Green 50 pc(s)

Item no:194762

Dispatches on Thu 5 Nov

11 Set(s)Conrad Electronic

Perpendicular (to the PCB)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 315.00^*

Phoenix Contact 1764930 Spring-loaded terminal 6.00 mm² Number of pins 2 Red 50 pc(s)

Item no:194313

Dispatches on Thu 5 Nov

20 Set(s)Conrad Electronic

Perpendicular (to the PCB)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

Phoenix Contact 1764927 Spring-loaded terminal 6.00 mm² Number of pins 2 Blue 50 pc(s)

Item no:196730

Unavailable

Conrad Electronic

Perpendicular (to the PCB)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Documents & Downloads

Datasheet

Datasheet 192761 Phoenix Contact 1719325 Spring-loaded terminal 6.00 mm² Number of pins 3 Green 50 pc(s)

User & Safety Instructions

User & Safety Instructions 192761 Phoenix Contact 1719325 Spring-loaded terminal 6.00 mm² Number of pins 3 Green 50 pc(s)

Description

PCB terminal block, Nominal current: 41 A, Nom. voltage: 1000 V, Pitch: 7.5 mm, Number of positions: 3, Connection method: Spring-cage conn., Mounting: Soldering, Conductor/PCB connection direction: 90 °, Color: green
