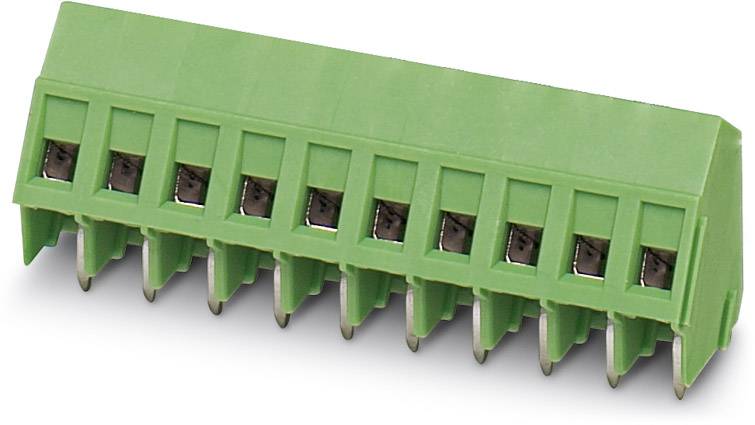

A green, pluggable printed circuit board terminal block with ten connections, against a white background.

A green, pluggable printed circuit board terminal block with ten connections, against a white background.

Image similar

Product type

Screw terminal

CS

5.08 mm

Pins per row

6

Number of pins

6

Connection

Screw terminal

Print

Datasheet (PDF)

Phoenix Contact

Dispatches on Tue 20 Oct

173 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 2.40 / piece)

€ 119.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PCB terminal block SMKDSP 1,5/ 6-5,08

Content 50 pc(s)

Technical specifications

Type: SMKDSP 1,5/ 6-5,08

Product type: Screw terminal

Features: + extractor sleeve

CS: 5.08 mm

Pins per row: 6

Number of pins: 6

Series: SMKDSP

Stripping length (max.): 7.00 mm

Connection: Screw terminal
Print

Nominal current: 17.5 A

Cross section (flexible) (min.): 0.14 mm²

Nominal current - rounded value: 17.5 A

Cross section (inflexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 1.50 mm²

Cross section (inflexible) (max.): 2.50 mm²

AWG (min.): 26

Connector orientation: At an angle (to the PCB)

AWG max.: 14

Contact material: Tin plated

Factory colour: Green

Actuation direction: At an angle (to the PCB)

Manufacturer part #: 1733619

Industrial packaging: Yes

Content: 50 pc(s)

Nominal voltage: 400 V

Width: 30.48 mm

Height: 18.80 mm

Length: 13.40 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 717226 Phoenix Contact 1733619 Screw terminal 1.50 mm² Number of pins 6 Green 50 pc(s)

User & Safety Instructions

User & Safety Instructions 717226 Phoenix Contact 1733619 Screw terminal 1.50 mm² Number of pins 6 Green 50 pc(s)

Description

PCB terminal block, Nominal current: 17.5 A, Nom. voltage: 400 V, Pitch: 5.08 mm, Number of positions: 6, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 35 °, Color: green

Description

PCB terminal block, Nominal current: 17.5 A, Nom. voltage: 400 V, Pitch: 5.08 mm, Number of positions: 6, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 35 °, Color: green
