Name: Phoenix Contact 1780507 Screw terminal 4.00 mm² Number of pins 1 Green 50 pc(s)
Brand: Phoenix Contact
SKU: 199849
Availability: InStock

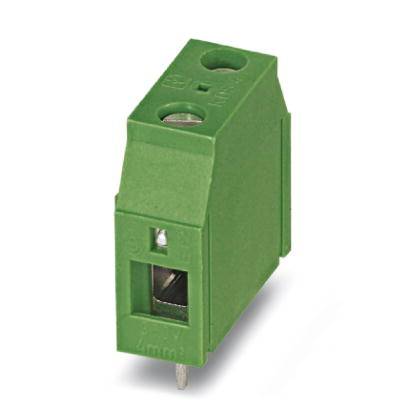

Green, rectangular electrical connector with two terminals, for use in electrical circuit installations.

Product type

Screw terminal

7.50 mm

Pins per row

Number of pins

Connection

Screw terminal

Datasheet (PDF)

Dispatches on Tue 20 Oct

28 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 2.10 / piece)

€ 104.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: KDS 4

Product type: Screw terminal

Features: + extractor sleeve

CS: 7.50 mm

No. of rows: 1

Pins per row: 1

Number of pins: 1

Series: KDS

Stripping length (max.): 8.00 mm

Connection: Screw terminal
Print

Nominal current: 41 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 41 A

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 4.00 mm²

Cross section (inflexible) (max.): 6.00 mm²

AWG (min.): 24

Connector orientation: Parallel (to the PCB)

AWG max.: 10

Contact material: Cathode copper, tin plated

Enclosure material: Polyamide

Factory colour: Green

Wire protection: Yes

Actuation direction: Perpendicular (to the PCB)

Manufacturer part #: 1780507

Industrial packaging: Yes

Content: 50 pc(s)

Nominal voltage: 320 V

Width: 23.00 mm

Height: 20.60 mm

Length: 7.50 mm

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Pins per row

Number of pins

Phoenix Contact 1780507 Screw terminal 4.00 mm² Number of pins 1 Green 50 pc(s)

Item no:199849

Dispatches on Tue 20 Oct

28 Set(s)Conrad Electronic

This article

41 A

7.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

Phoenix Contact 1701023 Screw terminal 1.50 mm² Number of pins 1 Green 50 pc(s)

Item no:717375

Dispatches on Tue 20 Oct

50 Set(s)Conrad Electronic

17.5 A

5.00 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 65.99^*

Phoenix Contact 1701094 Screw terminal 1.50 mm² Number of pins 1 Atoll Blue 50 pc(s)

Item no:788259

Dispatches on Fri 13 Nov

Conrad Electronic

17.5 A

5.00 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 65.99^*

Phoenix Contact 1704004 Screw terminal 2.50 mm² Number of pins 1 Green 50 pc(s)

Item no:586499

Dispatches on Fri 13 Nov

Conrad Electronic

24 A

5.08 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 81.99^*

Phoenix Contact 1704020 Screw terminal 10.00 mm² Number of pins 1 50 pc(s)

Item no:568200

Dispatches on Tue 20 Oct

39 Set(s)Conrad Electronic

76 A

10.00 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 174.99^*

Phoenix Contact 1704033 Screw terminal 10.00 mm² Number of pins 1 Green, Yellow 50 pc(s)

Item no:568709

Dispatches on Tue 20 Oct

10 Set(s)Conrad Electronic

76 A

10.00 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 174.99^*

Phoenix Contact 1704059 Screw terminal 10.00 mm² Number of pins 1 Green 50 pc(s)

Item no:566696

Dispatches on Tue 20 Oct

411 Set(s)Conrad Electronic

76 A

10.00 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 174.99^*

Phoenix Contact 1780015 Screw terminal 2.50 mm² Number of pins 1 Green 50 pc(s)

Item no:717128

Dispatches on Tue 20 Oct

474 Set(s)Conrad Electronic

15 A

5.08 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

Phoenix Contact 1780028 Screw terminal 2.50 mm² Number of pins 1 Green 50 pc(s)

Item no:567359

Dispatches on Thu 22 Oct

Conrad Electronic

13.5 A

5.08 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

Phoenix Contact 1780112 Screw terminal 2.50 mm² Number of pins 1 Green 50 pc(s)

Item no:788378

Dispatches on Fri 13 Nov

Conrad Electronic

6.3 A

5.08 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 209.99^*

Documents & Downloads

Datasheet

Datasheet 199849 Phoenix Contact 1780507 Screw terminal 4.00 mm² Number of pins 1 Green 50 pc(s)

User & Safety Instructions

User & Safety Instructions 199849 Phoenix Contact 1780507 Screw terminal 4.00 mm² Number of pins 1 Green 50 pc(s)

Description

PCB terminal block, Nominal current: 41 A, Nom. voltage: 320 V, Pitch: 7.5 mm, Number of positions: 1, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions!
