Name: Phoenix Contact 1790335 Spring-loaded terminal 1.50 mm² Number of pins 1 Green 250 pc(s) Carton
Brand: Phoenix Contact
SKU: 788531
Availability: InStock

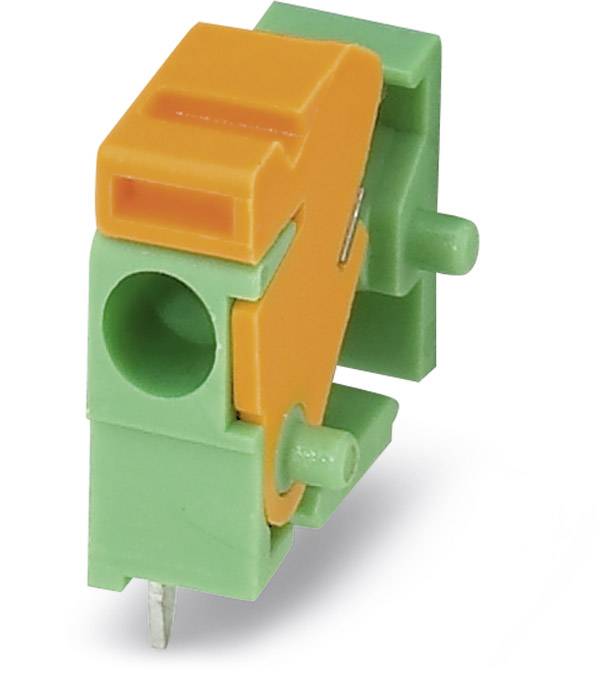

An orange-green electrical connector for electrical applications, viewed from the side, with a metal pin at the bottom for connection.

Image similar

Packaging type

Carton

Product type

Spring-loaded terminal

5.08 mm

Pins per row

Number of pins

Datasheet (PDF)

Dispatches on Wed 21 Oct

71 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 250 pc(s))

Set(s)

Total (€ 0.52 / piece)

€ 129.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Carton

Type: FFKDS/H1-5,08

Product type: Spring-loaded terminal

Features: + push-in spring bracket

CS: 5.08 mm

No. of rows: 1

Pins per row: 1

Number of pins: 1

Series: FFKDS(A)/H1

Min. stripping length: 10 mm

Stripping length (max.): 10 mm

Connection: Spring-loaded terminal
Print

Nominal current: 15 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 15 A

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 1.50 mm²

Cross section (inflexible) (max.): 1.50 mm²

AWG (min.): 24

Connector orientation: Parallel (to the PCB)

AWG max.: 16

Contact material: Copper alloy

Enclosure material: Polyamide 6.6

Factory colour: Green

Wire protection: Yes

Actuation direction: Parallel (to the PCB)

Manufacturer part #: 1790335

Industrial packaging: Yes

Content: 250 pc(s)

Nominal voltage: 320 V

Width: 16.10 mm

Height: 13.60 mm

Length: 5.08 mm

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Pins per row

Connection

Number of pins

Connector orientation

Product type

No. of rows

Phoenix Contact 1724912 Spring-loaded terminal 1.50 mm² Number of pins 2 Green 50 pc(s)

Item no:566987

Dispatches on Wed 21 Oct

71 Set(s)Conrad Electronic

13.5 A

Spring-loaded terminal

At an angle (to the PCB)

Spring-loaded terminal

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 48.99^*

Phoenix Contact 1724916 Spring-loaded terminal 1.00 mm² Number of pins 4 Green 50 pc(s)

Item no:775216

Dispatches on Mon 7 Dec

Conrad Electronic

12 A

Spring-loaded terminal

Perpendicular (to the PCB)

Spring-loaded terminal

3.81 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 95.99^*

Phoenix Contact 1724925 Spring-loaded terminal 1.50 mm² Number of pins 3 Green 50 pc(s)

Item no:568100

Dispatches on Wed 21 Oct

9 Set(s)Conrad Electronic

13.5 A

Spring-loaded terminal

At an angle (to the PCB)

Spring-loaded terminal

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Phoenix Contact 1724938 Spring-loaded terminal 1.50 mm² Number of pins 4 Green 50 pc(s)

Item no:567493

Dispatches on Wed 21 Oct

164 Set(s)Conrad Electronic

13.5 A

Spring-loaded terminal

At an angle (to the PCB)

Spring-loaded terminal

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 93.99^*

Phoenix Contact 1725120 TWIN connector 1.50 mm² Number of pins 3 Green 250 pc(s) Piece

Item no:566762

Dispatches on Wed 21 Oct

6 Set(s)Conrad Electronic

8 A

Spring-loaded terminal

TWIN connector

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 379.00^*

Phoenix Contact 1725133 TWIN connector 1.50 mm² Number of pins 4 Green 250 pc(s) Piece

Item no:566506

Dispatches on Wed 21 Oct

10 Set(s)Conrad Electronic

8 A

Spring-loaded terminal

TWIN connector

3.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 499.00^*

Phoenix Contact 1725302 Spring-loaded terminal 2.50 mm² Number of pins 2 Green 50 pc(s)

Item no:567993

Dispatches on Wed 21 Oct

1849 Set(s)Conrad Electronic

24 A

Spring-loaded terminal

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 48.99^*

Phoenix Contact 1725315 Spring-loaded terminal 2.50 mm² Number of pins 3 Green 50 pc(s)

Item no:566830

Dispatches on Fri 23 Oct

Conrad Electronic

24 A

Spring-loaded terminal

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Phoenix Contact 1725328 Spring-loaded terminal 2.50 mm² Number of pins 4 Green 50 pc(s)

Item no:568986

Dispatches on Wed 21 Oct

125 Set(s)Conrad Electronic

24 A

Spring-loaded terminal

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 93.99^*

Phoenix Contact 1725341 Spring-loaded terminal 2.50 mm² Number of pins 5 Green 50 pc(s)

Item no:717428

Dispatches on Wed 21 Oct

321 Set(s)Conrad Electronic

24 A

Spring-loaded terminal

At an angle (to the PCB)

Spring-loaded terminal

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Documents & Downloads

Datasheet

Datasheet 788531 Phoenix Contact 1790335 Spring-loaded terminal 1.50 mm² Number of pins 1 Green 250 pc(s) Carton

User & Safety Instructions

User & Safety Instructions 788531 Phoenix Contact 1790335 Spring-loaded terminal 1.50 mm² Number of pins 1 Green 250 pc(s) Carton

Description

PCB terminal block, Nominal current: 15 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 1, Connection method: Spring-cage conn., Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions!
