Buy Phoenix Contact 1914001 Spring-loaded terminal Number of pins 10 Green 1 pc(s)

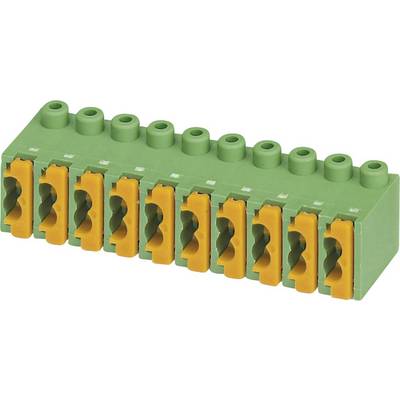

Green plug connector with ten orange terminal connections for electrical wiring.

Image similar

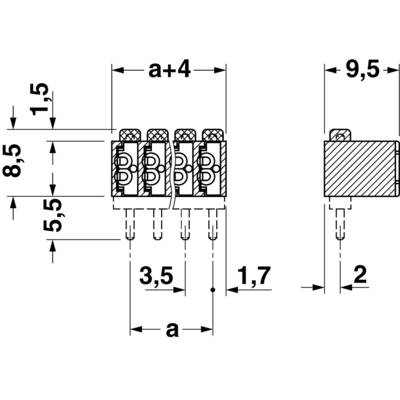

Technical drawing of an electrical connector with dimensions: width, height, and position of contact pins are specified.

1/2

Image similar

Product type

Spring-loaded terminal

3.50 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Plug

Datasheet (PDF)

45 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.09 / piece)

€

Report legal concerns

Highlights & Details

PCB terminal blocks with spring-cage double connection upto 2x0.5 mm ²

Content 1 pc(s)

Technical specifications

Insulation material group: IIIa
Insulation material type: PBT.

Type: FK-MPT 0,5/10-ST-3,5

Product type: Spring-loaded terminal

Features: + push-in spring bracket

CS: 3.50 mm

Pins per row: 10

Number of pins: 10

Series: FK-MPT

Min. stripping length: 6 mm

Stripping length (max.): 6 mm

Connection: Spring-loaded terminal
Plug

Nominal current: 4 A

Nominal current - rounded value: 4 A

Cross section (inflexible) (min.): 0.12 mm²

Cross section (inflexible) (max.): 0.50 mm²

AWG (min.): 26

Connector orientation: Parallel (to the PCB)

AWG max.: 20

Contact material: Cathode copper, tin plated

Enclosure material: Polyamide

Factory colour: Green

Wire protection: Yes

Actuation direction: Parallel (to the PCB)

Manufacturer part #: 1914001

Content: 1 pc(s)

Nominal voltage: 250 V

Width: 35.50 mm

Height: 9.50 mm

Length: 8.50 mm

Type: FK-MPT 0,5/10 ST-3,5

Nominal current (details): 4 A

Connector cross section: 0.12 - 0.5 mm²

Cross section: 0.12 - 0.5 mm²

Connection: -

Documents & Downloads

Datasheet

Datasheet 743547 Phoenix Contact 1914001 Spring-loaded terminal Number of pins 10 Green 1 pc(s)

User & Safety Instructions

User & Safety Instructions 743547 Phoenix Contact 1914001 Spring-loaded terminal Number of pins 10 Green 1 pc(s)

Description

COMBICON - PCB terminal blocks with spring-cage double connection:
Miniature connector terminal for Massive conductors.. Easy looping of potential through double-connection. High operating comfort with direct plug with release button. For Series FK-MPT ST ...- PST 1.0/...-3.5 the pin strip is needed. Plug direction parallel to the printed circuit board.
