Name: Phoenix Contact CUC-IND-C1ZNI-S/R4IE8 RJ45 connector 1421607 Plug, straight No. of pins (RJ) 8 Green 1 pc(s)
Brand: Phoenix Contact
SKU: 2136978
Availability: InStock

A silver SFP plug with a green RJ45 connector and black casing, used for network connections.

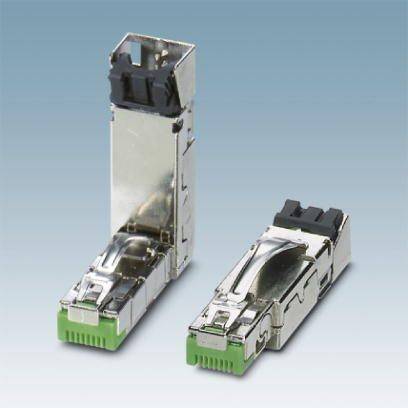

Two metal ethernet cable plugs, one in an open state, the other closed. They have green connection points.

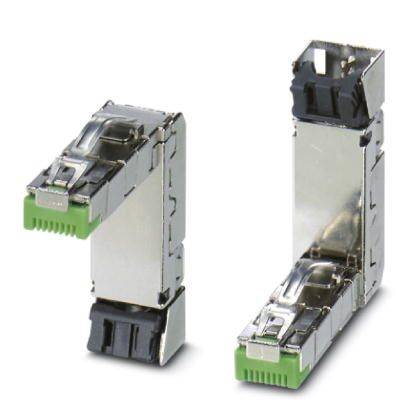

Two silver plug connectors standing at right angles to each other. Both have green and black plastic components at their ends.

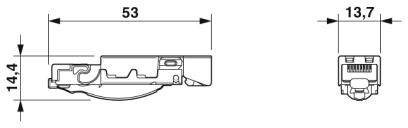

Technical drawing of a component with dimensions: Length 53 mm, Height 14.4 mm and Width 13.7 mm. Side and front views shown.

1/4

Image similar

Product type

RJ45 connector

Connector type

Plug, straight

No. of pins

Specification

CAT 5

Connector standard

RJ45

Datasheet (PDF)

Fast track dispatch on Tue 20 Oct

36 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 31.99 / piece)

€ 31.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

RJ45 connector

Our service for you

Technical specifications

Protection class: IP20
External diameter of the cable: 5 mm - 9 mm
Transfer rate 1 GBit/s
Rated current 1.75 A
Frequency range: Up to 100 MHz
Rated voltage 72 V/DC
Material contact carrier: PC
Number of cable outlets: 1
Rated voltage: 48 V
Contact resistance: 0.001 Ω (wire - IDC), 0.005 Ω (wire - IDC)
Resistance 500 MΩ

Type: CUC-IND-C1ZNI-S/R4IE8

Product type: RJ45 connector

Connector type: Plug, straight

No. of pins: 8

: CAT 5

Connector standard: RJ45

AWG max.: 24

AWG (min.): 26

Connection: IDC
Quick-connect

Weight: 13.96 g

Factory colour: Green

Content: 1 pc(s)

Contact material: Copper alloy gold plated

Material: Copper-zinc alloy
Gadolinium-Zinc

Width: 13.6 mm

Height: 14.4 mm

Length: 53 mm

RoHS-compliant: Yes

Max. temperature: +70 °C

Min. temperature: -40 °C

Cross section (flexible) (max.): 0.14 mm²

Cross section (inflexible) (max.): 0.25 mm²

Cross section (flexible) (min.): 0.14 mm²

Cross section (inflexible) (min.): 0.25 mm²

: IP20

Number of pins: 8

: Other

: TRUE

: V0

: FALSE

UKCA: not relevant
