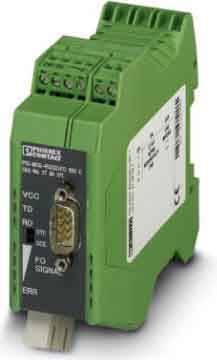

Phoenix Contact Fiber media converter PSI-MOS-RS232/FO1300 E FO converter
EAN:
Part number:
Item no:
Product type
Fiber media converter
Mounting type
DIN rail
Enclosure material
PA 6.6-FR
Connection
COMBICON
D-SUB-9
SC-Duplex
Functions (FO)
FO converter
Datasheet (PDF)
Number
Total (€ 1,343.70 / piece)
€ 1,343.70
plus VAT.
FO converters PSI-MOS-RS232/FO1300 E
Technical specifications
- Product type
Fiber media converter
- Mounting type
DIN rail
- Manufacturer
Phoenix Contact
- Enclosure material
PA 6.6-FR
- Connection
COMBICON
D-SUB-9
SC-Duplex
- Functions (FO)
FO converter
- Supply voltage (num.)
24 V DC
- Supply current
100 mA
- Channels
1
- Interfaces
RS485
- Protection class
IP20
- Factory colour
Green
- Operating temperature (min.)
-20 °C
- Operating temperature (max.)
+60 °C
- Compatible with
Fibre opics
- Manufacturer part #
2708588
- Content
1 pc(s)
- Connector type
Screw-lock latch
Plug, straight
35.2
104.53 mm
105 mm
Other
DC
TRUE
18-32 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 772298 Phoenix Contact Fiber media converter PSI-MOS-RS232/FO1300 E FO converter
User & Safety Instructions
User & Safety Instructions 772298 Phoenix Contact Fiber media converter PSI-MOS-RS232/FO1300 E FO converter
Description
Fiber optic converter with integrated optical diagnostics, alarm contact, for RS-232 interfaces up to 115.2 kbps, termination device with one fiber optic interface (SC duplex), 1300 nm, for fiberglass cable
