Phoenix Contact Pin housing PCB GMSTBV Total number of pins 4 Contact spacing: 7.62 mm 1766589 50 pc(s)

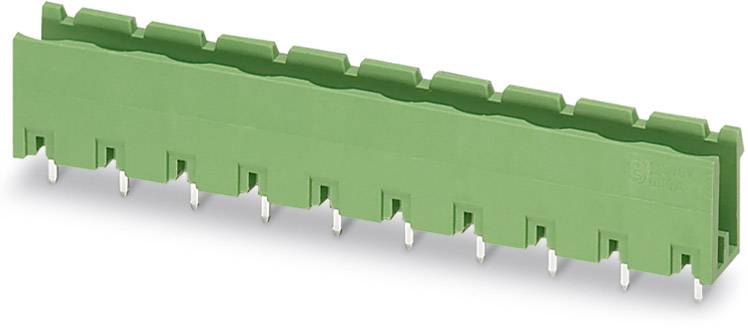

Green, rectangular electrical connector with multiple metal pins, used for connecting circuit boards in electronic devices.
Image similar
Product type
Pin housing PCB
Connector type
Plug, vertical mount
No. of rows
1
Series
GMSTBV
CS
7.62 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 9 Nov
115 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 1.08 / piece)
€ 53.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Base strip GMSTBV 2,5/ 4-G-7,62

  • Content: 50 pc(s)
  • No. of rows: 1
  • Total number of pins: 4

Technical specifications

Product type

Pin housing PCB

Connector type

Plug, vertical mount

No. of rows

1

Connector system

wire-to-board

Series

GMSTBV

Features

lateral opening

CS

7.62 mm

Pins per row

4

Total number of pins

4

Width

28.68 mm

Nominal current

12 A

Nominal current - rounded value

12 A

Content

50 pc(s)

Dim

(L x W x H) 8.60 x 28.68 x 15.90 mm

Connection

Print

Manufacturer part #

1766589

Factory colour

Green

Industrial packaging

Yes

Contact material

Tin plated

Nominal voltage

630 V

Height

15.90 mm

Length

8.60 mm

Connector orientation

Perpendicular (to the PCB)

Type

GMSTBV 2,5/ 4-G-7,62

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 569411 Phoenix Contact Pin housing PCB GMSTBV Total number of pins 4 Contact spacing: 7.62 mm 1766589 50 pc(s)

User & Safety Instructions

User & Safety Instructions 569411 Phoenix Contact Pin housing PCB GMSTBV Total number of pins 4 Contact spacing: 7.62 mm 1766589 50 pc(s)

Description

Header, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 4, Pitch: 7.62 mm, Color: green, Contact surface: Tin, Assembly: Soldering
