Phoenix Contact Pin housing PCB MSTBA Total number of pins 2 Contact spacing: 5 mm 1757475 250 pc(s)

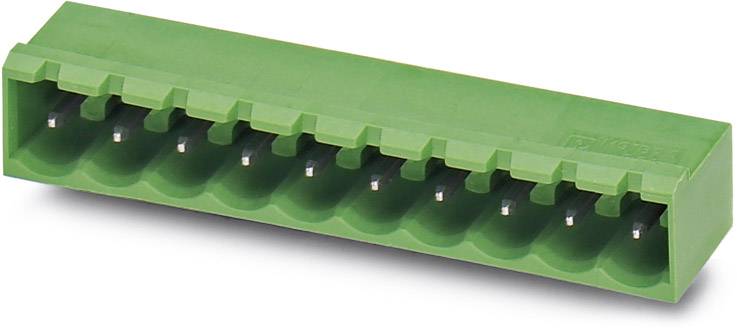

Green connector with ten terminals, side view. Suitable for electronic circuits and connections.
Image similar
Product type
Pin housing PCB
Connector type
Plug, horizontal mount
No. of rows
1
Series
MSTBA
CS
5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Fri 6 Nov
98 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 250 pc(s))
Total (€ 0.46 / piece)
€ 114.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Base strip MSTBA 2,5/ 2-G

  • Content: 250 pc(s)
  • No. of rows: 1
  • Total number of pins: 2

Technical specifications

Product type

Pin housing PCB

Connector type

Plug, horizontal mount

No. of rows

1

Connector system

wire-to-board

Series

MSTBA

Features

lateral opening

encodable

CS

5 mm

Pins per row

2

Total number of pins

2

Width

12.10 mm

Nominal current

12 A

Nominal current - rounded value

12 A

Content

250 pc(s)

Dim

(L x W x H) 7.00 x 12.10 x 12.00 mm

Connection

Print

Manufacturer part #

1757475

Factory colour

Green

Industrial packaging

Yes

Contact material

Tin plated

Nominal voltage

320 V

Height

12.00 mm

Length

7.00 mm

Connector orientation

Parallel (to the PCB)

Type

MSTBA 2,5/ 2-G

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 569337 Phoenix Contact Pin housing PCB MSTBA Total number of pins 2 Contact spacing: 5 mm 1757475 250 pc(s)

User & Safety Instructions

User & Safety Instructions 569337 Phoenix Contact Pin housing PCB MSTBA Total number of pins 2 Contact spacing: 5 mm 1757475 250 pc(s)

Description

Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 2, Pitch: 5 mm, Color: green, Contact surface: Tin, Assembly: Soldering
