Name: Phoenix Contact PLC-RPT-24DC/21/EX Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 1 change-over
Brand: Phoenix Contact
SKU: 2225764
Availability: InStock

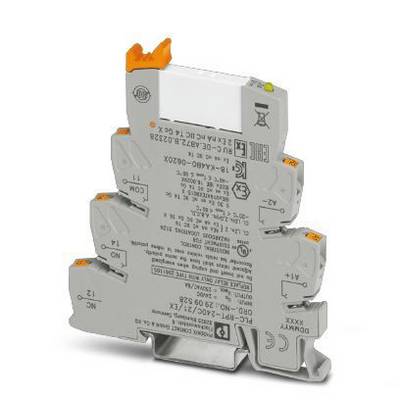

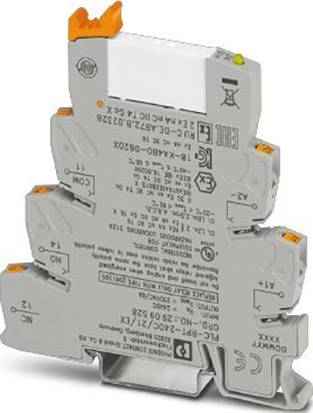

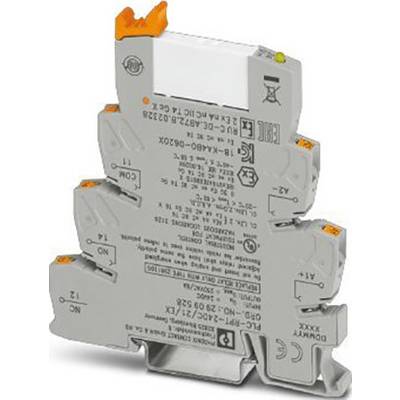

A grey electronic component with connection terminals and orange levers, used in electronic circuits.

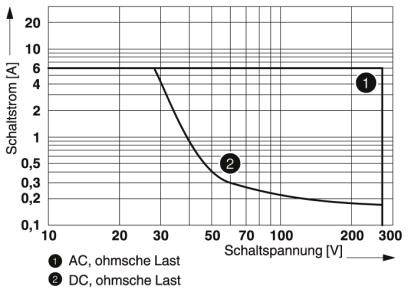

Graph shows switching current [A] vs. switching voltage [V] with curves for AC and DC resistive load. Trend: Current decreases with increasing voltage.

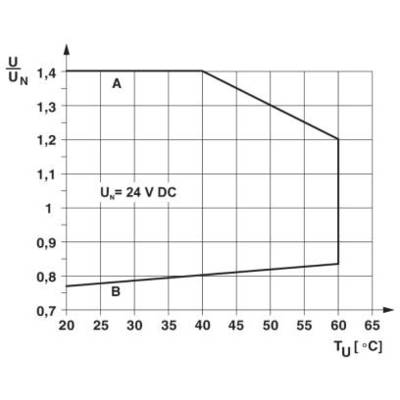

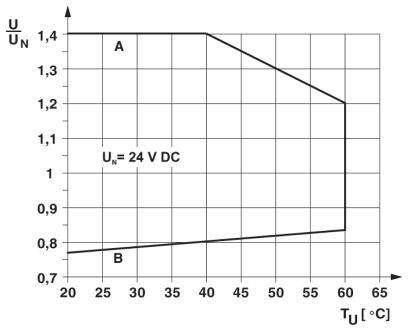

Diagram shows voltage change: Axis U/UN (0.6 to 1.4) against temperature TU (20°C to 65°C). Two lines A and B mark the change at UN = 24 V DC.

Circuit diagram of a relay with two coil terminals (A1, A2) and three switching contacts (11, 12, 14). Diode symbol present.

1/4

Product type

Relay component

Contact type

1 change-over

Nominal voltage

24 V DC

Switching voltage (max.)

250 V DC/AC

Switching current (max.)

6 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

552 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 16.50 / piece)

€ 164.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Power loss at nominal condition 0.22 W.
Maximum switching voltage: 250 V AC/DC (for voltages greater than 250 V (L1, L2, L3) between the same terminals of adjacent modules, the PLC-ATP separator plate must be set. Potential bridging is then performed with FBST 8-PLC...or...FBST 500...)
Minimum switching voltage 5 V (at 100 mA)
Switching current minimum: 10 mA (at 12 V)
Inrush current maximum 10 A (4 s)
Switch-off power (resistive load) maximum:
140 W (AT 24 V DC)
20 W (AT 48 V DC)
18 W (AT 60 V DC)
23 W (AT 110 V DC)
40 W (AT 220 V DC)
1500 VA (AT 250 V AC)
Switching capacity:
2 A (AT 24 V, DC13)
0.2 A (AT 110 V, DC13)
0.1 A (AT 220 V, DC13)
3 A (AT 24 V, AC15)
3 A (AT 120 V, AC15)
3 A (AT 230 V, AC15)
All mounting positions permitted
Mounting instructions: Can be aligned without distance
Wire stripping length: 8 mm
Conductor cross-section rigid: 0.14 mm² ... 2.5 mm²
Conductor cross-section flexible: 0.14 mm² ... 2.5 mm²
Conductor cross-section AWG: 26 ... 14
Over voltage category III

Product type: Relay component

Type: PLC-RPT-24DC/21/EX

Connection: Push-in connector

Response time: 5 ms

Fall time: 8 ms

Contact type: 1 change-over

Contact material: AgSnO

Nominal voltage: 24 V DC

Switching voltage (max.): 250 V DC/AC

Switching current (max.): 6 A

Max. switching capacity: 1500 VA

Durability: 2x 10⁷ operations

Coil voltage rating: 0.22 W

Features: + LED

: IP20

Max. temperature: +60 °C

Min. temperature: -20 °C

Length: 94 mm

Width: 6.2 mm

Height: 80 mm

Dim: (L x W x H) 94 x 6.2 x 80 mm

Content: 10 pc(s)

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Nominal voltage

Switching current (max.)

Switching voltage (max.)

Contact type

Connection

Contact material

Phoenix Contact PLC-RPT-24DC/21/EX Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 1 change-over 10 pc(s)

Item no:2225764

Dispatches on Mon 9 Nov

552 Set(s)Conrad Electronic

This article

24 V DC

6 A

250 V DC/AC

1 change-over

Push-in connector

AgSnO

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 164.99^*

Phoenix Contact PLC-RPT- 24DC/21/MS Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 1 change-over 1 pc(s)

Item no:2225768

Fast track dispatch on Thu 5 Nov

26 Piece(s)Conrad Electronic

24 V DC

6 A

250 V DC/AC

1 change-over

Push-in connector

AgSnO

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 19.99^*

Phoenix Contact PLC-RPT- 24UC/21/MS Relay component Nominal voltage: 24 V DC/AC Switching current (max.): 6 A 1 change-over Piece 1 pc(s)

Item no:2225769

Fast track dispatch on Thu 5 Nov

2 Piece(s)Conrad Electronic

24 V DC/AC

6 A

250 V DC/AC

1 change-over

Push-in connector

AgSnO

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 29.99^*

Phoenix Contact PLC-RPT-120UC/21-21AU Relay component Nominal voltage: 120 V AC Switching current (max.): 50 mA 2 change-overs Piece 1 pc(s)

Item no:2209949

Fast track dispatch on Thu 5 Nov

1 Piece(s)Conrad Electronic

120 V AC

50 mA

30 V AC

2 change-overs

Push-in connector

AgNi + hard gold plating

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 32.99^*

Phoenix Contact DEK-REL- 5/I/1 Relay component Nominal voltage: 5 V DC/AC Switching current (max.): 3 A 1 maker Piece 1 pc(s)

Item no:2225813

Unavailable

8 Piece(s)Conrad Electronic

5 V DC/AC

3 A

250 V AC

1 maker

Screws

AgNi + hard gold plating

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact EMG 17-REL/SG-B 24/21/M Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 1 change-over Piece 1 pc(s)

Item no:2225814

Unavailable

6 Piece(s)Conrad Electronic

24 V DC

6 A

250 V DC/AC

1 change-over

Screws

AgSnO

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact PLC-RPT- 12DC/ 1IC/ACT Relay component Nominal voltage: 12 V DC Switching current (max.): 6 A 1 maker Piece 1 pc(s)

Item no:2209100

Unavailable

Conrad Electronic

12 V DC

6 A

250 V DC/AC

1 maker

Push-in connector

AgSnO<sub>2</sub>

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact PLC-RPT- 24DC/ 1/MS/ACT Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 1 maker Piece 1 pc(s)

Item no:2225771

Unavailable

Conrad Electronic

24 V DC

6 A

250 V DC/AC

1 maker

Push-in connector

AgSnO

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact PLC-RPT- 24DC/ 1ICT/ACT Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 1 maker Piece 1 pc(s)

Item no:2209098

Unavailable

Conrad Electronic

24 V DC

6 A

250 V DC/AC

1 maker

Push-in connector

AgSnO<sub>2</sub>

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact PLC-RPT- 24DC/21AU/MS Relay component Nominal voltage: 24 V DC Switching current (max.): 50 mA 1 change-over 1 pc(s)

Item no:2225770

Unavailable

Conrad Electronic

24 V DC

50 mA

30 V AC

1 change-over

Push-in connector

AgSnO + gold plating

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2225764 Phoenix Contact PLC-RPT-24DC/21/EX Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 1 change-over

User & Safety Instructions

User & Safety Instructions 2225764 Phoenix Contact PLC-RPT-24DC/21/EX Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 1 change-over

Description

PLC INTERFACE, consisting of 6.2 mm basic rail mounting terminal with push-in connection and pluggable miniature relay with 6A power contact, 1-changeover contact, input voltage 24 V FC Approved according to ATEX/IECEx (Zone 2) and Ex-Zone Class I, Div. 2.
