TRU COMPONENTS TC-FY-41F-2 230V Industrial relay Nominal voltage: 230 V AC Switching current (max.): 6 A 1 breaker, 1 ma
EAN:
Part number:
Item no:
Product type
Industrial relay
Contact type
1 breaker
1 maker
Nominal voltage
230 V AC
Switching current (max.)
6 A
Type
TC-FY-41F-2 230V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Highlights & Details

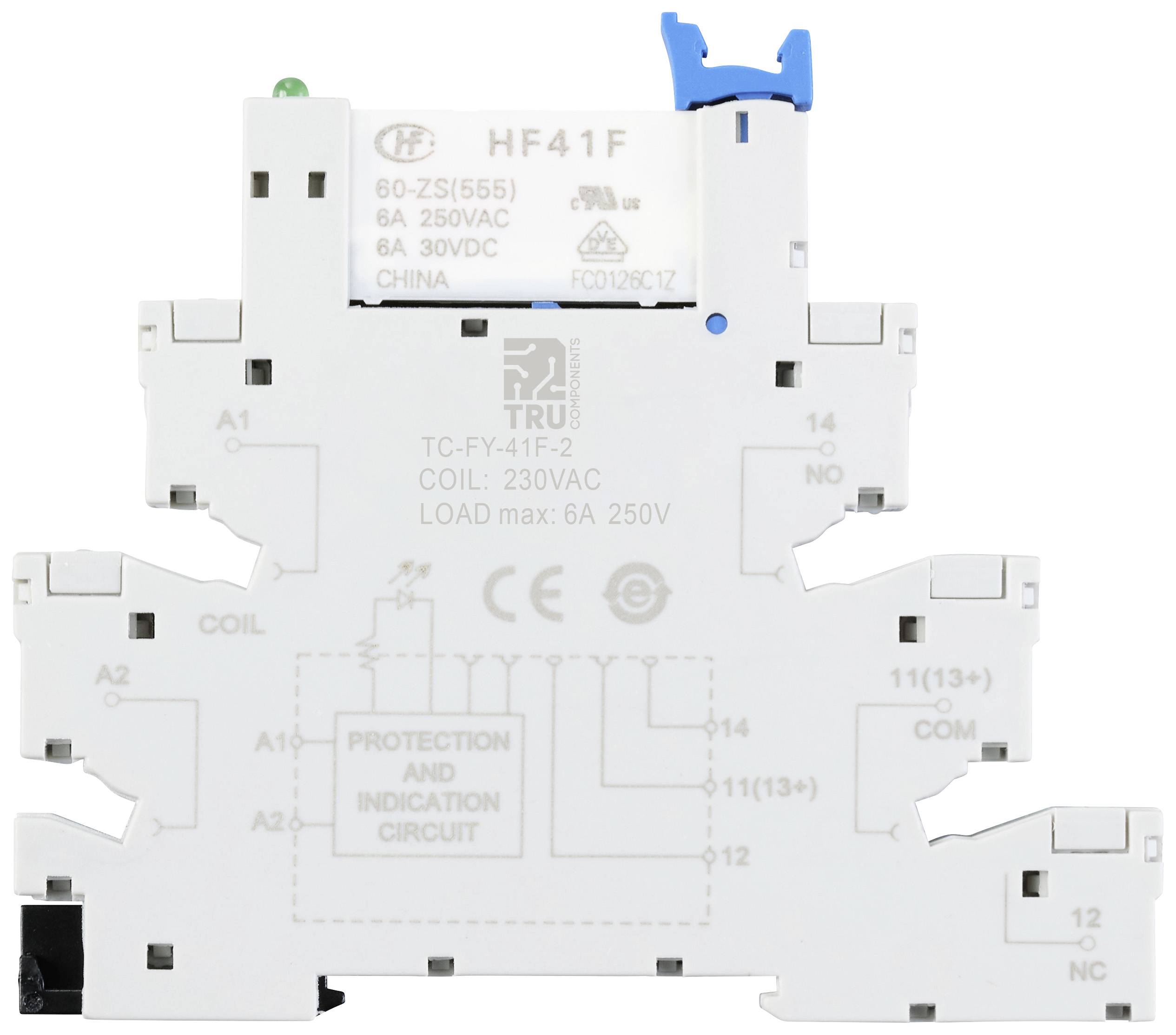

TRU COMPONENTS TC-FY-41F-2 230V Industrial relay 230 V
- 6 A rated operating current
- 1 NO, 1 NC contact
- Compact size, only 6.2 mm thick

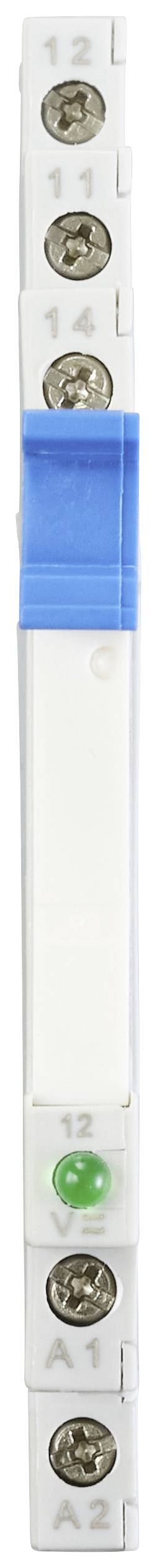

- LED indicator turns on when the relay is energized
- Protection circuit

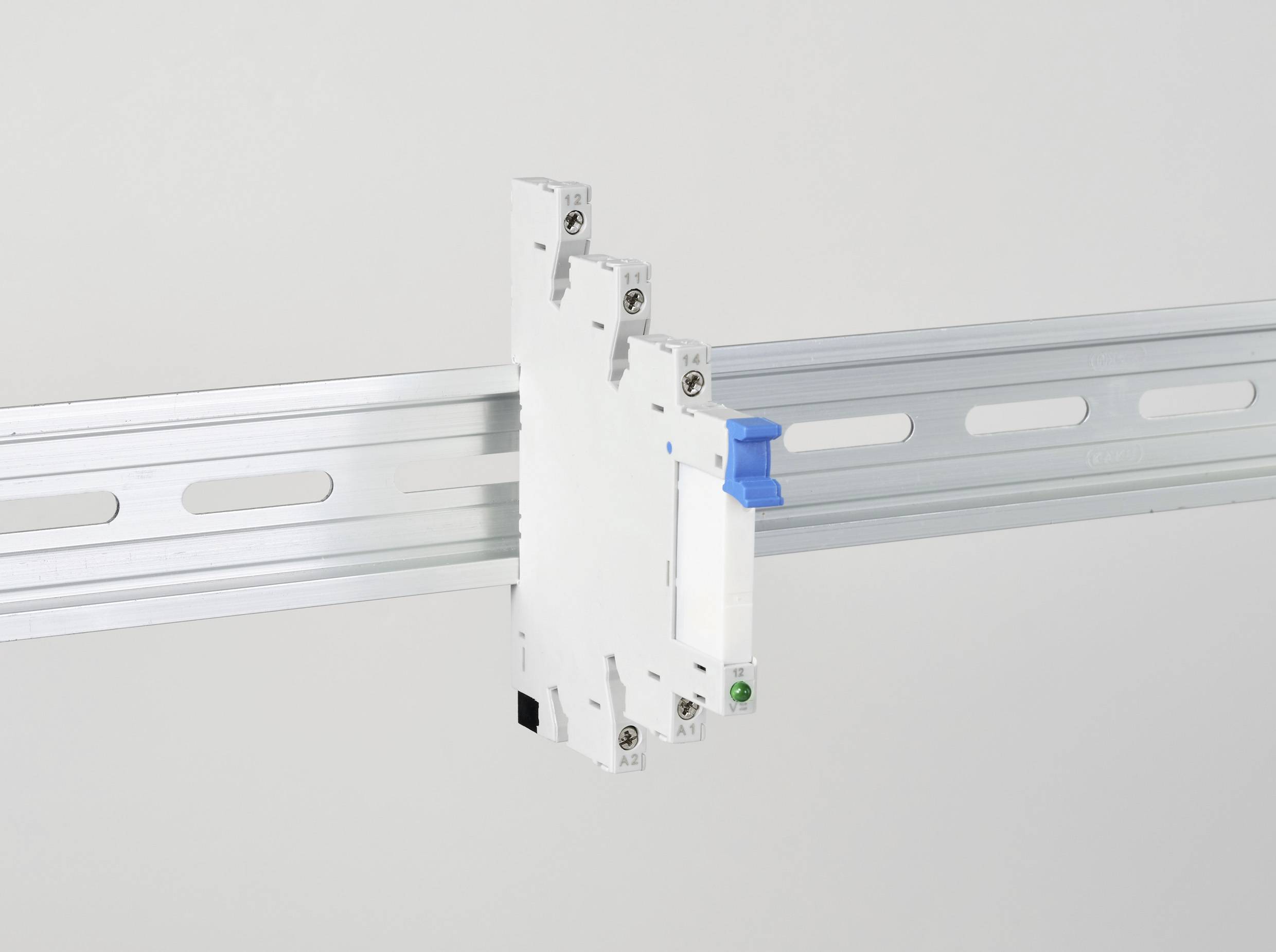

- DIN rail mountable (35 mm width)
Our service for you
Technical specifications
- Suitable cable: 0.2 - 2.5mm²
- Product type
Industrial relay
- Type
TC-FY-41F-2 230V
- Connection
Screw terminal
- Factory colour
Black
- Contact type
1 breaker
1 maker
- Nominal voltage
230 V AC
- Switching current (max.)
6 A
- Electrical lifespan
1 x 100000 operations
- Features
+ LED
- Max. temperature
50 °C
- Min. temperature
-20 °C
- Length
97.5 mm
- Width
6.2 mm
- Height
77.5 mm
- Dim
(L x W x H) 97.5 x 6.2 x 77.5 mm
- Content
1 pc(s)
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2612239 TRU COMPONENTS TC-FY-41F-2 230V Industrial relay Nominal voltage: 230 V AC Switching current (max.): 6 A 1 breaker, 1 ma
User & Safety Instructions
User & Safety Instructions 2612239 TRU COMPONENTS TC-FY-41F-2 230V Industrial relay Nominal voltage: 230 V AC Switching current (max.): 6 A 1 breaker, 1 ma
Description
TRU COMPONENTS Industrial relays with a nominal voltage of 230 V. The relay has a compact design with only 6.2 mm thickness.
