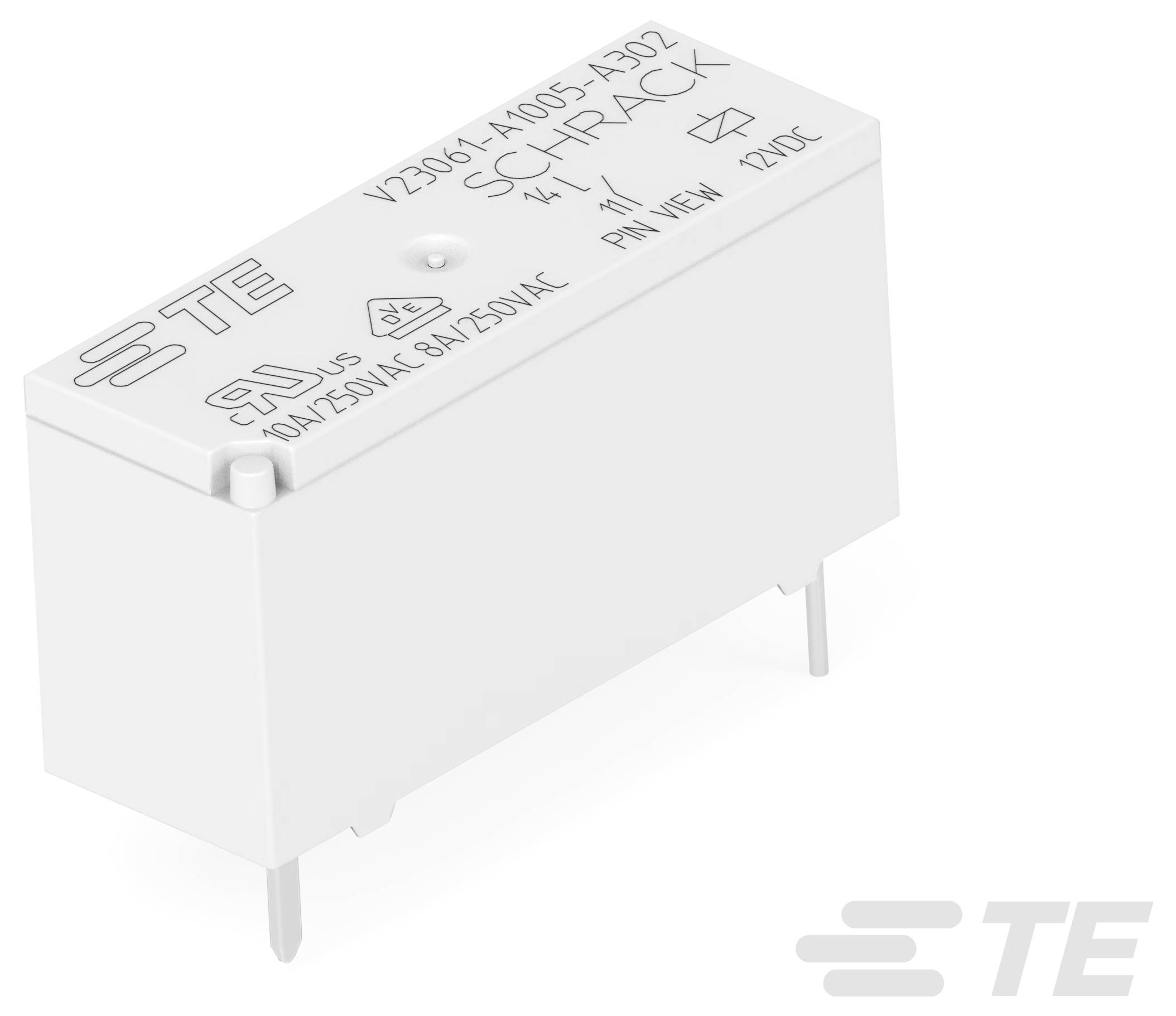

TE Connectivity V23061A1005A302 Industrial relay Nominal voltage: 12 V DC 1 maker Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Industrial relay
Contact type
1 maker
Nominal voltage
12 V DC
Type
V23061A1005A302
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
14-day return policy included
Highlights & Details
TE Connectivity V23061A1005A302 Industrial relay Nominal voltage: 12 V DC 1 maker Piece 1 pc(s)
Our service for you
Technical specifications
- Type of relay mounting: PCB
- sealing class: RTIII
- insulation creep current class (mm): 5.5 – 8
- contact cut-off current (A): 8
- contact switch-on current (A): 10
- contact limit current (A): 8
- contact limit current (A): 8
- contact numbers of the poles: 1
- magnet system: Monostable, DC
- Packaging type
Piece
- Product type
Industrial relay
- Type
V23061A1005A302
- Connection
THT
- Contact type
1 maker
- Contact material
AgSnO2
- Nominal voltage
12 V DC
- Creepage distance (coil/clips)
8 mm
- Resistance (coil)
652 Ω
- Coil voltage rating
221 mW
- Features
Washable (RT III)
- Length
28.6 mm
- Width
10 mm
- Dim
(L x W) 28.6 mm x 10 mm
- Content
1 pc(s)
- Weight
11 g
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2272747 TE Connectivity V23061A1005A302 Industrial relay Nominal voltage: 12 V DC 1 maker Piece 1 pc(s)
