Phoenix Contact Socket housing PCB ICV Total number of pins 6 Contact spacing: 5.08 mm 1785984 50 pc(s)

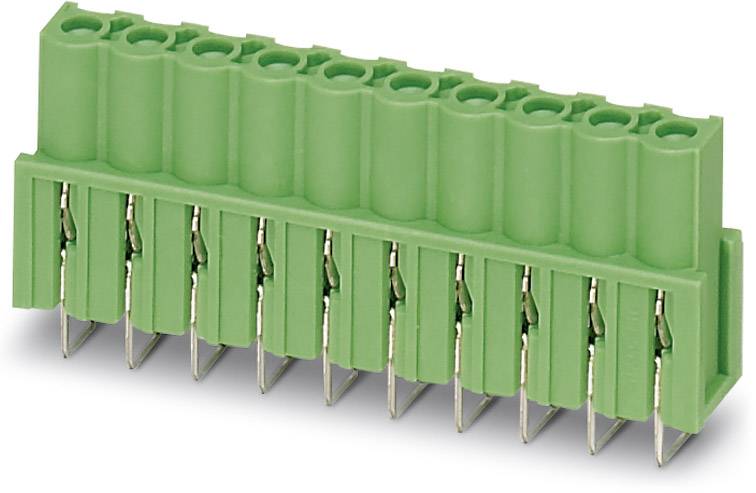

Green connector with ten metal pins, used in electronic devices for connecting cables and circuits.
Image similar
Product type
Socket housing PCB
Connector type
Socket, vertical vertical
No. of rows
1
Series
ICV
CS
5.08 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
7 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 2.90 / piece)
€ 144.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 7 Set(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Base strip ICV 2,5/ 6-G-5,08

  • Content: 50 pc(s)
  • No. of rows: 1
  • Total number of pins: 6

Technical specifications

Product type

Socket housing PCB

Connector type

Socket, vertical vertical

No. of rows

1

Connector system

wire-to-board

Series

ICV

Features

for touch-safe outputs

CS

5.08 mm

Pins per row

6

Total number of pins

6

Width

32.48 mm

Nominal current

12 A

Nominal current - rounded value

12 A

Content

50 pc(s)

Dim

(L x W x H) 10.20 x 32.48 x 22.60 mm

Connection

Print

Manufacturer part #

1785984

Factory colour

Green

Industrial packaging

Yes

Contact material

Tin plated

Nominal voltage

320 V

Height

22.60 mm

Length

10.20 mm

Connector orientation

Perpendicular (to the PCB)

Type

ICV 2,5/ 6-G-5,08

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 569462 Phoenix Contact Socket housing PCB ICV Total number of pins 6 Contact spacing: 5.08 mm 1785984 50 pc(s)

User & Safety Instructions

User & Safety Instructions 569462 Phoenix Contact Socket housing PCB ICV Total number of pins 6 Contact spacing: 5.08 mm 1785984 50 pc(s)

Description

Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 6, Pitch: 5.08 mm, Color: green, Contact surface: Tin, Assembly: Soldering
