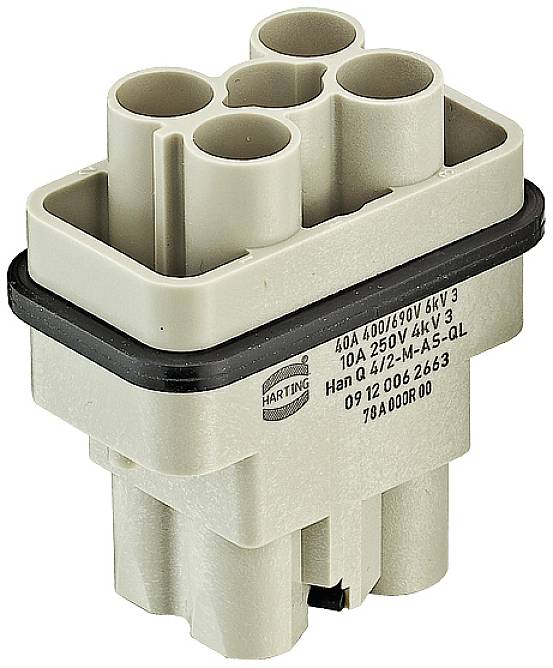

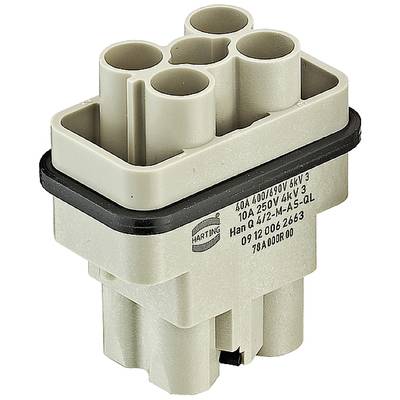

Pin insert 09120062665 HARTING Content: 1 pc(s) Pin inset
EAN:
Part number:
Item no:
Product type
Pin inset
Type
09120062665
Manufacturer part #
09120062665
Factory colour
Pebble grey (RAL 7032)
Connection
Axial screw terminal
Datasheet (PDF)
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
Highlights & Details
Pin insert
Our service for you
Technical specifications
- Net weight: 44.38 g
- Size: Han-Compact
- Rated current: 40 A
- Number of contacts: 4
- Wire cross-section: 2.5 ... 6 mm²
- Gender: Pin
- Plug-in cycles: ≥ 500
- Tightening torque: 1.8 Nm
- Rated voltage conductor-earth: 400 V
- Rated voltage conductor-conductor: 690 V
- Rated surge voltage: 6 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 0.3 mΩ
- Pollution degree: 3
- additional contacts: + 2 additional control contacts
- Type
09120062665
- Product type
Pin inset
- Manufacturer part #
09120062665
- Factory colour
Pebble grey (RAL 7032)
- Connection
Axial screw terminal
- Total no. of pins
+ PE
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- Leading contact (PE)
Yes
