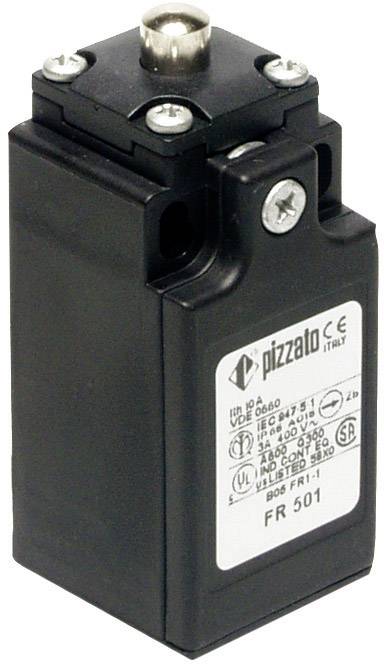

Pizzato Elettrica FR 501-M2 FR 501-M2 Limit switch 250 V AC 6 A Tappet momentary IP67 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.01
3
6% = € 0.61
€ 10.40
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.01 / piece)
€ 11.01
plus VAT.
Technical specifications
- B10d - value according to EN ISO 13849-1: 40 million cycles
- Product type
Limit switch
- Connection
Screws
- Operation type
Tappet
- Switching voltage
250 V AC
- Switching current (max.)
6 A
- Contact type
1 maker
1 breaker
- Contact material
Ag
- Functions
momentary
- Actuating force
25 N
IP67
- Thread size
M20
- Durability
40 million cycles
- Material
Plastic
- Width
30.8 mm
- Type
FR 501-M2
- Content
1 pc(s)
- Dim
(W x H x D) 30.8 x 72.9 x 30.8 mm
- RoHS-compliant
Yes
- Height
72.9 mm
- Depth
30.8 mm
- Switching voltage
250 V AC
- Switching current
6 A
- Actuating force
25 N
- Temperature range
-25 - +80 °C
- Casing
Glass fibre reinforced polymer
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 700829 Pizzato Elettrica FR 501-M2 FR 501-M2 Limit switch 250 V AC 6 A Tappet momentary IP67 1 pc(s)
User & Safety Instructions
User & Safety Instructions 700829 Pizzato Elettrica FR 501-M2 FR 501-M2 Limit switch 250 V AC 6 A Tappet momentary IP67 1 pc(s)
Description
When planning machinery and equipment, monitoring the many necessary safety and security measures is of great importance. Machines are required, amongst other things, to be safe and efficient. This can be achieved at a very high level with the product range from Pizzato.
Hints
Approvals: CE, IMQ, UL, CCC, EZU.
