Posital Fraba Absolute Rotary encoder 1 pc(s) UCD-S101B-0012-3A70-PRL Magnetic Square

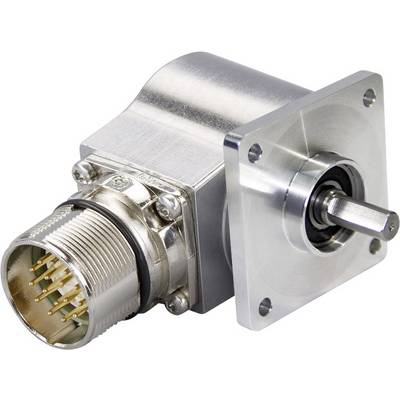

A metallic industrial rotary encoder with a cylindrical connector plug and a protruding shaft.
Image similar
Product type
Rotary encoder
Model
Absolute
Min. operating voltage
4.5 V DC
Max. operating voltage
30 V DC
Connector
M23 plug (12-pin)
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 11 Nov
1 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 555.00 / piece)
€ 555.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 1 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

Product type

Rotary encoder

Type

UCD-S101B-0012-3A70-PRL

Model

Absolute

Technology

Magnetic

Min. operating voltage

4.5 V DC

Max. operating voltage

30 V DC

Operating voltage

4.5 - 30 V DC

Connector

M23 plug (12-pin)

Orientation (connectors)

Radial

Impulses per cycle (max.)

4096

Sleeve type

Square

Flange length

50.8 mm

Flange width

50.8 mm

Shaft type

Solid shaft

Flat on one end

Shaft depth

16 mm

Shaft Ø

9.52 mm

Material (sleeve)

Aluminium

Material (shaft)

Stainless steel V2A

Enclosure material

Steel

Accuracy

0.09°

Min. temperature

-40 °C

Max. temperature

+85 °C

IP65

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1638976 Posital Fraba Absolute Rotary encoder 1 pc(s) UCD-S101B-0012-3A70-PRL Magnetic Square

User & Safety Instructions

User & Safety Instructions 1638976 Posital Fraba Absolute Rotary encoder 1 pc(s) UCD-S101B-0012-3A70-PRL Magnetic Square
