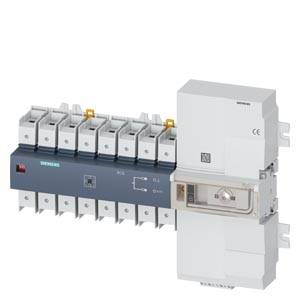

Power switch Black 4-pin 100 A 415 V AC Siemens 3KC64302TA200TA3
Product type
Power switch
Nominal voltage
415 V AC
Number of pins
4
Nominal current - rounded value
100 A
Operating voltage
415 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1,415.00 / piece)
€ 1,415.00
incl. VAT
14-day return policy included
Technical specifications
- Protection class: IP20
- Isolation voltage: 800 V
- Ambient temperature: -20 °C to +70 °C
- Surge voltage resistance: 6 kV
- Mechanical life: 10000
- Power loss: 16 W
- Design of the electrical connection: frame clamp
- Mounting type: screw and DIN rail mounting 35 mm
- Product type
Power switch
- Operating voltage
415 V AC
- Nominal voltage
415 V AC
- Factory colour
Black
- Number of pins
4

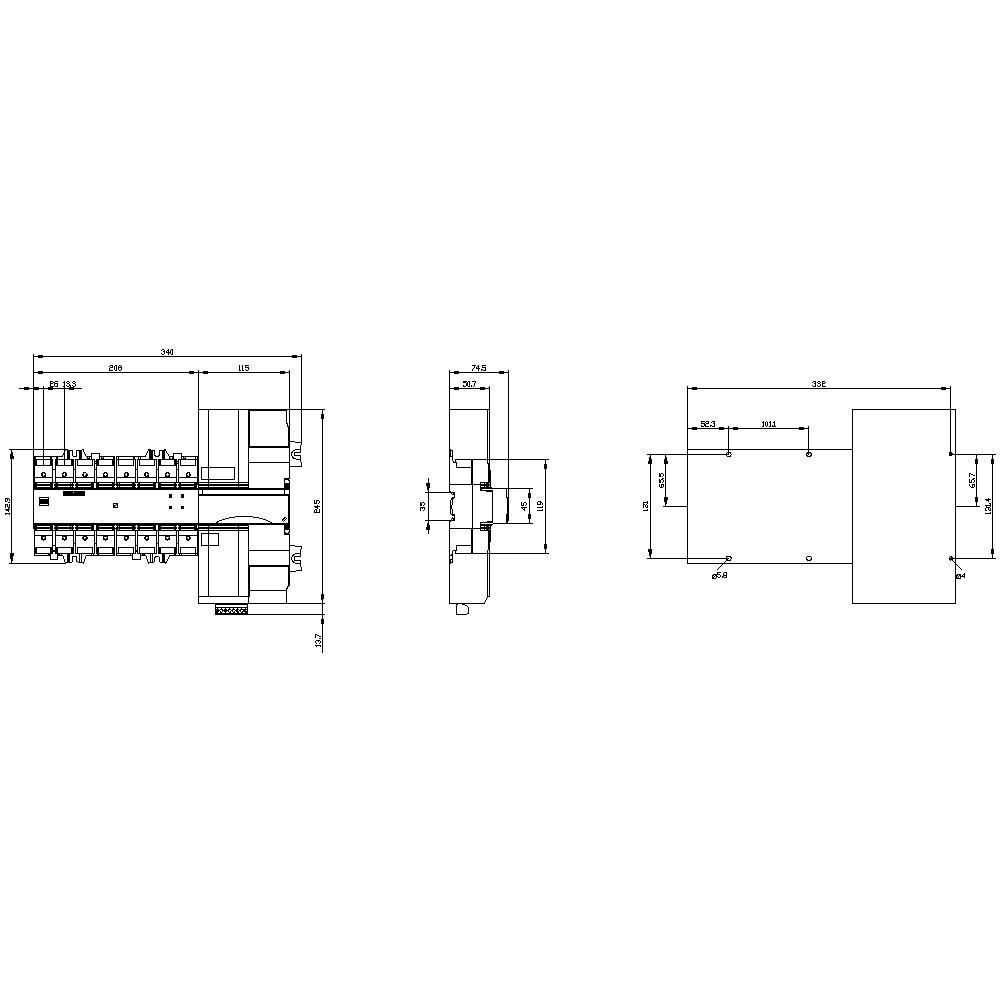

- Dim
(W x H x D) 340 x 245 x 73.5 mm
- Nominal current
100 A
- Nominal current - rounded value
100 A
- Type
Motor drive
- Width
340 mm
- Height
245 mm
- Depth
73.5 mm
0
0
100 A
4
IP00
6
TRUE
TRUE
Frame clamp
FALSE
Long turning handle
TRUE
TRUE
TRUE
55 kW
4 kA
Black
FALSE
FALSE
FALSE
TRUE
TRUE
415 V
FALSE
FALSE
Built-in device fixed built-in technique
100 A
100
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1743799 Power switch Black 4-pin 100 A 415 V AC Siemens 3KC64302TA200TA3
User & Safety Instructions
User & Safety Instructions 1743799 Power switch Black 4-pin 100 A 415 V AC Siemens 3KC64302TA200TA3
Description
SENTRON, ATE, transfer switching equipment 3KC, automatically, ATSE, 4- pole, Iu: 250 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 200 A, Ie at AC-23 A at 690 V: 125 A, screw mounting, motorized operating mechanism, at the right end, long handle, busbar connection
