PROFAN Technology P2123HSL Axial fan 230 V AC 159.6 m³/h (L x W x H) 120 x 120 x 38 mm

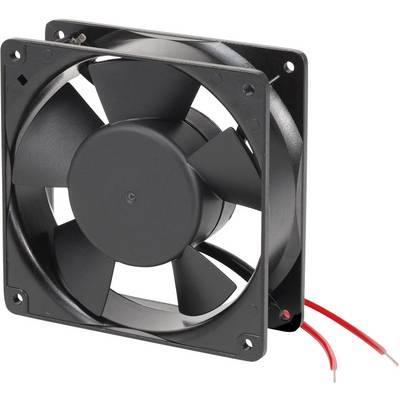

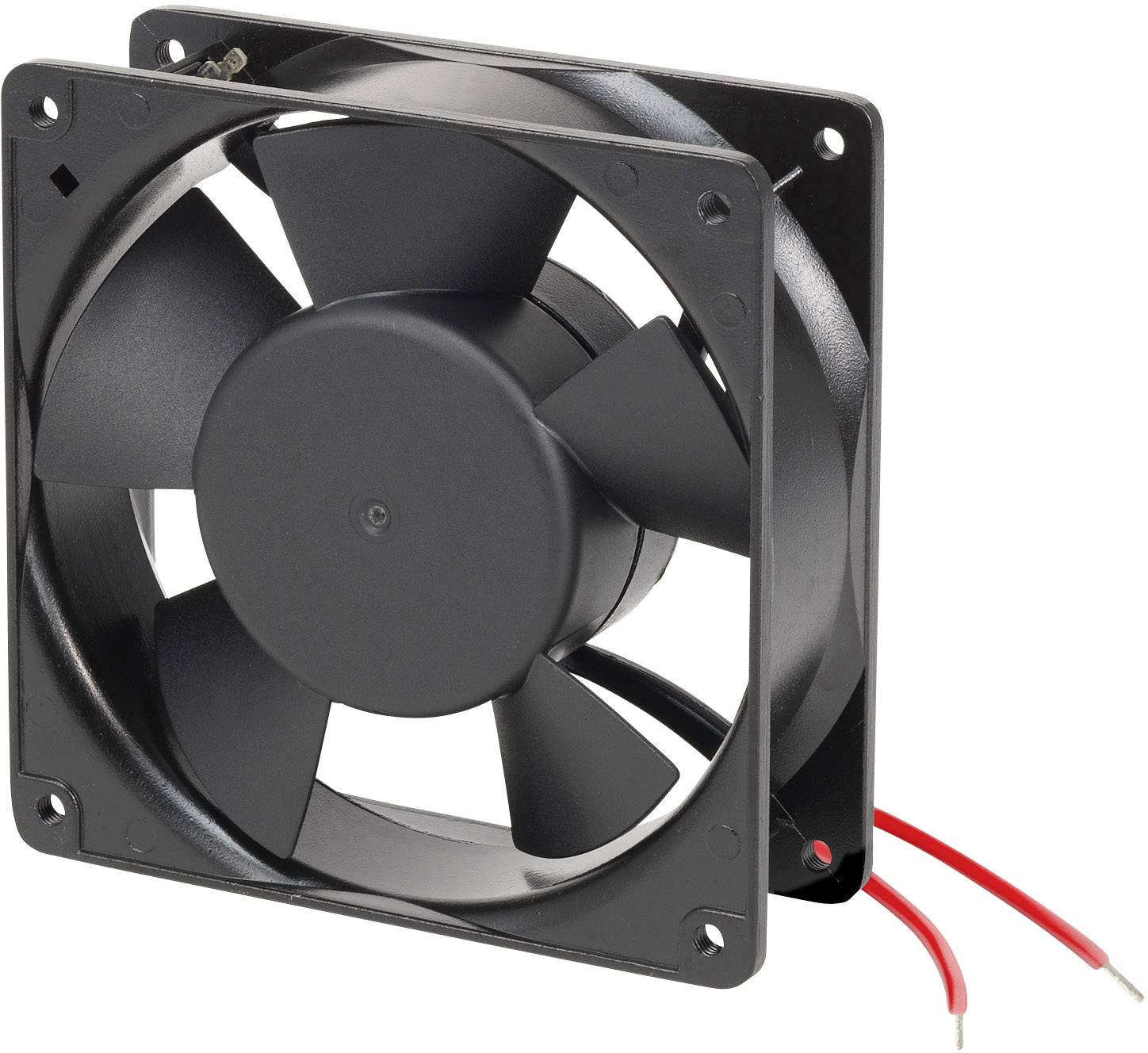

A black fan with four blades, built into a square frame, with two red wires protruding.
Image similar
Product type
Axial fan
Nominal voltage
230 V AC
Power
20 W
Type of bearing
Plain bearing
Air flow rate
159.6 m³/h
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
2 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 15.99 / piece)
€ 15.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

  • Material (rotor): plastic
Product type

Axial fan

Type

P2123HSL

Nominal voltage

230 V AC

Min. operating voltage

150 V AC

Max. operating voltage

250 V AC

Operating voltage

150 - 250 V AC

Max. current consumption

120 mA

20 W

Type of bearing

Plain bearing

Rotational speed

2700 U/min

Noise emission (max.)

47 dB

Air flow rate

159.6 m³/h

Connection

Open end cable

Cable length

0.60 m

Factory colour

Black

Material

Aluminium (die-cast)

20000 h

Weight

506 g

Min. temperature

+70 °C

Max. temperature

-10 °C

Length

120 mm

Width

120 mm

Height

38 mm

Dim

(L x W x H) 120 x 120 x 38 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1503219 PROFAN Technology P2123HSL Axial fan 230 V AC 159.6 m³/h (L x W x H) 120 x 120 x 38 mm

Description

Hints

Indications at 50 Hz.
