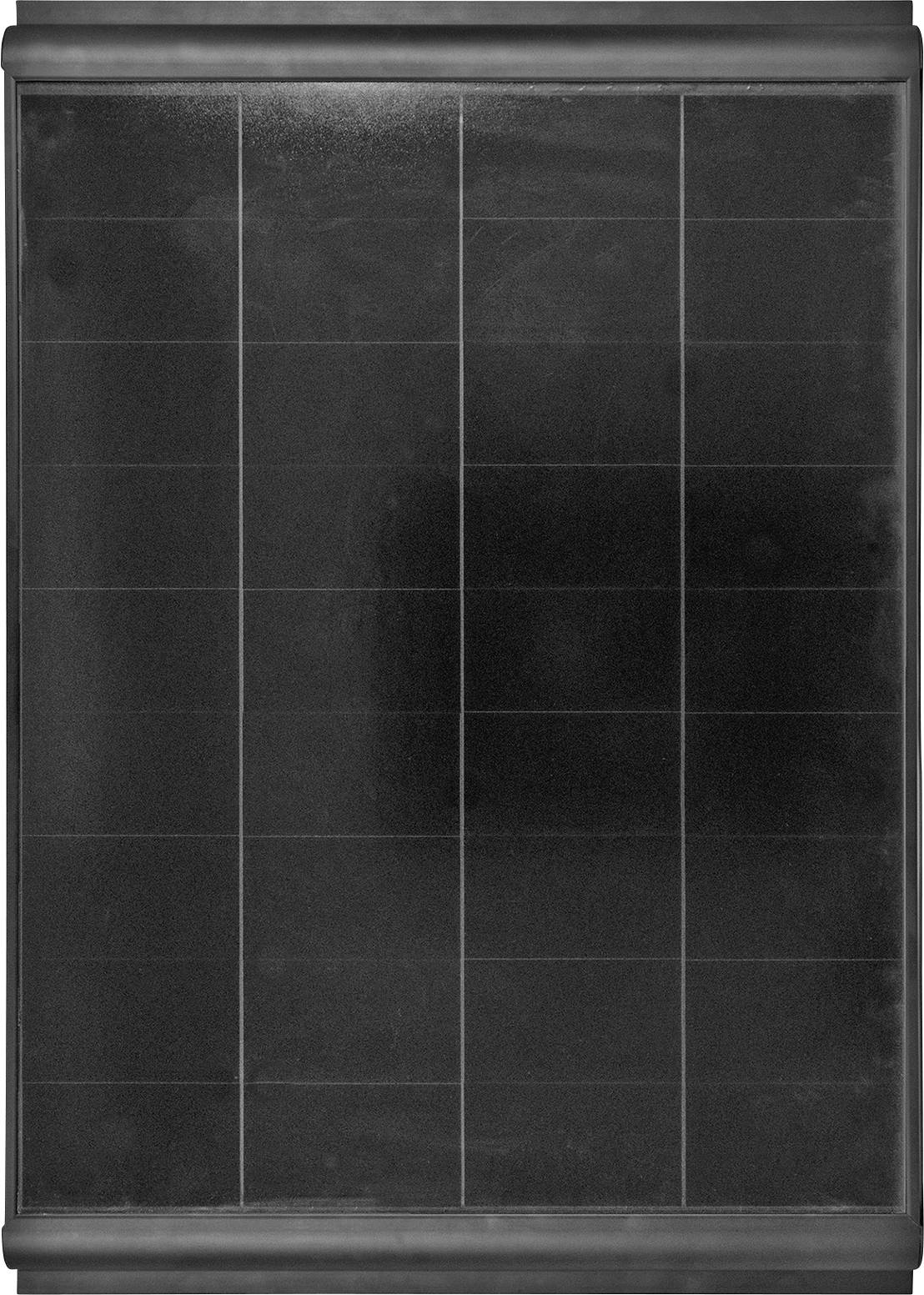

ProUser SP120 Monocrystalline solar panel 120 Wp 20.5 V
EAN:
Part number:
Item no:
Number
Total (€ 149.99 / piece)
€ 149.99
incl. VAT
Only 2 Piece(s) available
Highlights & Details
Solar panel 120W SP120
- Mono HPBC solar cells
Technical specifications
- Efficiency of cells: 20.9%
- Voltage at Pmax (VMP): 20.50V
- Current at Pmax (Imp): 5.85A
- Open circuit voltage (VOC): 24.77V
- Short-circuit current (ISC): 6.17A
- Cell type: 36 (4x9) mono HPBC cells
- Connector distributor socket MC4
- IP Junction box IP67
- Application class A
- Temperature range -40°C to +85°C.
- Product type
Monocrystalline solar panel
120 Wp
- Nominal voltage
20.5 V
- Dim
(L x W x H) 670 x 975 x 40 mm
- Efficiency
20.9 %
- Connector
MC-PV-4
Cable
- Weight
9 kg
- Cable length
5 m
- Short-circuit current
6.17 A
- Open circuit voltage (OCV)
24.77 V
- Nominal current
5.85 A
- Width
975 mm
- Height
40 mm
- Length
670 mm
- Voltage (max.)
24.77 V
- No. of cells
36
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323916 ProUser SP120 Monocrystalline solar panel 120 Wp 20.5 V
Description
The SP120 solar panel is specially designed for your caravan or mobile home. With dimensions 975 x 670 x 40 mm it fits perfectly on your vehicle and offers you everywhere a high power source of renewable energy.
This text is machine translated.
This text is machine translated.
Scope of delivery
- With 6 bits. Junction box connector (IP67)
- 5 meter cable (4mm²)
- Roof cable bushing
