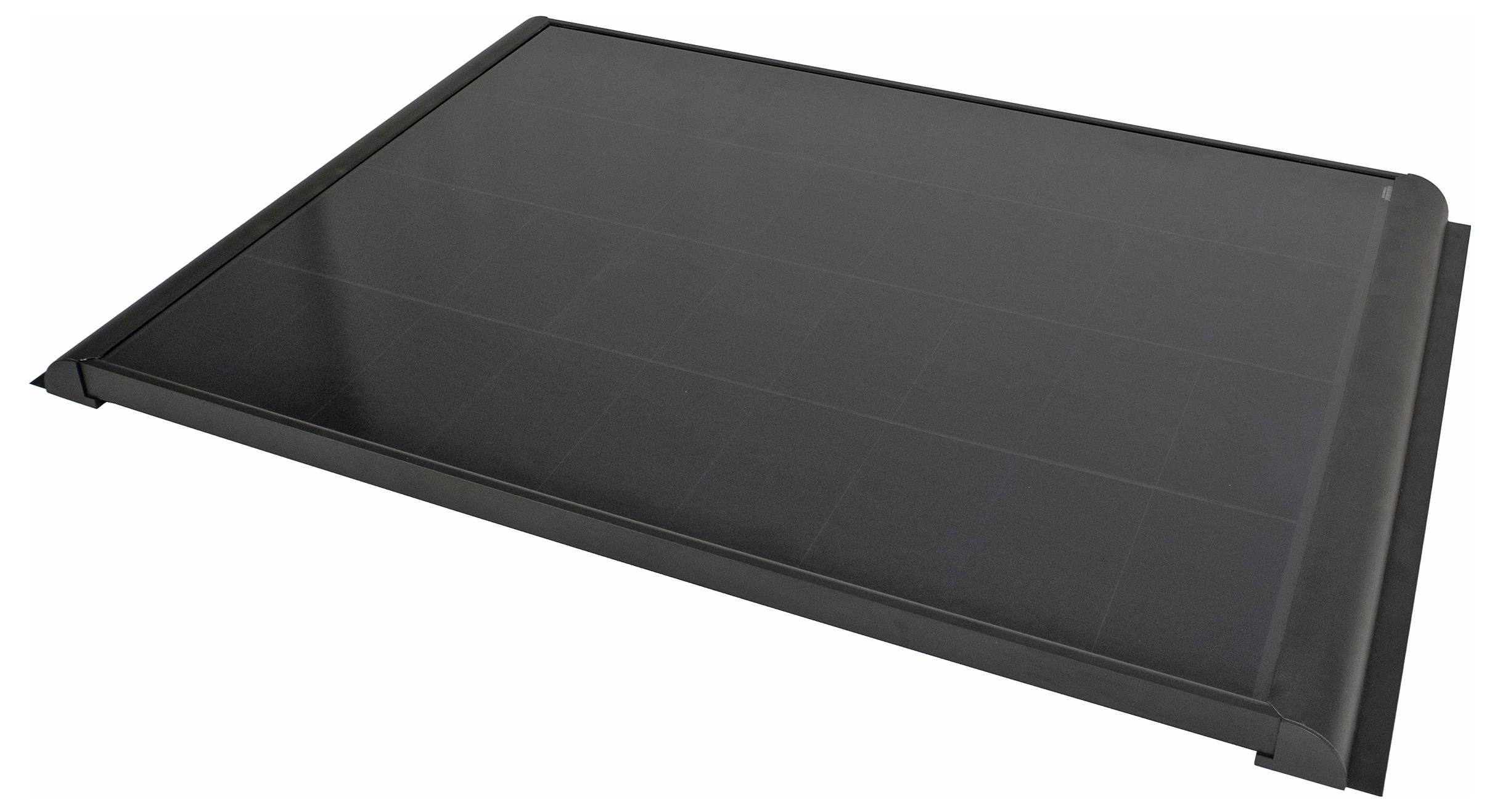

ProUser SP220 Monocrystalline solar panel 220 W 18.96 V
EAN:
Part number:
Item no:
Total (€ 229.99 / piece)
€ 229.99
incl. VAT
14-day return policy included
Highlights & Details
Solar Panel 220W SP220
- Mono HPBC solar cells
Technical specifications
- Efficiency of cells: 20.8%
- Voltage at Pmax (VMP): 18.96V
- Current at Pmax (Imp): 11.60A
- Open circuit voltage (VOC): 23.15V
- Short-circuit current (ISC): 12.28A
- Cell type: 136 (4x34) mono HPBC cells
- Connector distributor socket MC4
- IP Junction box IP67
- Application class A
- Temperature range -40°C to +85°C.
- Product type
Monocrystalline solar panel
220 W
- Nominal voltage
18.96 V
- Dim
(L x W x H) 1695 x 670 x 40 mm
- Efficiency
20.8 %
- Connector
MC-PV-4
Cable
Junction box
- Weight
13.8 kg
- Cable length
5 m
- Short-circuit current
12.28 A
- Open circuit voltage (OCV)
23.15 V
- Nominal current
11.60 A
- Width
670 mm
- Height
40 mm
- Length
1695 mm
- Voltage (max.)
23.15 V
- No. of cells
136
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323918 ProUser SP220 Monocrystalline solar panel 220 W 18.96 V
Description
The SP180 solar panel is specially designed for your caravan or mobile home. With dimensions 1695 x 670 x 40 mm it fits perfectly on your vehicle and offers you everywhere a high power source of renewable energy.
This text is machine translated.
This text is machine translated.
Scope of delivery
- With 6 bits. Junction box connector (IP67)
- 5 meter cable (4mm²)
- Roof cable bushing
