Name: PULS CP10.241-C1 Rail mounted PSU (DIN) 10 A 240 W Content 1 pc(s)
Brand: PULS
SKU: 1833928
Availability: BackOrder

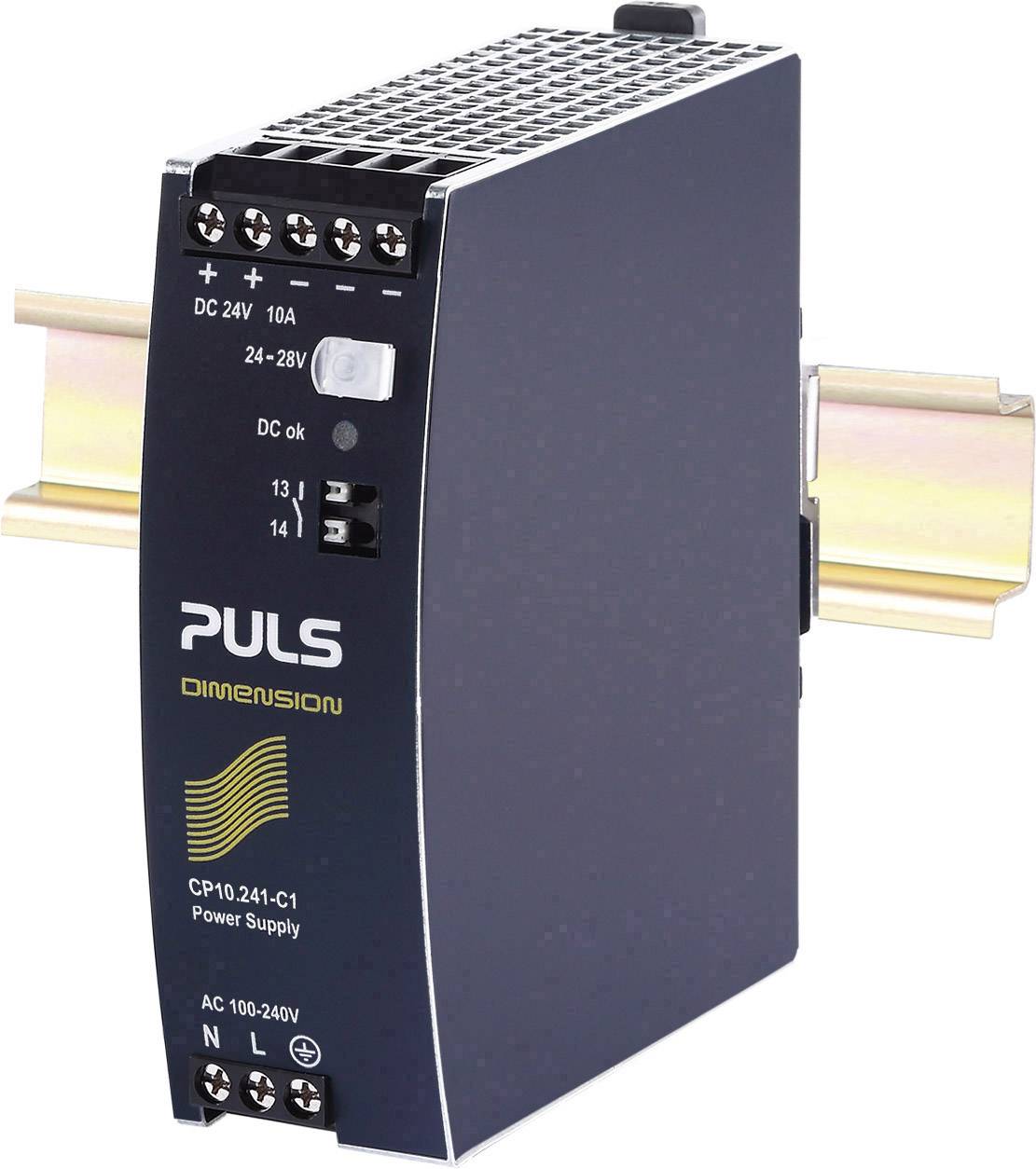

A black power supply mounted on DIN rail. Label reads: 'PULS DIMENSION'. Indicator lights for DC voltage and status.

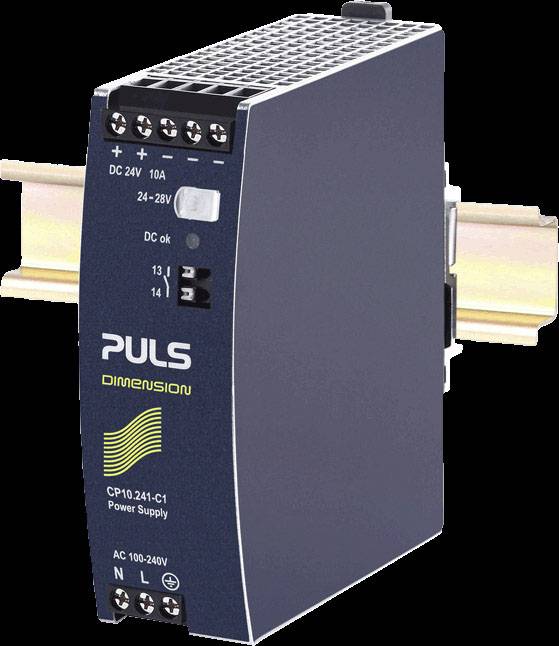

Blue power supply unit with "PULS DIMENSION" inscription, installed on a DIN rail. Input range: AC 100-240V, output: DC 24V, 10A.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 12

Multiple: 12

Total (€ 214.99 / piece)

€ 2,579.88

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Din rail power supplies for 1-phase systems

AC100-240V wide input range
Width only 39 mm
Efficiency up to 95.2%
Excellent part-load efficiency
20% power reserve
Secure HiccupPLUS-overload mode
Easy fuse is triggered by high level
Overload/peak current
Active Harmonic correction (PFC)
Minimum inrush
Full power between -25°C and +60°C
DC-OK relay contact
Protection painted printed circuit boards
This text is machine translated.

Technical specifications

Nominal input voltage: AC 100-240V

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC
110 V DC

Input voltage (max.): 240 V AC
150 V DC

Max. output current: 10 A

Output current (max.) - rounded: 10 A

: 240 W

Dim: (L x W x H) 117 x 39 x 124 mm

Weight: 600 g

Output voltage (max.): 28 V

Output voltage (min.): 24 V

Operating temperature (max.): 70 °C

Max. operating temperature (derating): 60 °C

Min. operating temperature (derating): -25 °C

Operating temperature (min.): -25 °C

Manufacturer part #: CP10.241-C1

Content: 1 pc(s)

PSU features: protective coating

Width: 39 mm

Height: 124 mm

Length: 117 mm

Type: CP10.241-C1

Efficiency: 95.2 %

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Input voltage (max.)

Min. input voltage

Nominal input voltage

Output current (max.) - rounded

Power

Product type

PULS CP10.241-C1 Rail mounted PSU (DIN) 10 A 240 W Content 1 pc(s)

Item no:1833928

Available soon

1 Piece(s)Conrad Electronic

This article

240 V AC

100 V AC

AC 100-240V

10 A

240 W

Rail mounted PSU (DIN)

Piece(s)

Minimum order quantity: 12

Multiple: 12

€ 214.99^*

PULS CP10.241-R2 Rail mounted PSU (DIN) 10 A 240 W Content 1 pc(s)

Item no:1833925

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

240 V AC

100 V AC

10 A

240 W

Rail mounted PSU (DIN)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 285.00^*

PULS CP10.241-S1 Rail mounted PSU (DIN) 10 A 240 W Content 1 pc(s)

Item no:1833926

Fast track dispatch on Thu 29 Oct

12 Piece(s)Conrad Electronic

240 V AC

100 V AC

AC 100-240V

10 A

240 W

Rail mounted PSU (DIN)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

PULS CP10.241-S2 Rail mounted PSU (DIN) 10 A 240 W Content 1 pc(s)

Item no:1833929

Fast track dispatch on Thu 29 Oct

9 Piece(s)Conrad Electronic

240 V AC

100 V AC

AC 100-240V

10 A

240 W

Rail mounted PSU (DIN)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 219.99^*

PULS CP10.361 Rail mounted PSU (DIN) 6.7 A 240 W Content 1 pc(s)

Item no:1833930

Fast track dispatch on Thu 29 Oct

6 Piece(s)Conrad Electronic

240 V AC

100 V AC

AC 100-240V

6.7 A

240 W

Rail mounted PSU (DIN)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

PULS CP20.241 Rail mounted PSU (DIN) 20 A 480 W Content 1 pc(s)

Item no:1833931

Fast track dispatch on Thu 29 Oct

11 Piece(s)Conrad Electronic

240 V AC

110 V DC

AC 100-240V

20 A

480 W

Rail mounted PSU (DIN)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 285.00^*

PULS CP20.241-C1 Rail mounted PSU (DIN) 20 A 480 W Content 1 pc(s)

Item no:1833932

Fast track dispatch on Thu 29 Oct

5 Piece(s)Conrad Electronic

240 V AC

100 V AC

AC 100-240V

20 A

480 W

Rail mounted PSU (DIN)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 375.00^*

PULS PIC480.241C Rail mounted PSU (DIN) 20 A 480 W Content 1 pc(s)

Item no:1833924

Fast track dispatch on Thu 29 Oct

12 Piece(s)Conrad Electronic

240 V AC

200 V AC

20 A

480 W

Rail mounted PSU (DIN)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 194.99^*

PULS QT40.242 Rail mounted PSU (DIN) 40 A 960 W Content 1 pc(s)

Item no:1833934

Fast track dispatch on Thu 29 Oct

19 Piece(s)Conrad Electronic

480 V AC

380 V AC

40 A

960 W

Rail mounted PSU (DIN)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 515.00^*

PULS QT40.361 Rail mounted PSU (DIN) 26.7 A 960 W Content 1 pc(s)

Item no:1833935

Fast track dispatch on Thu 29 Oct

6 Piece(s)Conrad Electronic

480 V AC

380 V AC

26.7 A

960 W

Rail mounted PSU (DIN)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 635.00^*

Documents & Downloads

Datasheet

Datasheet 1833928 PULS CP10.241-C1 Rail mounted PSU (DIN) 10 A 240 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1833928 PULS CP10.241-C1 Rail mounted PSU (DIN) 10 A 240 W Content 1 pc(s)
