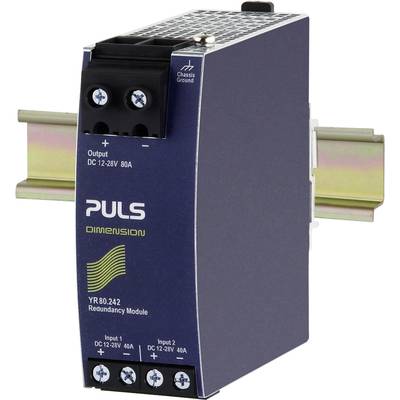

PULS YR80.242 Rail mounted redundancy (DIN) 80 A No. of outputs: 1 x
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 142.85 / piece)
€
Highlights & Details
PULS YR80.242 Rail mounted redundancy (DIN) 80 A No. of outputs: 1 x
- Mosfet redundancy module
- Two 40A inputs, one 80A output
- Not suitable for QT40, SilverLine
- Output short-circuit current max. 44A allowed
- Minimal power losses and low voltage drop thanks to MOSFET technology
- Full output current between -40 and +60°C
Technical specifications
- Product type
Rail mounted redundancy (DIN)
- Min. input voltage
12 V DC
- Input voltage (max.)
28 V DC
- Max. output current
80 A
- Output current (max.) - rounded
80 A
- No. of outputs
1 x
- Output voltage (min.)
12 V DC
- Output voltage (max.)
28 V DC
- Connection
Spring-loaded terminal
- Dim
(W x H x D) 46 x 124 x 127 mm
- Weight
370 g
- Manufacturer part #
YR80.242
- Width
46 mm
- Height
124 mm
- Type
DIMENSION
- Depth
127 mm
- Output voltage
12 - 28 V / DC
- Output current (details)
80 A
