Buy Quadrios 22C484 Ferrule set 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm², 4.0 mm², 6.0 mm² Not insulated 500 pc(s)

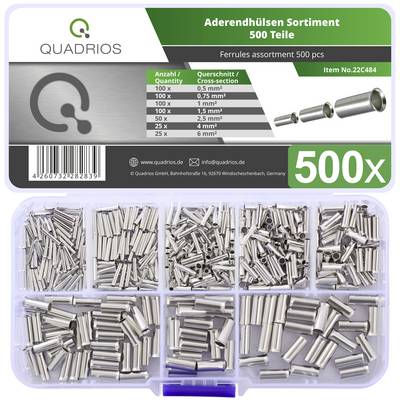

'Assortment of 500 wire end ferrules in various cross-sections, packed in a compartmentalised box, marked as item No. 22C484 by Quadrios.'

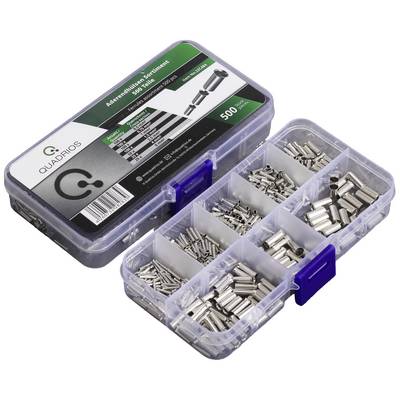

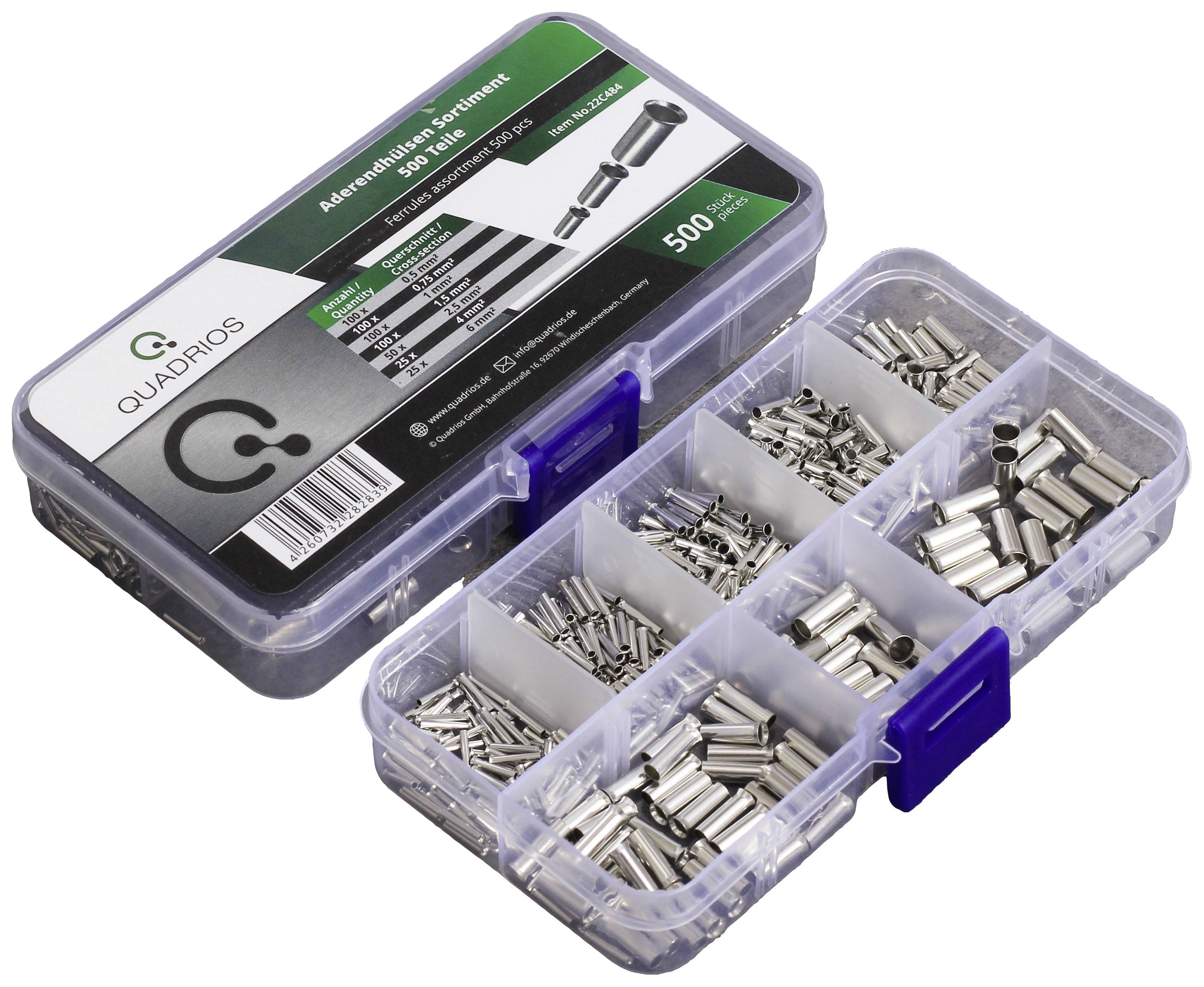

Plastic box with a hinged lid, filled with metal pins in various sizes. Sticker shows details of pin size and quantity (500 pieces).

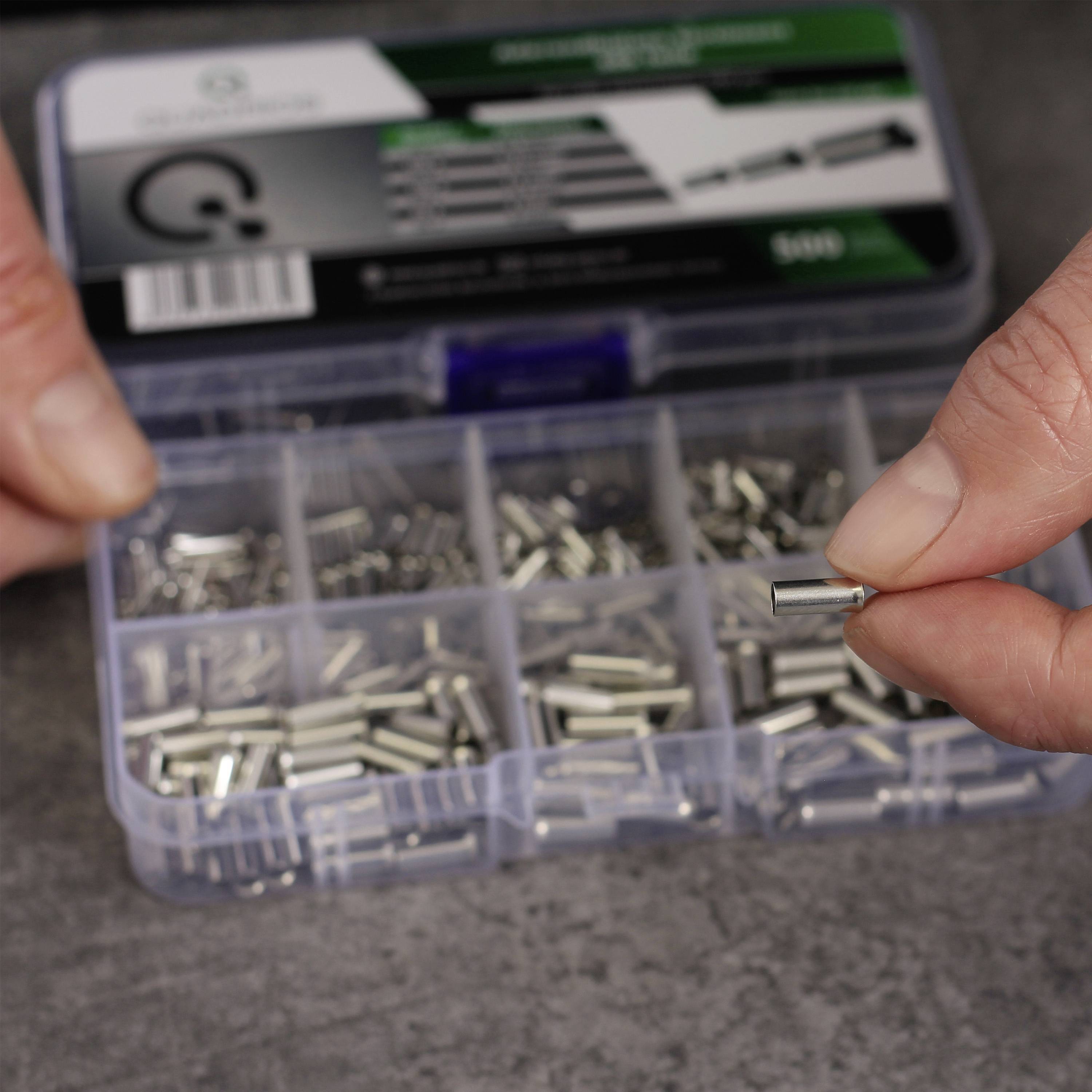

A hand is holding a small, silver metal capsule over an open plastic box containing many of these capsules.

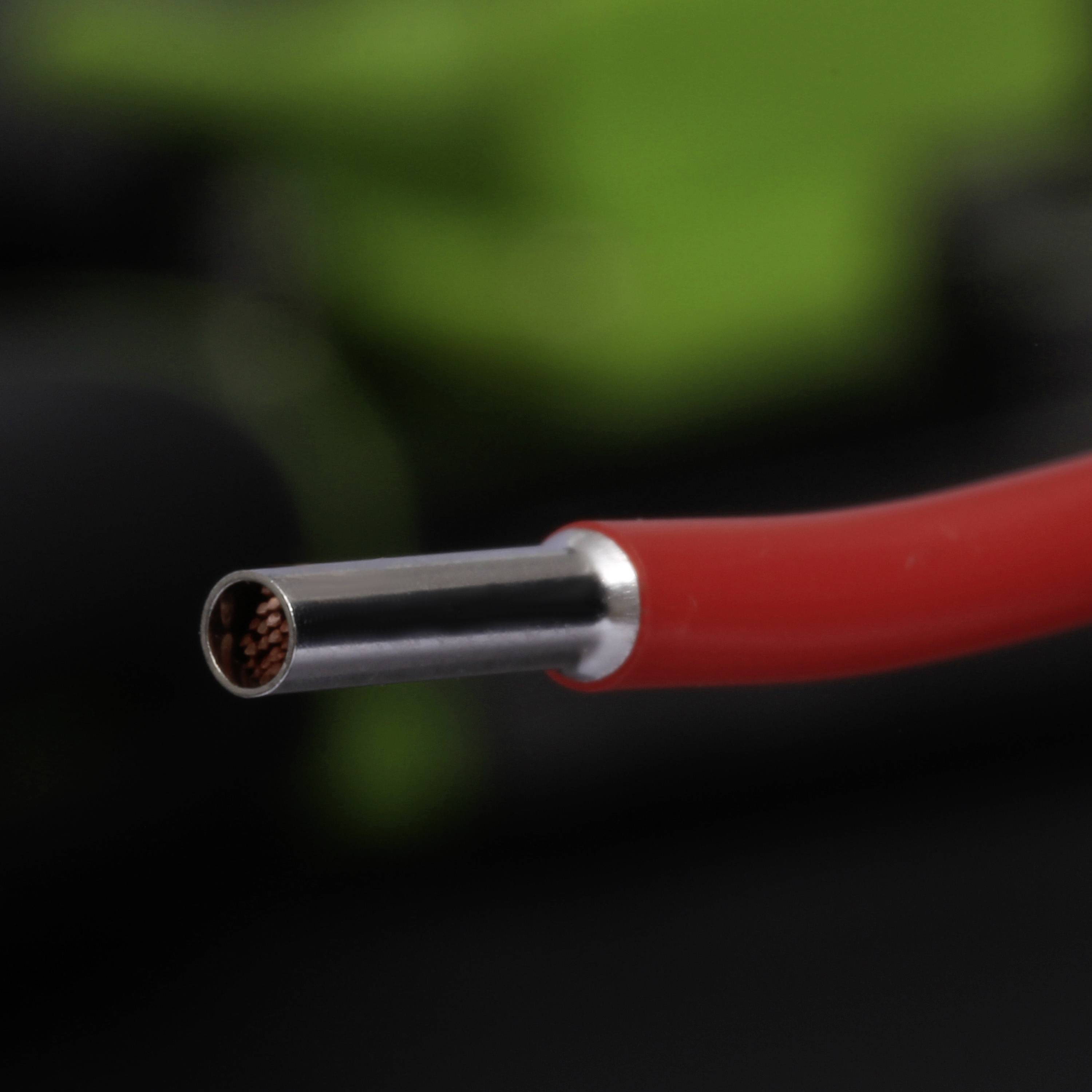

Red wire with visible copper core on a dark, blurred background. The focus is on the wire structure and material composition.

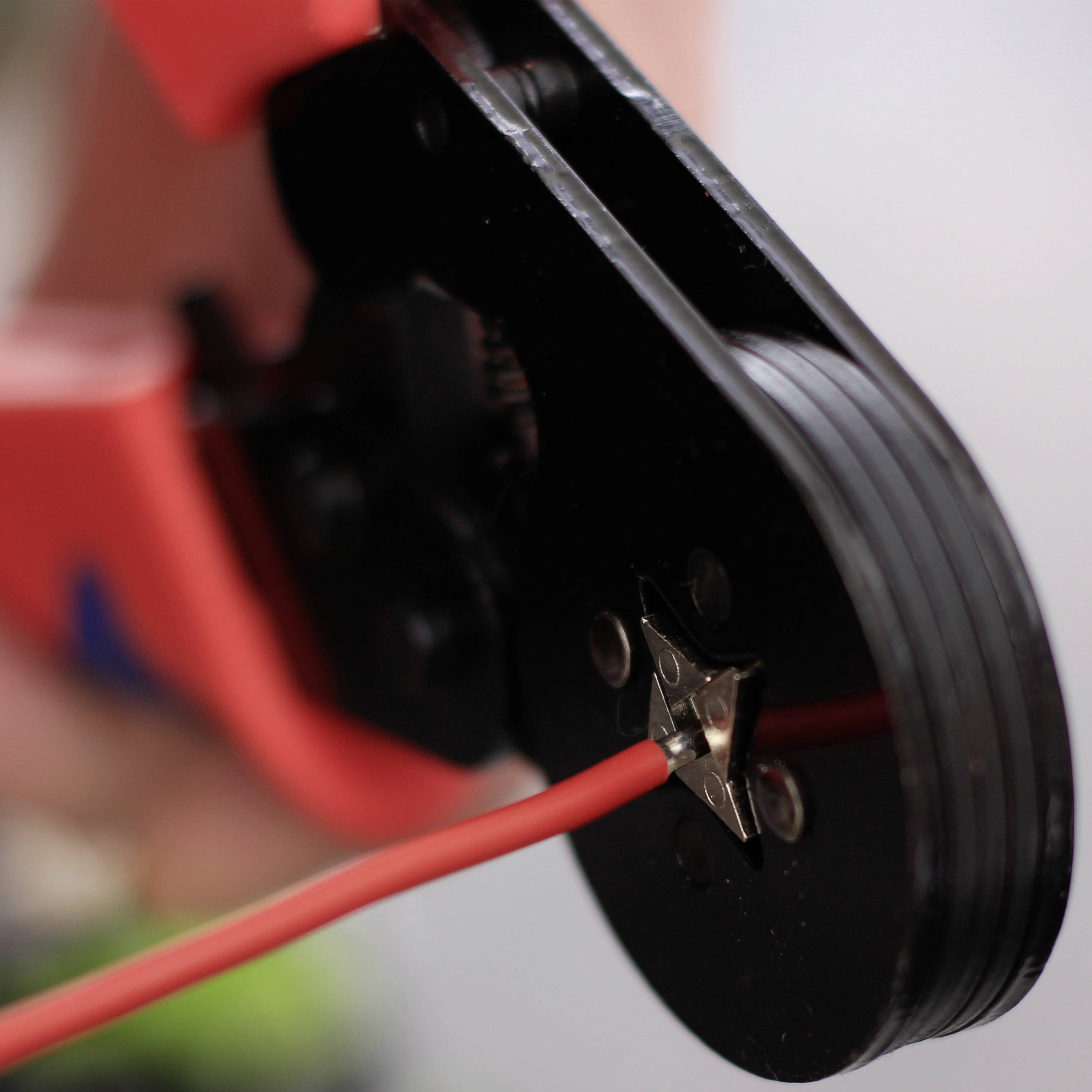

A tool is used to connect a cable with a metal clamp, possibly for electrical work.

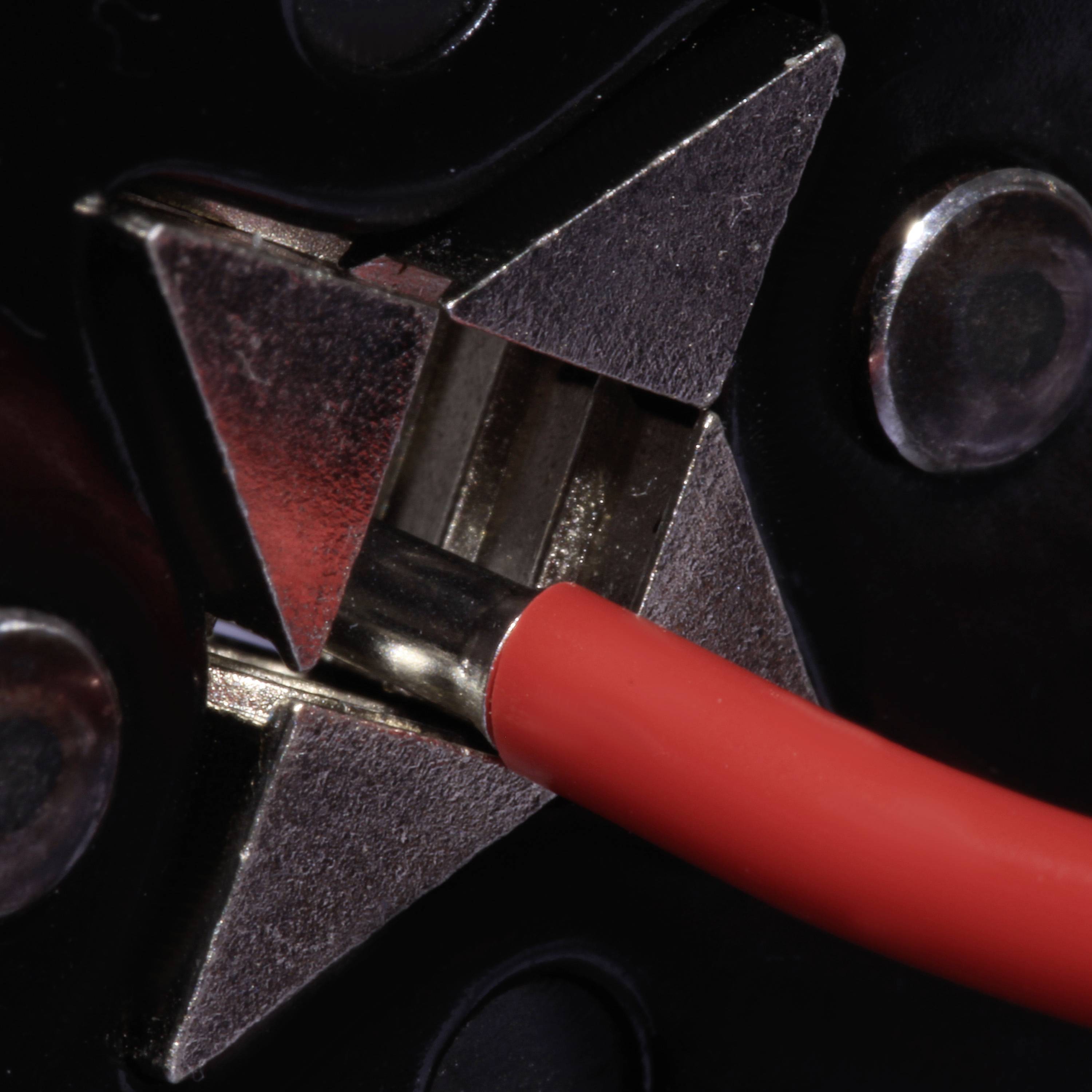

A red cable is connected to a steel, clip-like connector. It could be a battery or electrical device connection.

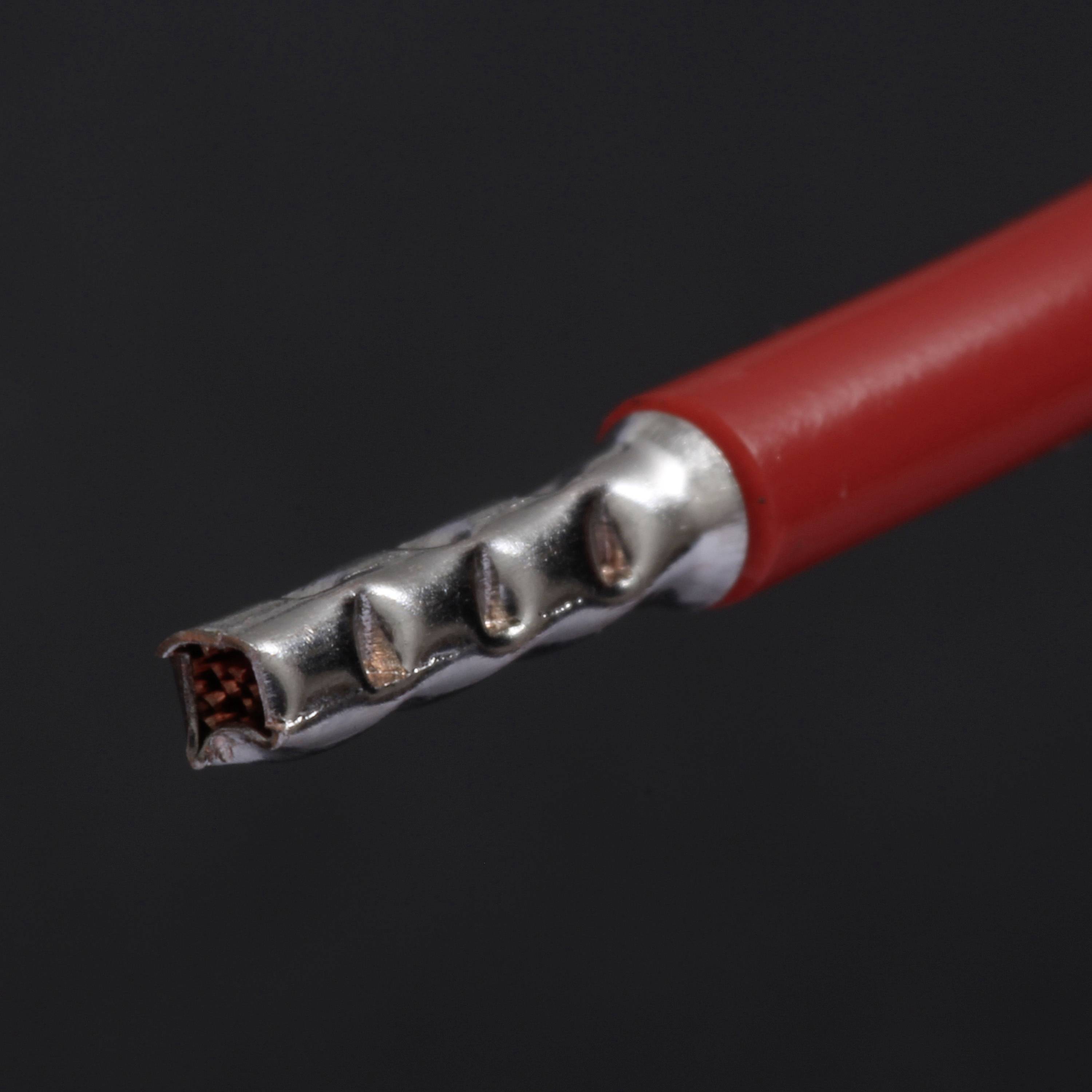

A red cable with an uninsulated, tinned conductor at the end, against a dark background.

1/7

Product type

Ferrule set

Cross section per core

0.5 mm²

0.75 mm²

1.0 mm²

1.5 mm²

2.5 mm²

4.0 mm²

6.0 mm²

Sleeve length

8 mm

Insulation type

Not insulated

Content

500 pc(s)

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

82 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 500 pc(s))

Set(s)

Total (€ 7.13 / piece)

€ 7.13

plus VAT.

Report legal concerns

Highlights & Details

Wire-end sleeves-set uninsulated 500 St 0,5-6 QMM

Our service for you

Technical specifications

Product type: Ferrule set

Cross section per core: 0.5 mm²
0.75 mm²
1.0 mm²
1.5 mm²
2.5 mm²
4.0 mm²
6.0 mm²

Sleeve length: 8 mm

Insulation type: Not insulated

Content: 500 pc(s)

Contact material: Copper silver plated

AWG max.: 10

Manufacturer part #: 22C484

Cross-section x Length: 0.5 mm² x 8 mm

RoHS-compliant: Yes

Type: 22C484

Documents & Downloads

Datasheet

Datasheet 2870590 Quadrios 22C484 Ferrule set 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm², 4.0 mm², 6.0 mm² Not insulated 500 pc(s)

User & Safety Instructions

User & Safety Instructions 2870590 Quadrios 22C484 Ferrule set 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm², 4.0 mm², 6.0 mm² Not insulated 500 pc(s)

Description

Quadrios wire-end sleeves guarantee optimum crimp connections together with suitable crimping tools. High-quality design of common types in a tidy assortment box with uninsulated wire end sleeves made from high-purity copper with tin-coating. The wire-end sleeves are especially suitable for hobbyists, professionals, field technicians, service workshops and laboratory use. Optimum for use with suitable wire-end sleeve crimping pliers.
Delivery scope
100x 0.5 mm²,Length 8 mm
100x 0.75 mm², length 8 mm
100x 1.0 mm², length 8 mm
100x 1.5 mm²,Length 8 mm
50x 2.5 mm²,Length 8 mm
25x 4.0 mm²,Length 8 mm
25x 6.0 mm²,Length 8 mm
