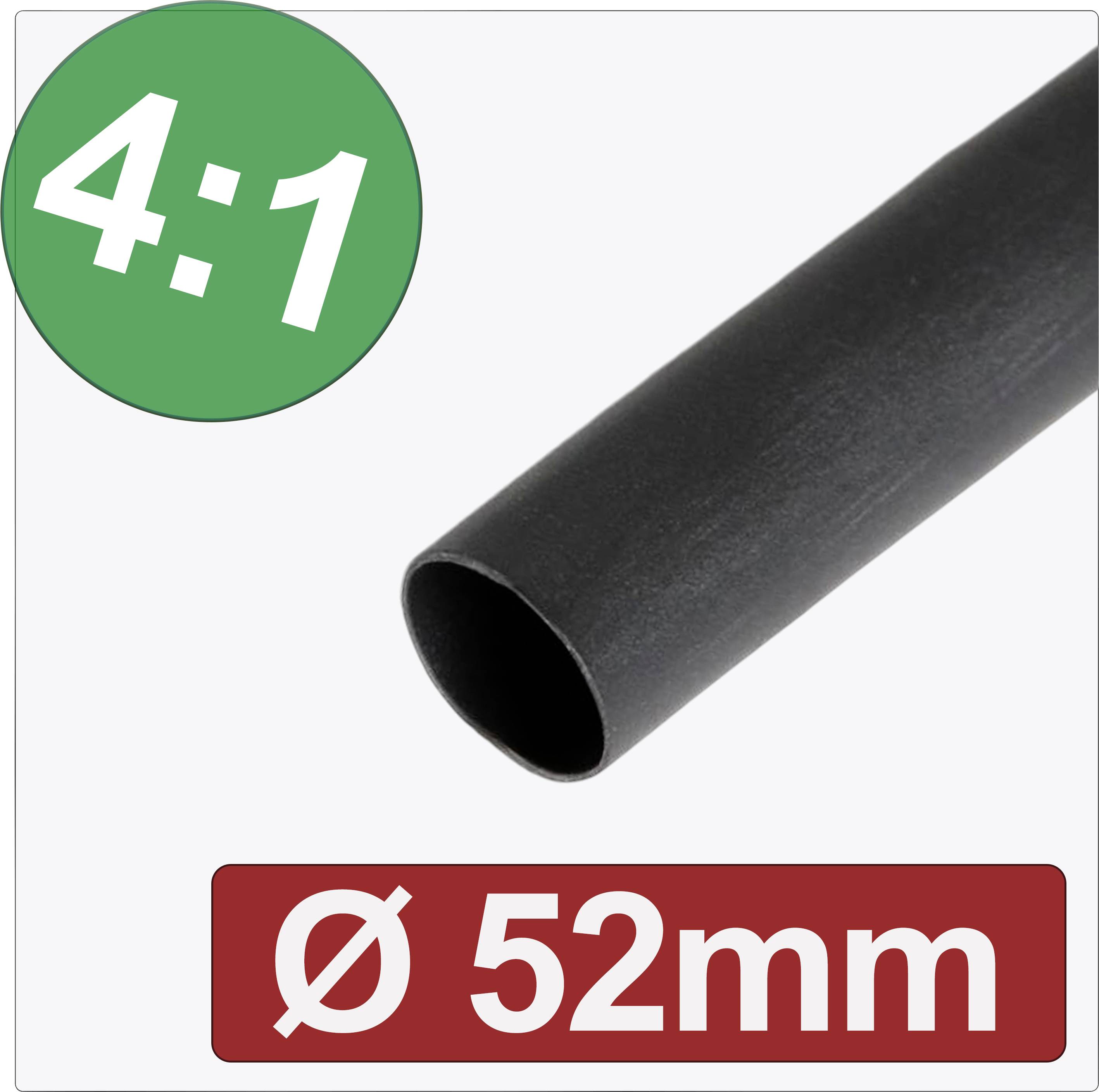

Quadrios 24CA305 Heatshrink + adhesive Black 52 mm 13 mm Shrinkage:4:1 Sold per metre
EAN:
Part number:
Item no:
Product type
Heatshrink + adhesive
Nominal inside diameter (pre-shrinkage)
52 mm
Nominal diameter (post-shrinkage)
13 mm
Heatshrink features
incl. adhesive
Content
Sold per metre
Datasheet (PDF)
Quantity (meter)
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Highlights & Details
Shrink hose 4:1, Φ 52 mm Meterware
- Sold per metre
- Shrinkage: 4:1
- Black
- Nominal inside diameter (pre-shrinkage): 52 mm
Our service for you
Technical specifications
- Product type
Heatshrink + adhesive
- Nominal inside diameter (pre-shrinkage)
52 mm
- Nominal diameter (post-shrinkage)
13 mm
- Factory colour
Black
- Shrinkage
4:1
- Heatshrink features
incl. adhesive
- Content
Sold per metre
- Material
PE
- Shrink temperature (min.)
80 °C
- Shrink temperature (max.)
125 °C
- Min. temperature
-40 °C
- Max. temperature
+125 °C
- Manufacturer part #
24CA305
- Halogen-free
Yes
- RoHS-compliant
Yes
- Type
24CA305
Documents & Downloads
Datasheet
Datasheet 3344360 Quadrios 24CA305 Heatshrink + adhesive Black 52 mm 13 mm Shrinkage:4:1 Sold per metre
User & Safety Instructions
User & Safety Instructions 3344360 Quadrios 24CA305 Heatshrink + adhesive Black 52 mm 13 mm Shrinkage:4:1 Sold per metre
Description
These high-quality heat shrink tubing is particularly suitable for service workshops, electronics and applications requiring Hohem heat shrink tubing.
The black heat-shrink tubing is available by meter and can be shortened individually. Various available nominal diameters open up a wide range of applications. The high shrink ratio of 4:1 with inner adhesive is suitable for applications where standard heat shrink tubes with their properties are not sufficient. The double-wall technology also offers good mechanical protection against external influences after use, the hot-melting inner adhesive enables a solid and water-repellent connection of the hose to the object when overlapped correctly.
Material: PE, shrink temperature (min.): 80 °C, shrink temperature (max.): 125 °C, operating temperature:
-40 °C to +125 °C, tensile strength (min.): 10.4 MPa, dielectric strength 15 kV/mm (30 s.), industrial quality. The tubing complies with RoHS guidelines and is lead-free and halogen-free.
This text is machine translated.
The black heat-shrink tubing is available by meter and can be shortened individually. Various available nominal diameters open up a wide range of applications. The high shrink ratio of 4:1 with inner adhesive is suitable for applications where standard heat shrink tubes with their properties are not sufficient. The double-wall technology also offers good mechanical protection against external influences after use, the hot-melting inner adhesive enables a solid and water-repellent connection of the hose to the object when overlapped correctly.
Material: PE, shrink temperature (min.): 80 °C, shrink temperature (max.): 125 °C, operating temperature:
-40 °C to +125 °C, tensile strength (min.): 10.4 MPa, dielectric strength 15 kV/mm (30 s.), industrial quality. The tubing complies with RoHS guidelines and is lead-free and halogen-free.
This text is machine translated.
Scope of delivery
- Heat Shrink Tubing
