Raspberry Pi® T5875DV Mains PSU (fixed voltage) Compatible with (development kits): Raspberry Pi® Max. output current 25
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
Highlights & Details
Raspberry Pi ® power supply-W white
- Short-circuit, overload and overvoltage protection
- Low standby current consumption
- Double insulated Class II
- ERP efficiency of the level 6
Technical specifications
- Product type
Mains PSU (fixed voltage)
- Suitable for
Raspberry Pi® B
Raspberry Pi® B+
Raspberry Pi® 2 B
Raspberry Pi® 3 B
Raspberry Pi® 3 B+
Raspberry Pi® A
Raspberry Pi® A+
Raspberry Pi® 3 A+
Raspberry Pi® Zero
Raspberry Pi® Zero W
Show more
- No. of outputs
1 x
- Max. output current
2500 mA
- Max. output current per channel
2500 mA
- Output current (max.) - rounded
2.5 A
- Width
45.1 mm
- Height
35.1 mm
- Outputs
USB 2.0 connector Micro B
- Used at
Mains socket
- Compatible with
Raspberry Pi®
- Dim
(L x W x H) 73.7 x 45.1 x 35.1 mm
- Output voltage
5.1 V DC
- Input voltage
115 V AC
230 V AC
- Input voltage
90 - 264 V AC
- Inputs
Europlug
- Weight
150 g
- Factory colour
White
13 W
- Length
73.7 mm
- Output

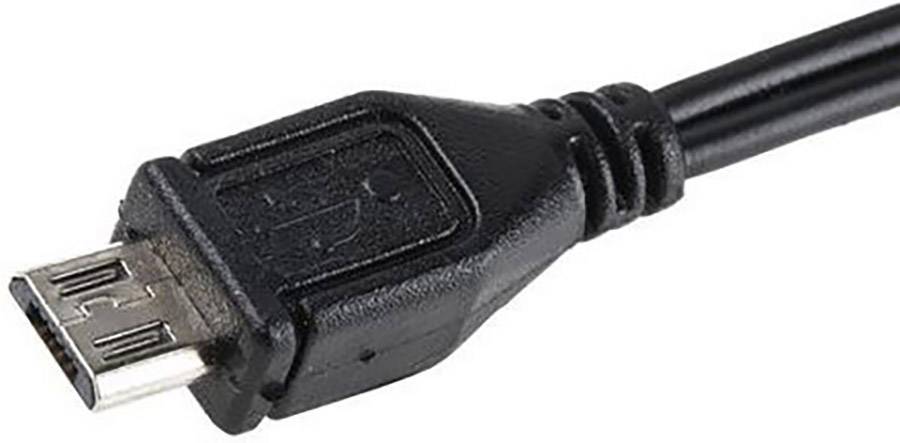

Micro USB
- Type
T5875DV
- Cable length
1.5 m
Documents & Downloads
Datasheet
Datasheet 1429555 Raspberry Pi® T5875DV Mains PSU (fixed voltage) Compatible with (development kits): Raspberry Pi® Max. output current 25
User & Safety Instructions
User & Safety Instructions 1429555 Raspberry Pi® T5875DV Mains PSU (fixed voltage) Compatible with (development kits): Raspberry Pi® Max. output current 25
Description
The Pi Foundation approved power supply (PSU) for the PI3 is available in black and white. The power supply unit has an integrated cable and a micro USB plug. In addition to four replaceable mains adapter you can get the power supply in the UK, Europe, Australia and the United States.
This text is machine translated.
This text is machine translated.
Hints
The power supply for the PI3 is only for use with the Pi 3.
