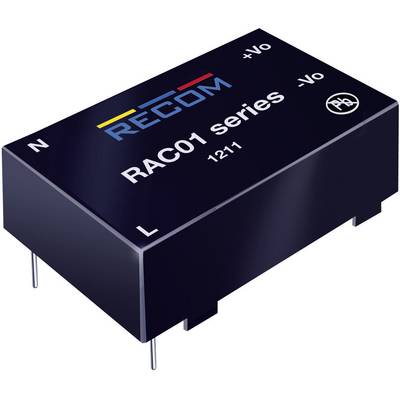

RECOM 20000805 AC/DC PSU (print) 3.3 V DC 0.3 A 1 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 11.99 / piece)
€ 11.99
incl. VAT
14-day return policy included
Highlights & Details
Pcb power supply
- Output 3.3 V DC / 0.3 A
- Power 1 W
- Solder pins
Technical specifications
- Product type
AC/DC PSU (print)
- Input voltage (max.)
264 V AC
- Max. output current
0.3 A
- Output current (max.) - rounded
300 mA
- Min. input voltage
80 V AC
- Output voltage (max.)
3.3 V DC
- Connection
Solder pins
1 W
- Input frequency
47 - 63 Hz
- Protection class
II
- Output voltage 1
3.3 V DC
- Output current 1
300 mA
- Insulation voltage
3000 V AC
- Type
RAC01-3.3SC
- Output current (details)
300 mA
- Input voltage
90 - 277 V AC
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 401815 RECOM 20000805 AC/DC PSU (print) 3.3 V DC 0.3 A 1 W
User & Safety Instructions
User & Safety Instructions 401815 RECOM 20000805 AC/DC PSU (print) 3.3 V DC 0.3 A 1 W
Warranty Terms
Warranty Terms 401815 RECOM 20000805 AC/DC PSU (print) 3.3 V DC 0.3 A 1 W
Description
Insulated AC/DC power supply with very low standby input current, ideal for applications with low power or standby energy supply.
The RAC01 and RAC02 offer 1 W or 2 W output power for an input voltage range from 90 to 265 V/AC and only 30 mW in standby mode. The RAC03-series offers a higher power output of 3 W and 80 mW in the idle state.
In contrast to other "Low" AC/DC modules provides the RAC01-, RAC02 and RAC03-series high performance, quality control, short-circuit proof DC outputs with optional 3.3, 5, 9, 12, 15 or 24 V voltage and a mains and load regulation of ±2%. The efficiency is up to 78%. The RAC01-series has an operating temperature range from -25°C to +85°C, whereby the RAC02 and RAC03-series up to +80 °C can be used. The converters are designed for a long life (MTBF> 1,000,000 hours).
The RAC06-Modules strips 6 Watt at the output and can at the input, with voltage in the range of 90-265 VAC. In contrast to many other "Low" Power Modules combines the RAC06-family high levels of efficiency up to 80% with short-circuit proof DC outputs of 3.3, 5, 9, 12, 15 and 24 V single or ±5, ±12, ±15V dual. With an excellent power control of< 0.3% and a load regulation of< ±0.5%, no adjustment.
The RAC06-series is designed for a long, fault-free life of> 400,000 hours aligned and has a MTBF.
This text is machine translated.
The RAC01 and RAC02 offer 1 W or 2 W output power for an input voltage range from 90 to 265 V/AC and only 30 mW in standby mode. The RAC03-series offers a higher power output of 3 W and 80 mW in the idle state.
In contrast to other "Low" AC/DC modules provides the RAC01-, RAC02 and RAC03-series high performance, quality control, short-circuit proof DC outputs with optional 3.3, 5, 9, 12, 15 or 24 V voltage and a mains and load regulation of ±2%. The efficiency is up to 78%. The RAC01-series has an operating temperature range from -25°C to +85°C, whereby the RAC02 and RAC03-series up to +80 °C can be used. The converters are designed for a long life (MTBF> 1,000,000 hours).
The RAC06-Modules strips 6 Watt at the output and can at the input, with voltage in the range of 90-265 VAC. In contrast to many other "Low" Power Modules combines the RAC06-family high levels of efficiency up to 80% with short-circuit proof DC outputs of 3.3, 5, 9, 12, 15 and 24 V single or ±5, ±12, ±15V dual. With an excellent power control of< 0.3% and a load regulation of< ±0.5%, no adjustment.
The RAC06-series is designed for a long, fault-free life of> 400,000 hours aligned and has a MTBF.
This text is machine translated.
