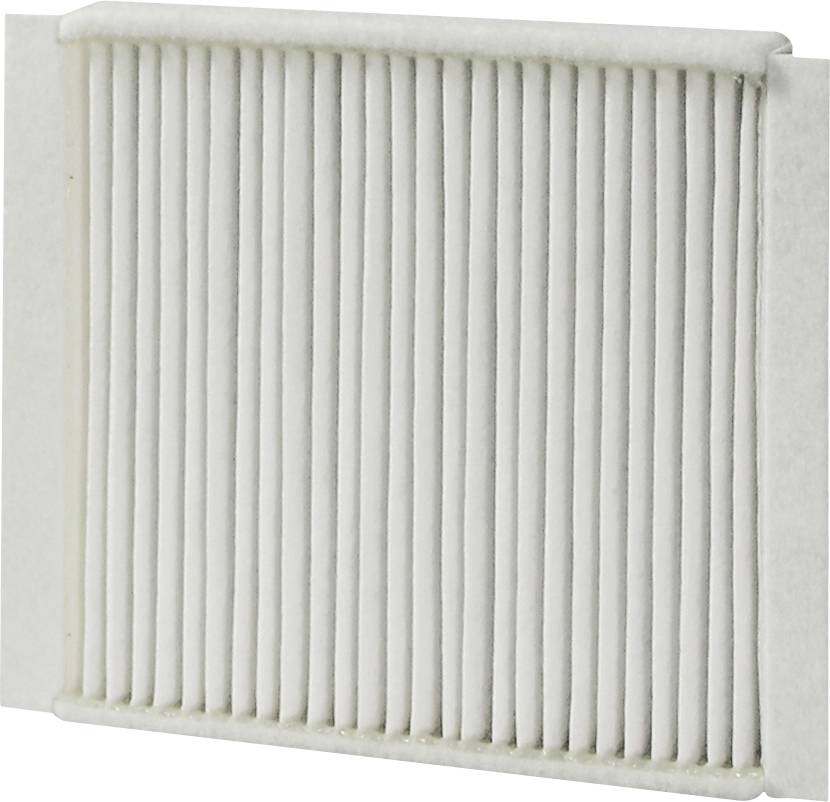

Rittal SK 3238.025 Pleated filter (W x H x D) 114 x 114 x 14 mm Piece 5 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pleated filter
Width
114 mm
Height
114 mm
Depth
14 mm
Number (Package size 5 pc(s))
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
Technical specifications
- Material: Folded filter: Base polyester, meltblown polycarbonate
- Absorber mat- 100% polyester
- Net weight: 0.1 kg
- Gross weight: 0.113 kg
- Dimensions: Width 114 mm
- Height: 114 mm
- Depth: 14 mm
- Colour: white
- Design: For filter fan / outlet filter
- Dimensions of absorber mat: Width: 120 mm
- Height: 120 mm
- Depth: 2.9 mm
- Weighs 0.12 kg
- Protection class IP according to IEC 60 529: IP55 when mounted in the filter fan / outlet filter
- Packaging type
Piece
- Product type
Pleated filter
- Type
SK 3238.025
- Compatible with
Rittal
- Factory colour
White
IP55
- Width
114 mm
- Height
114 mm
- Depth
14 mm
- Dim
(W x H x D) 114 x 114 x 14 mm
- Weight
0.1 kg
- Content
5 pc(s)
White
114 mm
114 mm
14 mm
FALSE
Other
IP55
TRUE
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386806 Rittal SK 3238.025 Pleated filter (W x H x D) 114 x 114 x 14 mm Piece 5 pc(s)
Description
SK folded filter IP55, for filter fan/outlet filter 32388.7xx/32388.3xx, BHT:114x114x14 mm
The high-quality wrinkle filter technology makes possible a significant increase in volume flow as compared to conventional nonwoven filters and thus a performance increase of the equipment as well as reduction of energy consumption. In addition, better filter properties ensure less dust in the cabinet or device and due to longer service life, the service costs can be reduced considerably.
This text is machine translated.
The high-quality wrinkle filter technology makes possible a significant increase in volume flow as compared to conventional nonwoven filters and thus a performance increase of the equipment as well as reduction of energy consumption. In addition, better filter properties ensure less dust in the cabinet or device and due to longer service life, the service costs can be reduced considerably.
This text is machine translated.
