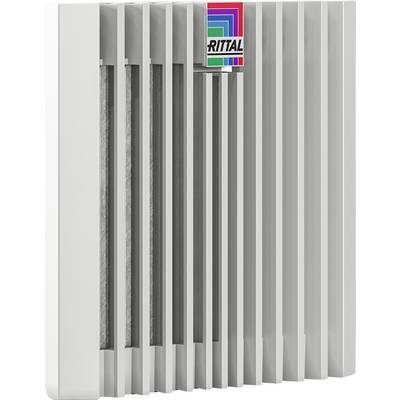

Rittal SK 3238.300 Filter (W x H x D) 148.5 x 148.5 x 34.2 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Filter
Width
148.5 mm
Height
148.5 mm
Depth
34.2 mm
Type
SK 3238.300
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
Technical specifications
- Material: plastic
- Net weight: 0.161 kg
- Gross weight: 0.206 kg
- Dimensions: Width 148.5 mm
- Height: 148.5 mm
- Depth: 34.2 mm
- Benefit: Easy filter change through a new opening mechanism on the louver grid
- Faster mounting on the cabinet by optimized latching hooks
- Installation without any tools
- Colour RAL 7035
- Design: Wall-mounting
- Weighs 0.17 kg
- Type 1 with folded filter to protect NEMA
- Type 12 with fleece filter
- Type 3
- Type 3R
- Type 4
- Type 4X with fleece filter/folding filter and spray water hood
- Mounting cut-out width: 124 mm
- Outbreak - Height 124 mm
- IP rating according to IEC 60 529:IP54 with fleece filter/folding filter
- IP55 with folded filter and absorption mat
- IP56 with fleece filter/line filter and jet-water hood
- Product type
Filter
- Type
SK 3238.300
- Features
incl. filter
- Compatible with
Rittal
- Factory colour
Grey (RAL 7035)
IP54
IP55
IP56
- Width
148.5 mm
- Height
148.5 mm
- Depth
34.2 mm
- Dim
(W x H x D) 148.5 x 148.5 x 34.2 mm
- Weight
0.161 kg
- Content
1 pc(s)
Grey
148.5 mm
148.5 mm
34.2 mm
FALSE
Plastic
IP54
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386674 Rittal SK 3238.300 Filter (W x H x D) 148.5 x 148.5 x 34.2 mm 1 pc(s)
Description
SK Blue e+ outlet filter, for filter fan 32388.7xx, BH 148.5 x 148.5 mm, RAL 7035
For ventilation through convection, one outlet filter can be used in both the lower and upper areas of the control cabinet.
This text is machine translated.
For ventilation through convection, one outlet filter can be used in both the lower and upper areas of the control cabinet.
