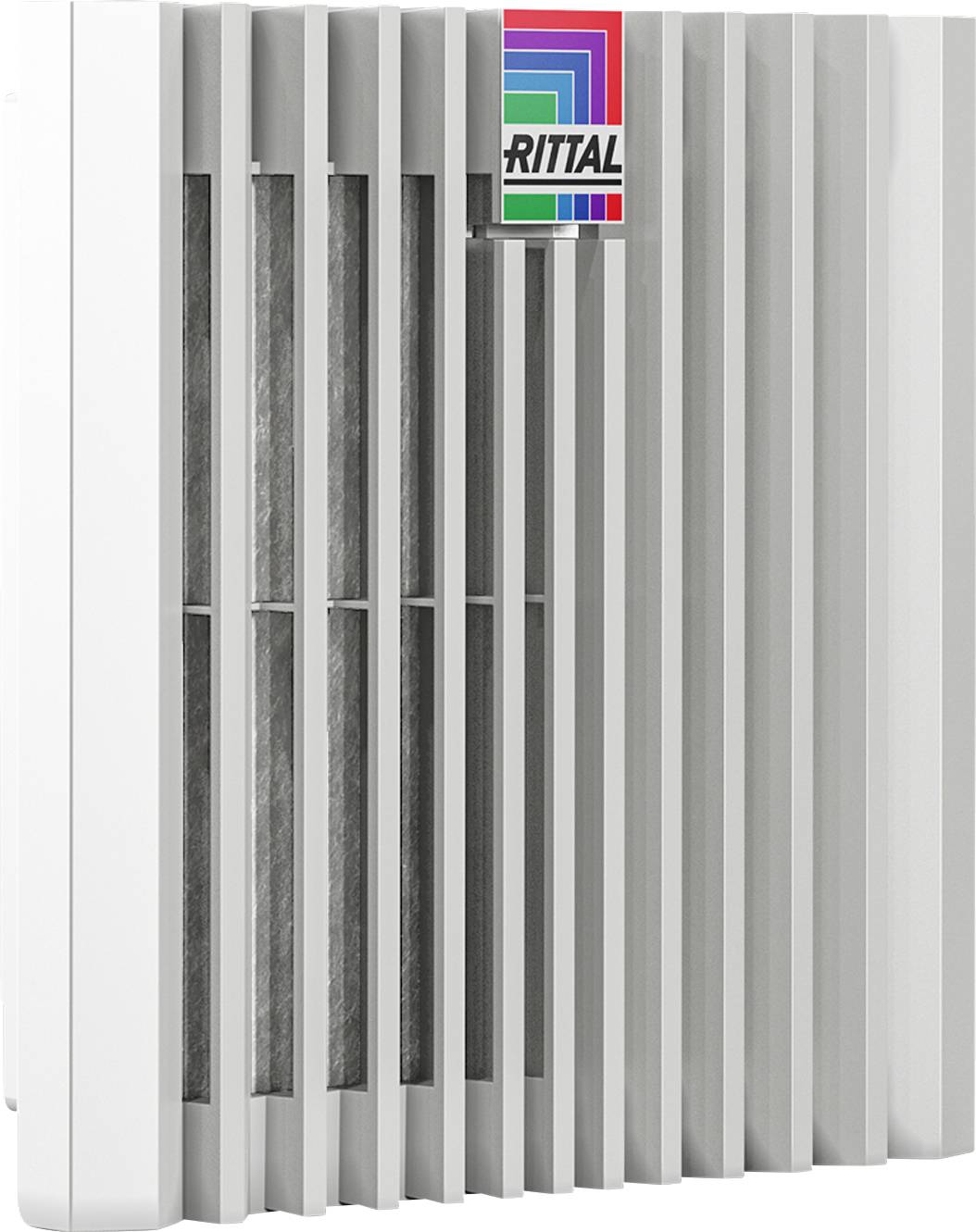

Rittal SK 3239.400 Filter (W x H x D) 204 x 204 x 45.8 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Filter
Width
204 mm
Height
204 mm
Depth
45.8 mm
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
Technical specifications
- Net weight: 0.3 kg
- Gross weight: 0.473 kg
- Dimensions: Width 204 mm
- Height: 204 mm
- Depth: 45.8 mm
- Benefit: Easy filter change through a new opening mechanism on the louver grid
- Faster mounting on the cabinet by optimized latching hooks
- Installation without any tools
- Colour RAL 7035
- Design: Wall-mounting
- EMC
- Weighs 0.39 kg
- Protection class NEMA: Type 12 with nonwoven filter
- Type 3
- Type 3R
- Type 4
- Type 4X with fleece filter and spray water hood
- Mounting cut-out width: 177 mm
- Outbreak - Height 177 mm
- IP to IEC 60 529: IP54 with nonwoven filter
- IP56 with fleece filter and jet-water hood
- Packaging type
Piece
- Product type
Filter
- Type
SK 3239.400
- Features
EMC
- Compatible with
Rittal
- Factory colour
Grey (RAL 7035)
IP54
IP56
- Width
204 mm
- Height
204 mm
- Depth
45.8 mm
- Dim
(W x H x D) 204 x 204 x 45.8 mm
- Weight
0.3 kg
- Content
1 pc(s)
Grey
204 mm
204 mm
45.8 mm
TRUE
Plastic
IP54
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386669 Rittal SK 3239.400 Filter (W x H x D) 204 x 204 x 45.8 mm Piece 1 pc(s)
Description
SK Blue e+ outlet filter, for filter fan 3239.8xx, EMC, BH 204 x 204 mm, RAL 7035
For ventilation through convection, one outlet filter can be used in both the lower and upper areas of the control cabinet.
This text is machine translated.
For ventilation through convection, one outlet filter can be used in both the lower and upper areas of the control cabinet.
This text is machine translated.
