Rittal SK 3243.308 Filter (W x H x D) 323 x 323 x 44.7 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Filter
Width
323 mm
Height
323 mm
Depth
44.7 mm
Type
SK 3243.308
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.

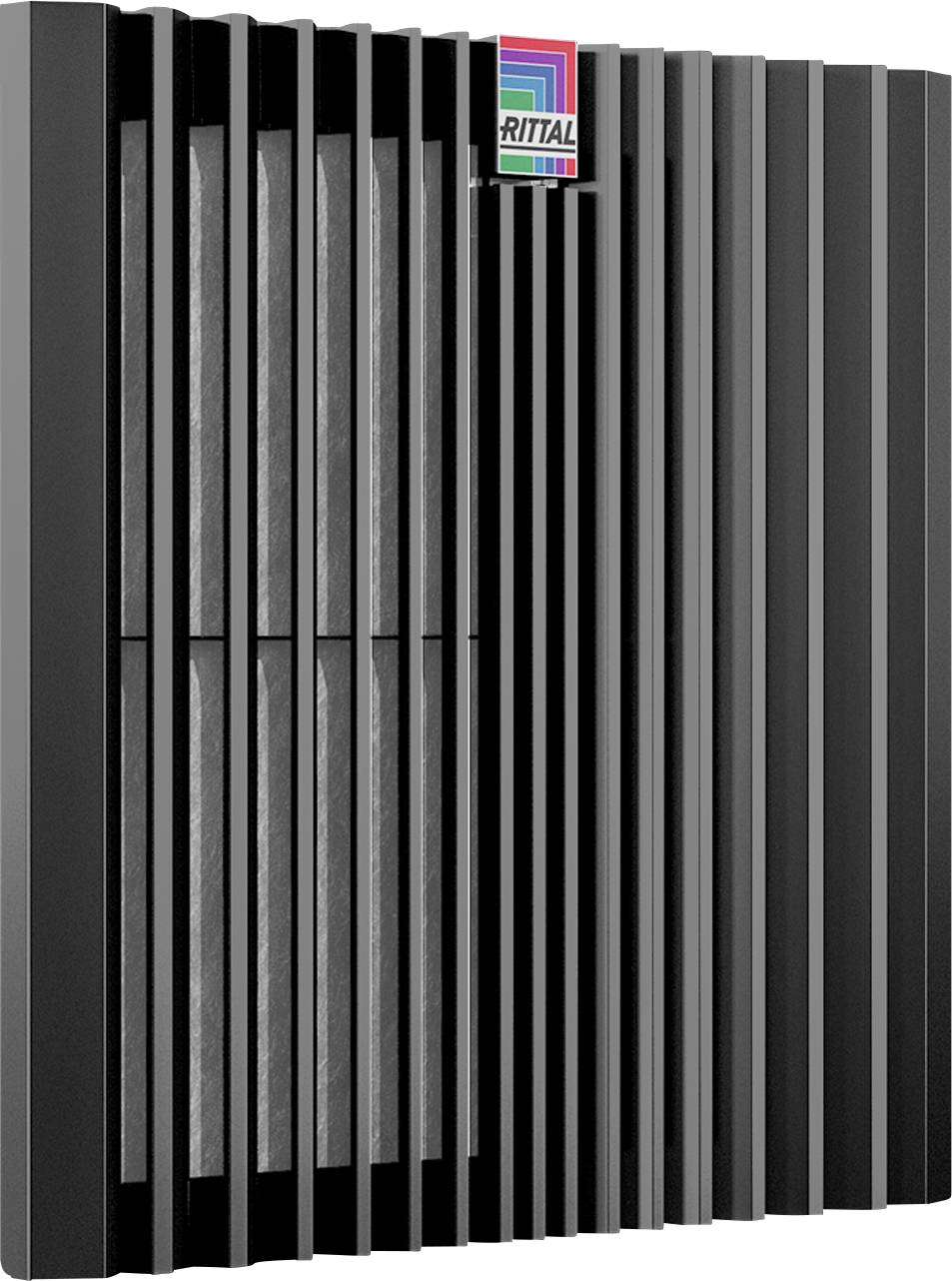

Blue e+ outlet filter, RAL 9005
Technical specifications
- Material: plastic
- Net weight: 0.94 kg
- Gross weight: 0.95 kg
- Dimensions: Width 323 mm
- Height: 323 mm
- Depth: 44.7 mm
- Benefit: Easy filter change through a new opening mechanism on the louver grid
- Faster mounting on the cabinet by optimized latching hooks
- Installation without any tools
- Colour RAL 9005
- Design: Wall-mounting
- Weighs 0.79 kg
- NEMA protection class: Type 12 with nonwoven filter/wrinkle filter
- Type 3
- Type 3R
- Type 4
- Type 4X with fleece filter/folding filter and spray water hood
- Mounting cut-out width: 292 mm
- Outbreak - Height 292 mm
- IP rating according to IEC 60 529:IP54 with fleece filter/folding filter
- IP55 with folded filter and absorption mat
- IP56 with fleece filter/line filter and jet-water hood
- Product type
Filter
- Type
SK 3243.308
- Features
incl. filter
- Compatible with
Rittal
- Factory colour
Black (RAL 9005)
IP54
IP55
IP56
- Width
323 mm
- Height
323 mm
- Depth
44.7 mm
- Dim
(W x H x D) 323 x 323 x 44.7 mm
- Weight
0.94 kg
- Content
1 pc(s)
Black
323 mm
323 mm
44.7 mm
FALSE
Plastic
IP54
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386680 Rittal SK 3243.308 Filter (W x H x D) 323 x 323 x 44.7 mm 1 pc(s)
Description
SK Blue e+ outlet filter, for filter fan 3243.7xx/3243.9xx/3244.7xx/3244.9xx/3245.9xx, BH 323 x 323 mm, RAL 9005
For ventilation through convection, one outlet filter can be used in both the lower and upper areas of the control cabinet.
This text is machine translated.
For ventilation through convection, one outlet filter can be used in both the lower and upper areas of the control cabinet.
This text is machine translated.
