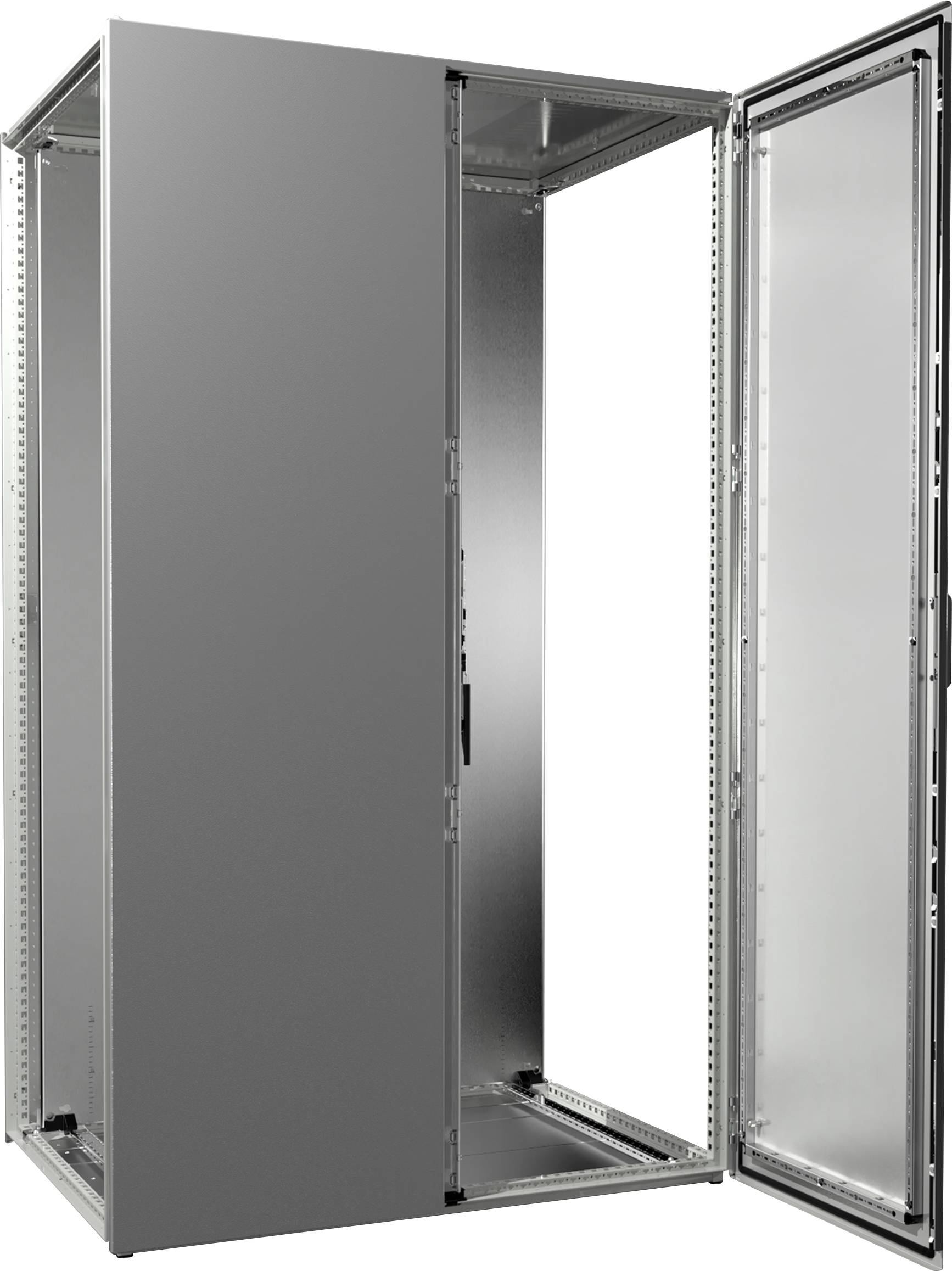

Rittal VX 8228.000 Switchboard cabinet 1200 x 2200 x 800 Steel plate Grey (RAL 7035) 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Switchboard cabinet
Material
Steel plate
Width
1200 mm
Height
2200 mm
Technical specifications
- Material: Cabinet frame: Steel sheet, 1.5 mm
- Roof: Sheet steel, 1.5 mm
- Door: Steel sheet, 2.0 mm
- Back wall: Steel sheet, 1.5 mm
- Floor panel: Steel sheet, 1.5 mm
- Mounting plate: Steel sheet, 3.0 mm
- Net weight: 425.485 lb
- Gross weight: 462.963 lb
- Surface: Cabinet scaffold: Dip-primed
- Door, roof and rear wall: Dip-primed, externally powder coated, textured finish
- Mounting plate and floor plates: Galvanized
- Dimensions: Width 1,200 mm
- Height: 2,200 mm
- Depth: 800 mm
- Colour RAL 7035
- Mounting plate dimensions (W x H) 1,099 x 2,096 mm
- IK code: IK10
- Number of doors: 2
- Base material: Steel sheet
- Protection class IP according to EN 60 529:IP 55
- NEMA 12 protection
- Packaging type
Piece
- Product type
Switchboard cabinet
- Features
with door
- Material
Steel plate
IP55
- Factory colour
Grey (RAL 7035)
- Type
dip-primed
- Width
1200 mm
- Height
2200 mm
- Dimensions
1200x2200x800 mm
- Weight
0.000
- Content
1 pc(s)
- Type
VX 8228.000
- Dim
(W x H x D) 1200 x 2200 x 800 mm
- Manufacturer part #
8228000
- Depth
800 mm
Grey
1200 mm
2200 mm
800 mm
7035
TRUE
2
1
FALSE
FALSE
FALSE
TRUE
Other
Steel
IK10
IP55
FALSE
TRUE
TRUE
FALSE
Powder coating
FALSE
FALSE
FALSE
FALSE
12
FALSE
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3389251 Rittal VX 8228.000 Switchboard cabinet 1200 x 2200 x 800 Steel plate Grey (RAL 7035) 1 pc(s) Piece
Description
VX Modular Cabinet System, BHT: 1200x2200x800 mm, sheet steel, with mounting plate, double door on front
The standard in switchboard construction: Cabinet frame with one or two front doors, rear wall, mounting plate, roof panel, split floor panels. Perfectly suitable for an efficient cabinet expansion.
This text is machine translated.
The standard in switchboard construction: Cabinet frame with one or two front doors, rear wall, mounting plate, roof panel, split floor panels. Perfectly suitable for an efficient cabinet expansion.
This text is machine translated.
