Name: Rohde & Schwarz NGA141 Bench PSU (adjustable voltage) 100 (max.) 2 A (max.) 40 W programmable, remote controlled No. of
Brand: Rohde & Schwarz
SKU: 2368725
Availability: BackOrder

'Rohde & Schwarz NGA100 Power Supply Unit with colour display shows 100.00 V and 0.400 A. Various control buttons and connections visible.'

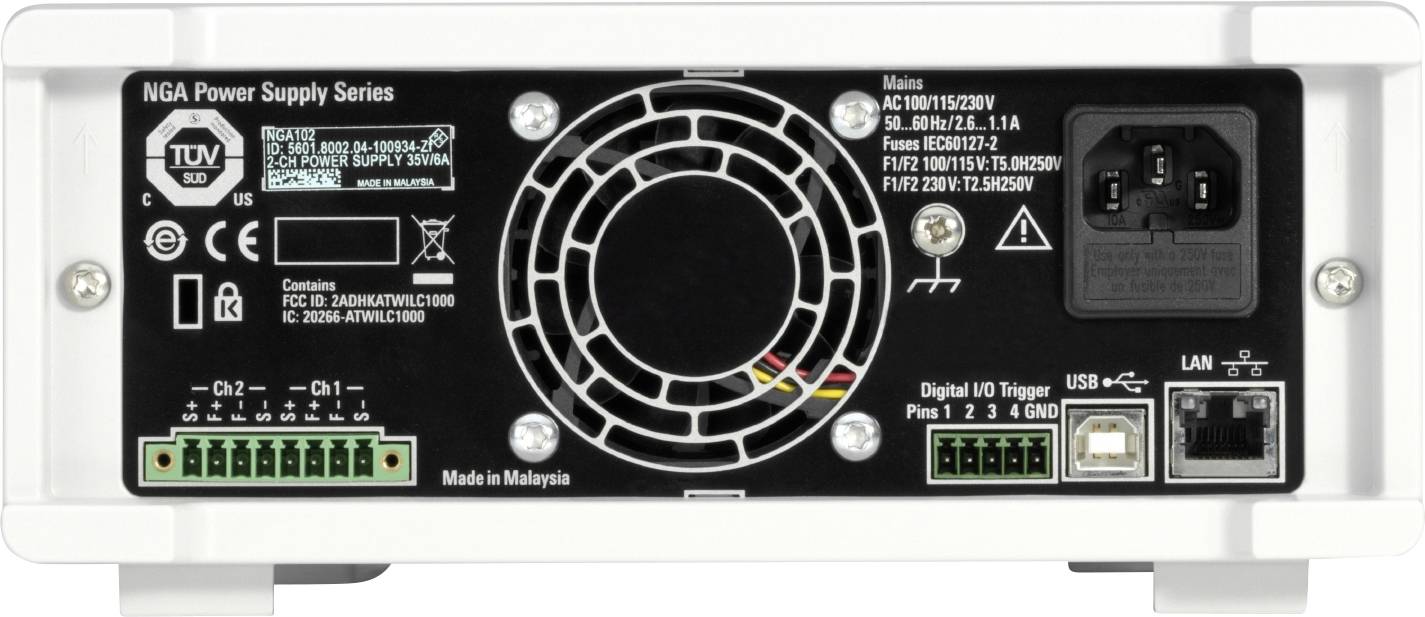

Rear view of a power supply unit with fan, connectors, product information, and safety certifications.

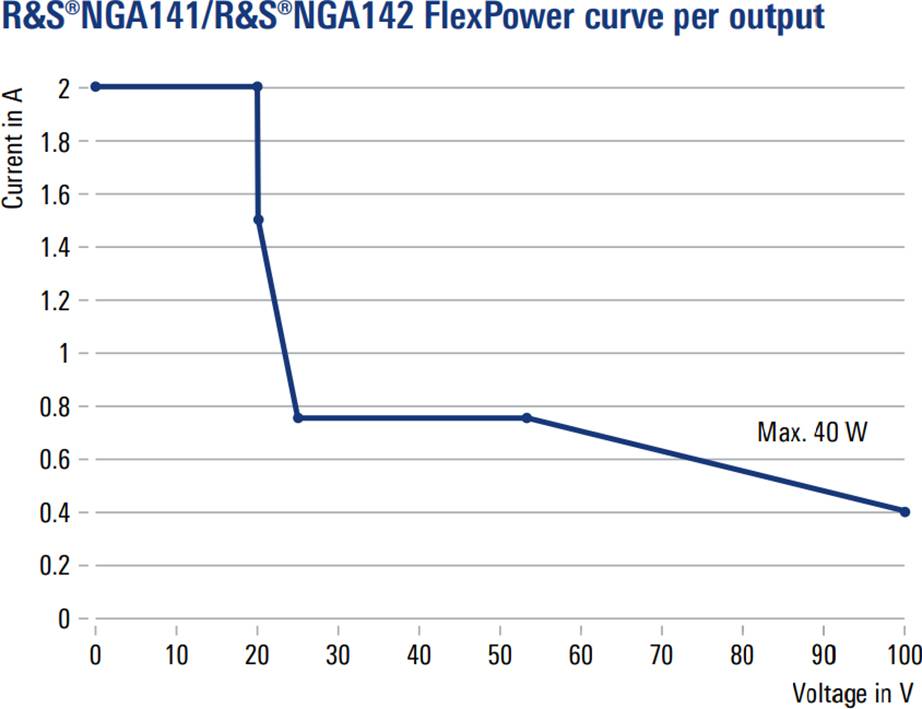

'FlexPower Curve for R&S®NGA141/R&S®NGA142 per Output', shows current in A decreasing with voltage in V, Max. 40 W.

1/3

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,715.00 / piece)

€ 1,715.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

No. of outputs 1 x
100 (max.) / 2 A (max.)
40 W
programmable, remote controlled

Technical specifications

Functions: EasyRamp
EasyArb
Low current measuring range
Remote sensing
Digital I/O.
3.5"/QVGA display

Type: NGA141

Product type: Bench PSU (adjustable voltage)

No. of outputs: 1 x

: 40 W

Technology: Linear regulated PSU

Features: programmable
remote controlled

Dim: (L x W x H) 448 x 222 x 97 mm

: Manufacturer's standards (no certificate)

Input voltage: 110 V AC
115 V AC
230 V AC

Weight: 6.9 kg

Connections: 4 mm safety terminals
8-pin terminal block (outputs
Remote access)

Output: USB
USB host
LAN
Wi-Fi

Output voltage (max.): 100 V

Max. output current: 2 A

Inputs: 110 V/AC 5 A, 250 V IEC 60127-2/5 T
115 V/AC 5 A, 250 V IEC 60127-2/5 T
230 V/AC 2.5 A, 250 V IEC 60127-2/5 T

Mains supply: IEC 320 C16

Width: 222 mm

Height: 97 mm

Length: 448 mm

Max. temperature: +5 °C

Min. temperature: +40 °C

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2368725 Rohde & Schwarz NGA141 Bench PSU (adjustable voltage) 100 (max.) 2 A (max.) 40 W programmable, remote controlled No. of

Description

Linear design
Modern electronic circuits are often complex and sensitive to disturbances on the supply line. The linear design of output stages allows the power supplies of the R&S®NGA100 to operate with minimum ripple and noise. The supply of extremely stable output voltage and current is crucial for the development of sensitive components.

High readback accuracy
The R&S®NGA100 power supply series has excellent programming and readout accuracy to accurately measure and map the actual power consumption of a device.
Even at low voltage and current values. These built-in measurements reduce the need for external multimeters and simplify setup.

Built-in statistics
The integrated statistics show the min. and max. values for power, voltage and current.

Independant channels (R&S®NGA102 and R&S®NGA142)
The two channels have completely separate circuits and are not connected to the housing ground was made easy by combining channels for bipolar circuits that may be
+12 V/-12 V. Both channels are electrically equivalent, with the same voltage, current and power. The two channels operate as separate power supplies and can be operated individually or simultaneously.

Flexpower
The R&S®NGA100 series works with maximum power at different operating points and covers far more applications than single-range power supplies. All possible voltage and current combinations are shown in the corresponding Flexpower curves.
