Rohde & Schwarz NGU201COM Network diagnostics Data logger
EAN:
Part number:
Item no:
Number
Total (€ 9,133.61 / piece)
€ 9,133.61
plus VAT.
Highlights & Details
Network analyzer R&S® NGU401-G.
- Two/four quadrants: Operation as source and sink
- Super-fast data recording (FastLog function)
- Voltage Priority Mode (Voltage Priority Mode) and Current Priority Mode (Current Priority Mode)
- High-capacitance mode (high-capacitance mode)
- Fast load regulation
Technical specifications
- Channels: 1
- Power output: 60 W
- Measuring range voltage: 0 ... 20 V
- Current measuring range: 10 UA ... 10 A
- Number of digits: 6-1/2 digits
- Input voltage: Min. 100 V
- Input voltage, max. 230 V
- Resistance measurement range max. 10 kOhm
- Resistance measurement range min.: 0 ohms
- Product type
Network diagnostics
Manufacturer's standards (no certificate)
- Power supply (details)
230 V AC
- Dim
(L x W x H) 61 x 43.6 x 34 cm
- Weight
7.1 kg
- Features
Data logger
- Width
43.6 cm
- Height
34 cm
- Length
61 cm

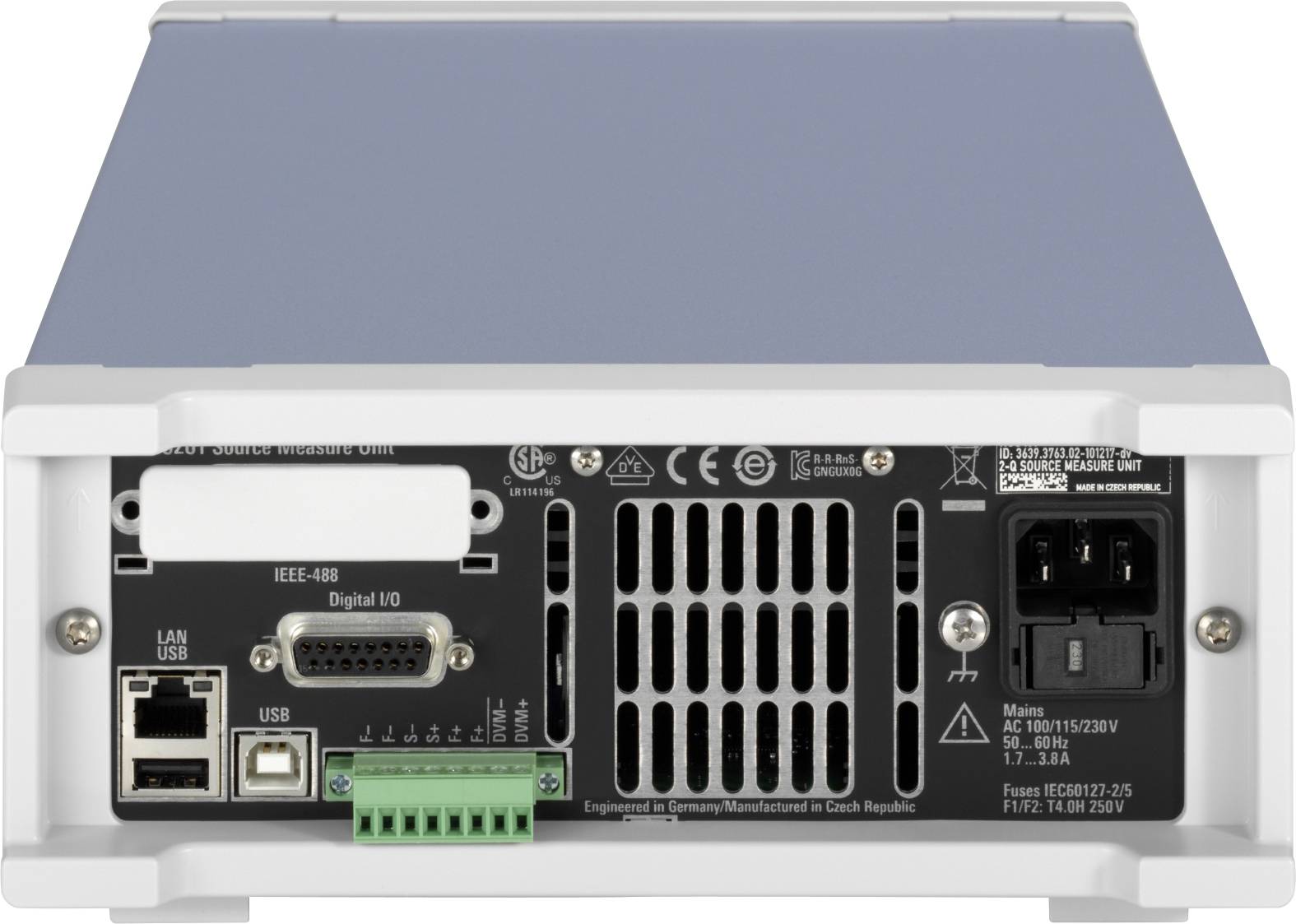

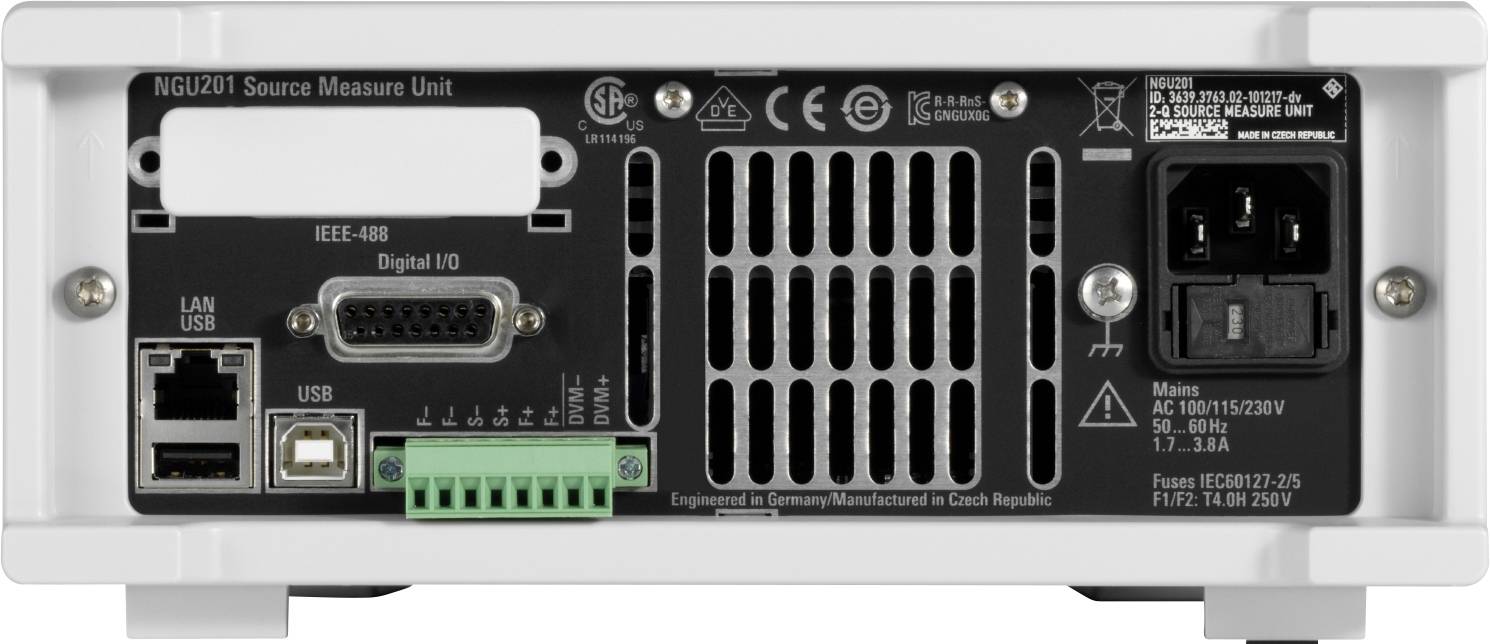

- Interfaces
1x USB 2.0 (device)
LAN
IEE488.2 SCPI/GPIB
RJ45 socket
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2368730 Rohde & Schwarz NGU201COM Network diagnostics Data logger
Description
The top class in terms of power supply
The R&S®NGU Source Measure Units (SMU) series power supplies are perfectly suited for demanding applications thanks to their very high accuracy and fast load balancing time. Thanks to a special design of the current measuring device, current measurements from Na to A can be carried out precisely in one, making was made obsolete by several measuring cycles. The fast load changes of the devices, such as those that occur when switching from sleep mode to transmission mode of mobile communication devices, can also be operated with the help of the short control times. Thanks to super-fast data recording, every detail is detected up to a resolution of 2 μs. The R&S®NGU Source Measure Units offer a two-quadrant architecture that allows them to act as both a source and a sink.
This text is machine translated.
Scope of delivery
- Source Measure Unit NGU201, Digital Trigger Option I/O NGU-K103, Digital Voltmeter Option NGU-K104, Battery Emulation Option NGU-K106
