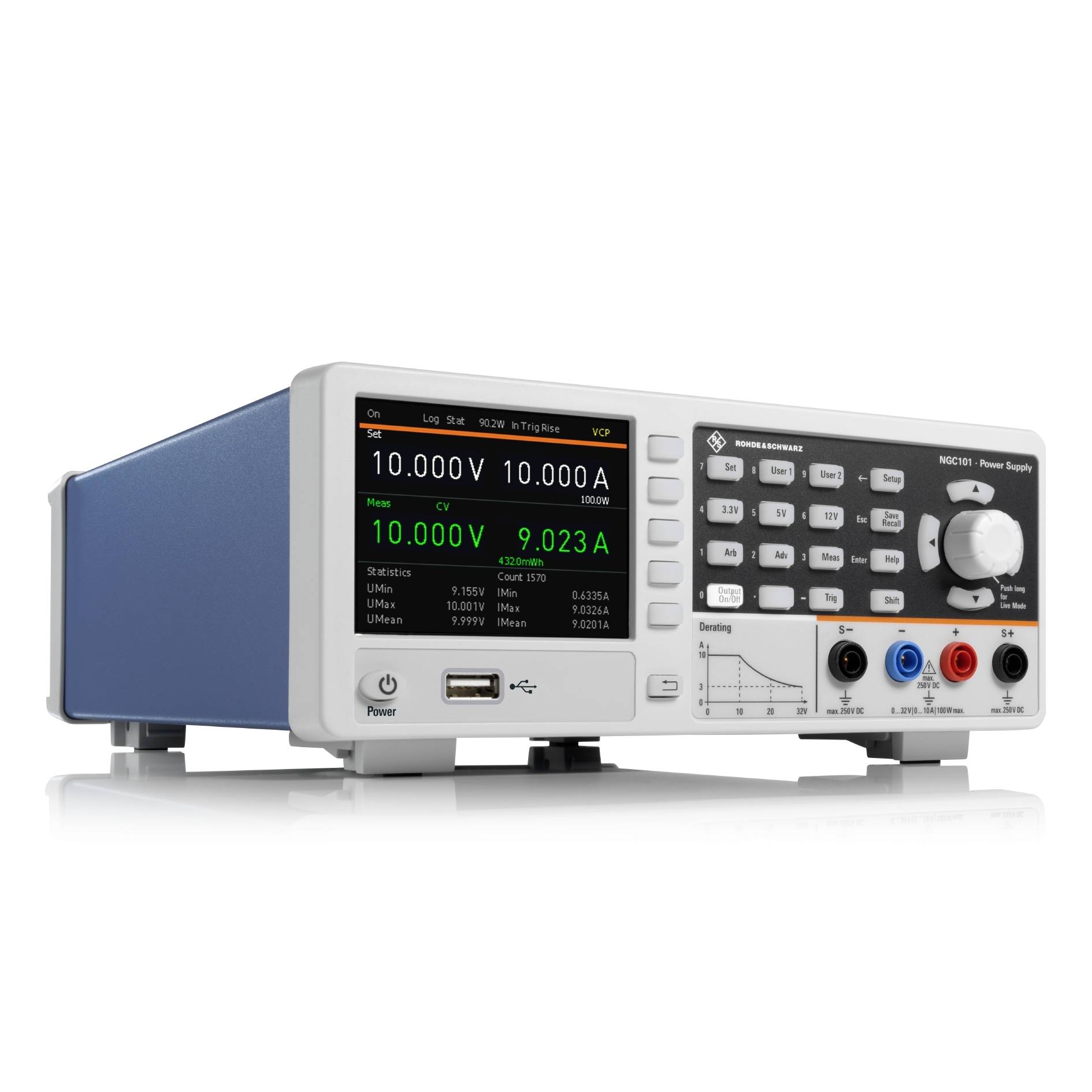

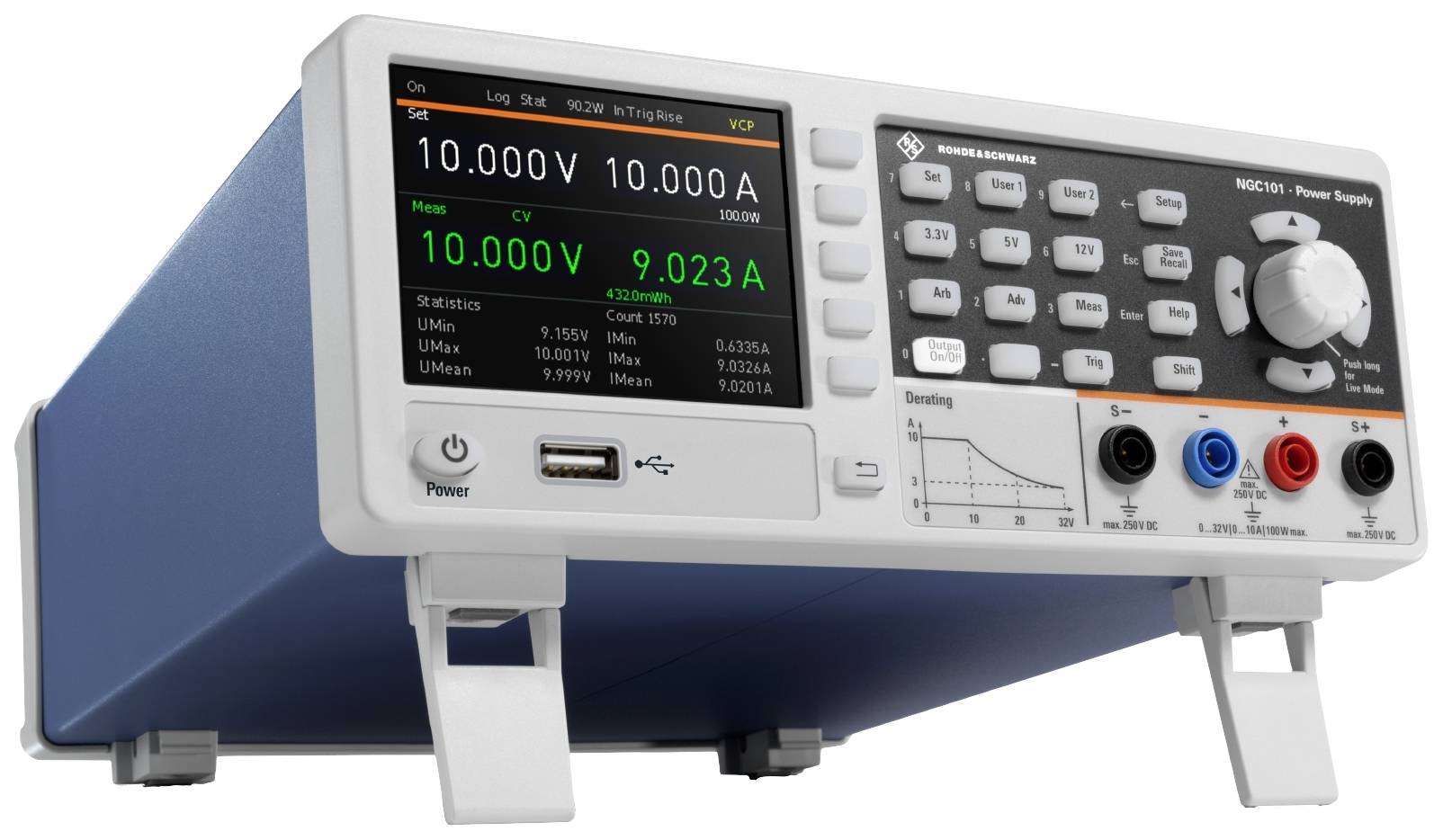

Rohde & Schwarz R&S®NGC101 Bench PSU (adjustable voltage) 32 (max.) 10 A (max.) 100 W No. of outputs 1 x

The feature-rich R&S®NGC100 family consists of three models, all with a maximum total power of up to 100 W and a continuous voltage range from 0 V to 32 V. The single-channel R&S®NGC101 delivers a maximum of 10 A, the two-channel R&S®NGC102 a maximum of 5 A and the three-channel R&S®NGC103 a maximum of 3 A per channel. The outputs are galvanically isolated, floating and protected against overload and short circuit. The electrically equivalent outputs of the two- and three-channel models make it possible for the user to switch several outputs in parallel or in series, in order to increase the voltage or current to up to 96 V or 10 A. The synchronization of the outputs, the performance of curve shape tests and the recording of data for detailed analyzes are a breeze with the R&S®NGC100 power supply series. An intuitive operating concept navigates the user quickly through the menus. All R&S®NGC100 power supplies have remote sense connectors, an external trigger input, an analog control interface, a USB and a LAN interface.
