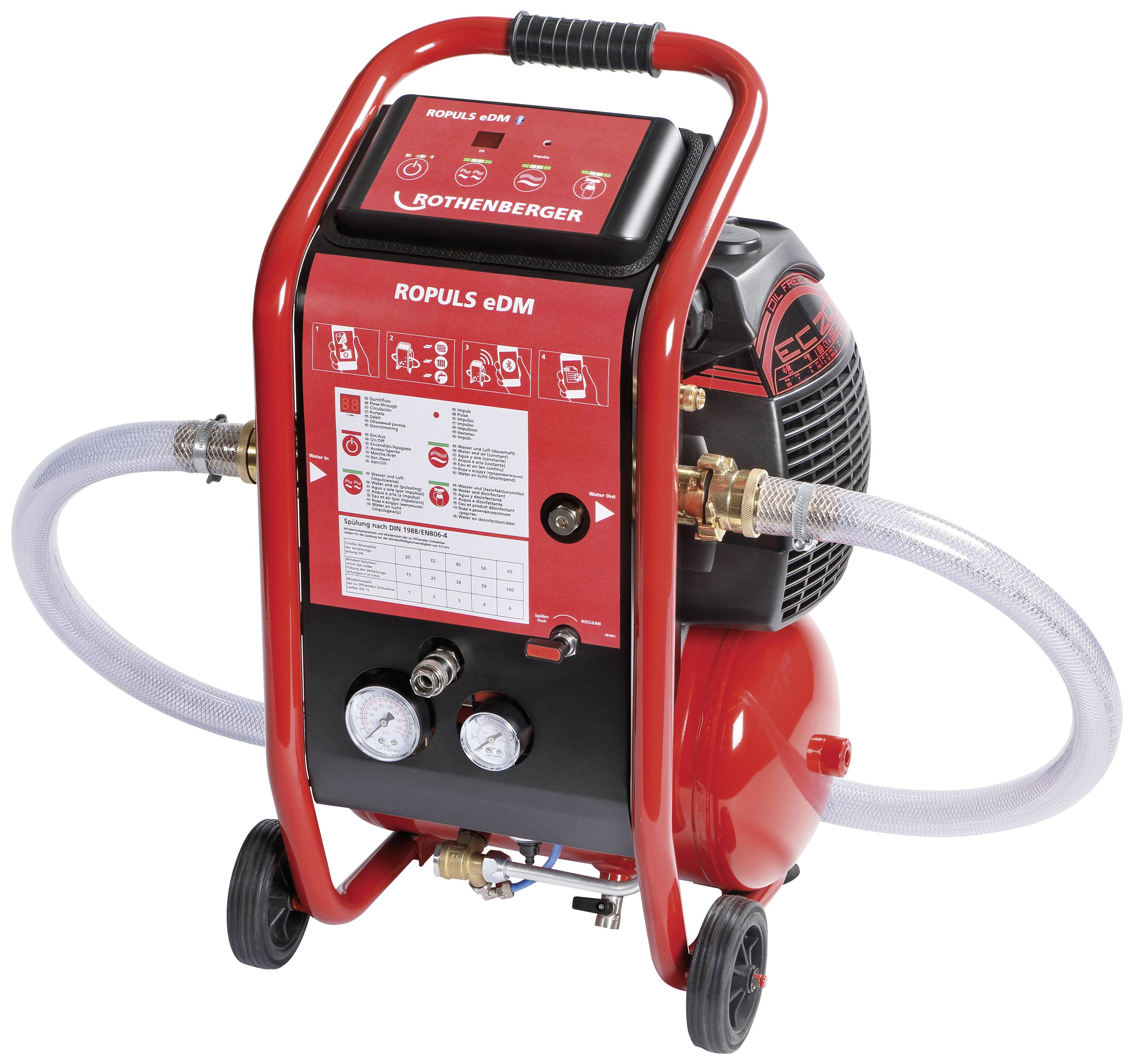

Rothenberger 1000001134 ROPULS eDM D Compressor
EAN:
Part number:
Item no:
Number
Total (€ 2,802.52 / piece)
€ 2,802.52
plus VAT.
14 days return policy included
Highlights & Details
ROPULS eDM D
- One device - three applications for safety and energy efficiency:flushing floor heating/heating circuitsRinse drinking water pipes in accordance with DIN 1988-2/EN 806Disinfecting drinking water pipesTwo rinse levels (impulse function and continuous air) for a good rinsing resultEasy to use thanks to clear control panelCompact dimensions for easy handling on the construction siteEasy and professional creation of a flush report as PDF by means of APPChemical cleaning with ROCLEAN accessories is possible
Technical specifications
- Pressure range 0 - 7 barInput power. 1,500 W .Frequency: 50 HzVoltage 220 – 240 VWorking area diameter: 3/8 - 2 inchesWorking range diameter 8 - 50 mmMains plug type: Plug-type F (CEE 7/4)Particle holding rate 0.3 μm compressorProtection class IP 20Water pressure 2 - 7 barWater temperature 0 °C - 30 °C.Operating pressure 8 bar
- Product type
Compressor
- Dim
(W x H) 680.0000 mm x 440.0000 mm
- Weight
28 kg
- Content
1 pc(s)
- Width
680.0000 mm
- Height
440.0000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2797679 Rothenberger 1000001134 ROPULS eDM D Compressor
Description
For installers and users in building service, the ROPULS eDM dishwasher compressor is ideal for cleaning and extinguishing heating circuits, for rinsing drinking water lines in accordance with DIN 1988-2/EN 806-4 and for disinfecting drinking water lines. A flushing protocol created by means of APP can be sent immediately as a PDF with company header and all relevant data by e-mail.
This text is machine translated.
This text is machine translated.
Scope of delivery
- ROPULS eDM D2x 1m FABRIC hose 1" with GK coupling
