Rothenberger 12522 Pipe expander
EAN:
Part number:
Item no:
Number
Total (€ 779.00 / piece)
€ 779.00
incl. VAT
14-day return policy included
Highlights & Details
ROLOCK ept set 12-16-18-22-28mm
- No costs for fittings and storage
- Rework from pipe pieces to bushes
- Up to 50% savings in the costs of working time, soldering material, soldering joints and energy as compared to the fitting connection
- Secure pipe connection as per DVGW
- Robust, light and low wear
- Exact adjustment of the capillary gap
- ept technology – inner knee-lift
Technical specifications
- Product type
Pipe expander
- Compatible with diameters of
12 - 28 mm
- Suitable for diameters of (max.)
28 mm
- Suitable for pipe diameter (min.)
12 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551451 Rothenberger 12522 Pipe expander
Information
Information 3551451 Rothenberger 12522 Pipe expander
Description

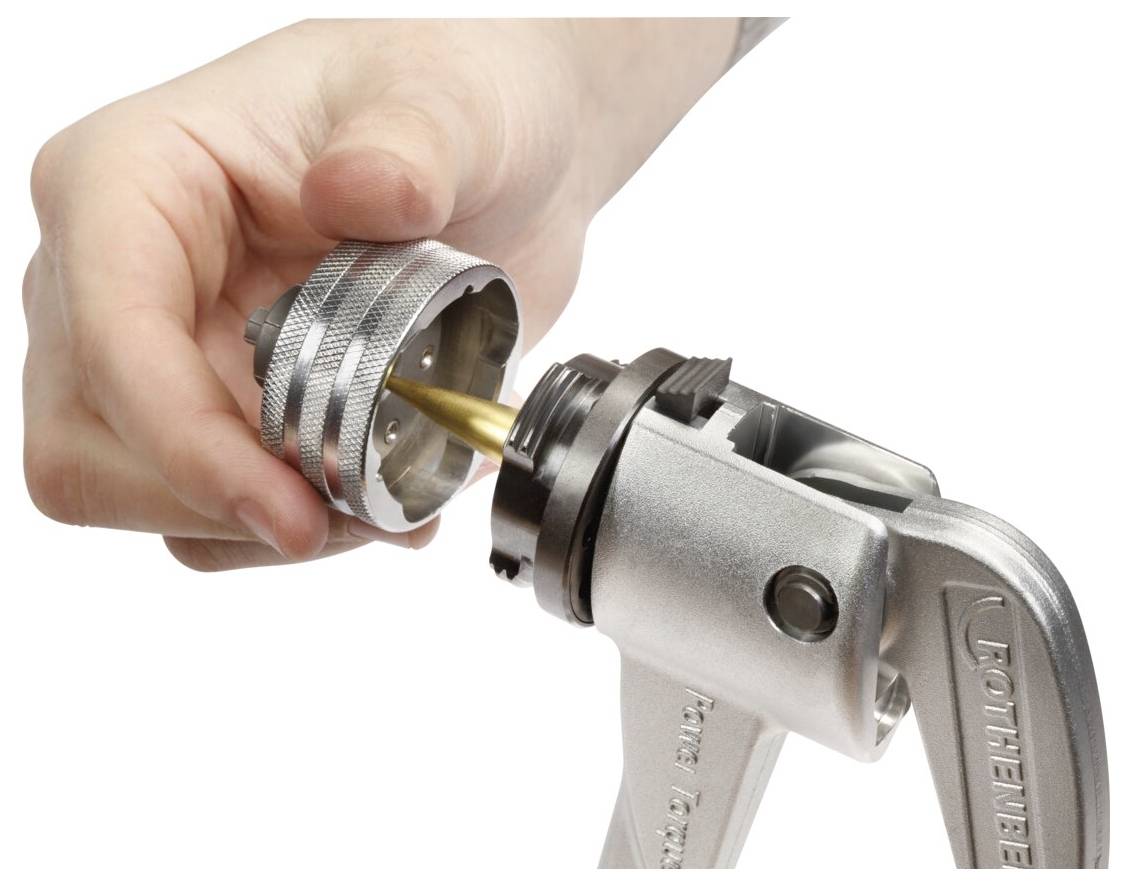

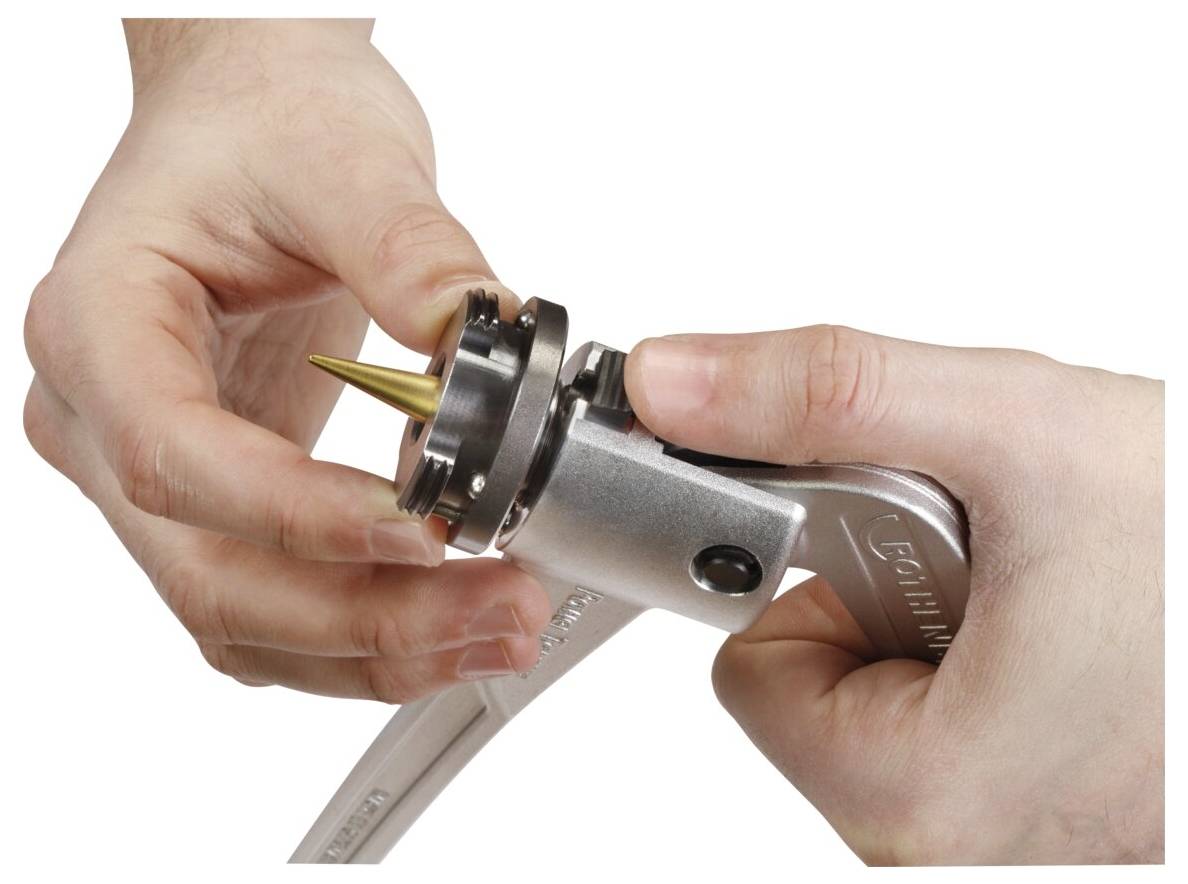

The ROLOCK Expander Power torque expander pliers is a tool for expanding copper, stainless steel and aluminum pipes with a diameter of 12-16-18-22-28 mm. The universal wear protection layer and the high hardness of the expansion spike is achieved by the TiN coating. Protection against contamination and at the same time power-saving work is achieved by the ept-technology (closed Power transmission technology). Increased durability and load capacity of the expander head, with specially hardened segments. Using ROLOCK saves up to 50% of the cost of working time, soldering material, solder joints and energy compared to fittings. The bayonet catch allows for a quick change of the expander head.

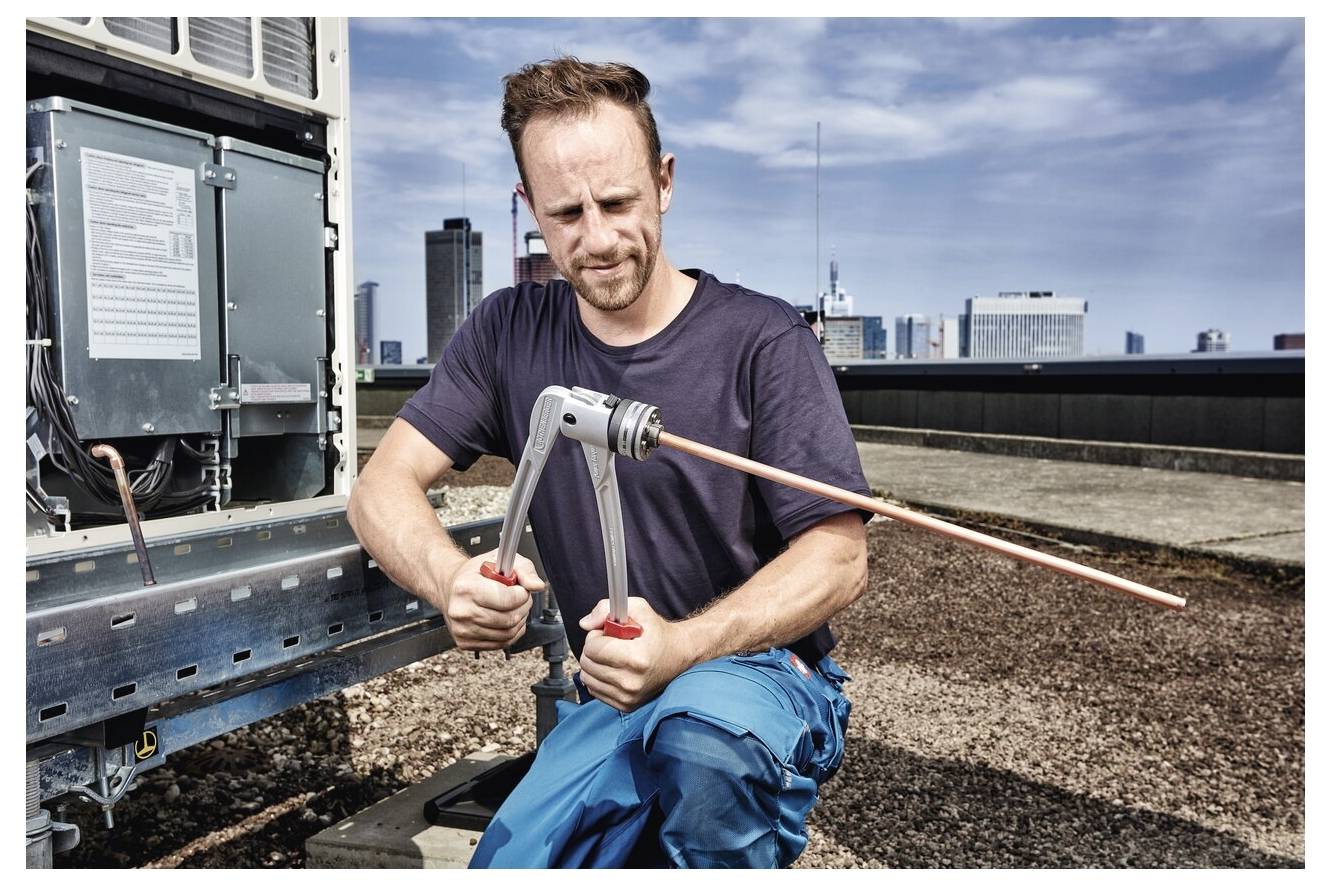

For expanding and calibrating soft and semi-hard copper tubes, as well as for manufacturing reductions in sanitary/heating and air-conditioning systems. Suitable for pipes from: Copper (soft and semi-hard): 12-16-18-22-28 mm, max. Wall thickness 1.5 mm Aluminium (soft): 12-16-18-22-28 mm, max. Wall thickness: 1.5 mm Precision steel (soft): 12-16-18-22-28 mm, max. Wall thickness 1.5 mm.
This text is machine translated.
For expanding and calibrating soft and semi-hard copper tubes, as well as for manufacturing reductions in sanitary/heating and air-conditioning systems. Suitable for pipes from: Copper (soft and semi-hard): 12-16-18-22-28 mm, max. Wall thickness 1.5 mm Aluminium (soft): 12-16-18-22-28 mm, max. Wall thickness: 1.5 mm Precision steel (soft): 12-16-18-22-28 mm, max. Wall thickness 1.5 mm.
This text is machine translated.
Scope of delivery
- ROLOCK ept expander pliers
- Expander head ROLOCK, 12 mm
- Expander head ROLOCK, 16 mm
- Expander head ROLOCK, 18 mm
- Expander head ROLOCK, 22 mm
- Expander head ROLOCK, 28 mm
- Inside-outside deburrer
- Steel sheet box with insert for ROLOCK Expander.
