Buy Rothenberger RODIA PRO RIG 250 / RODIADRILL 200 -Core drill 4.000 W 230 V

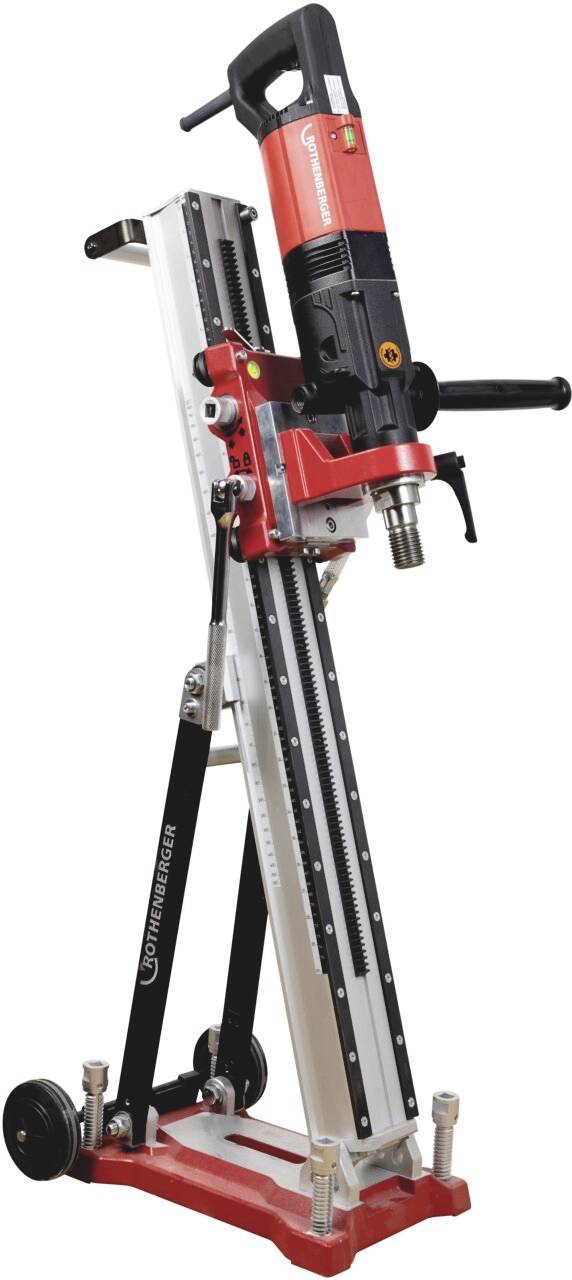

Portable diamond core drill rig with motorized drilling unit mounted on a vertical guide rail and base stand.

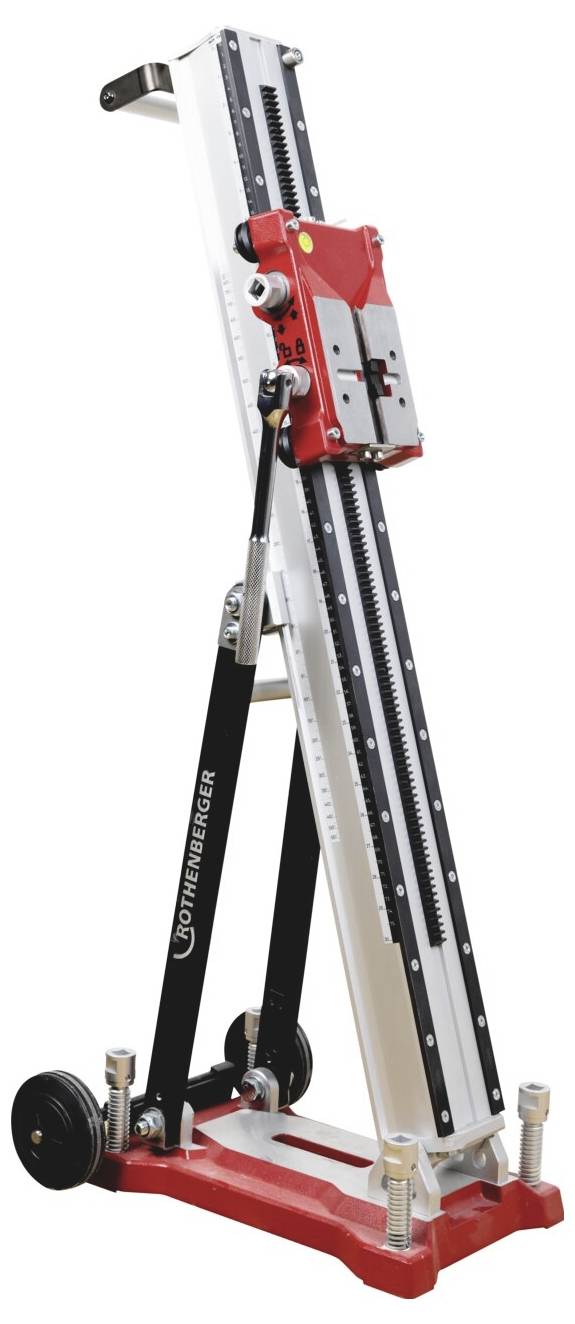

A red and black upright drilling stand with a guide rail, hand crank, wheels, and base clamps, used to position a drill vertically.

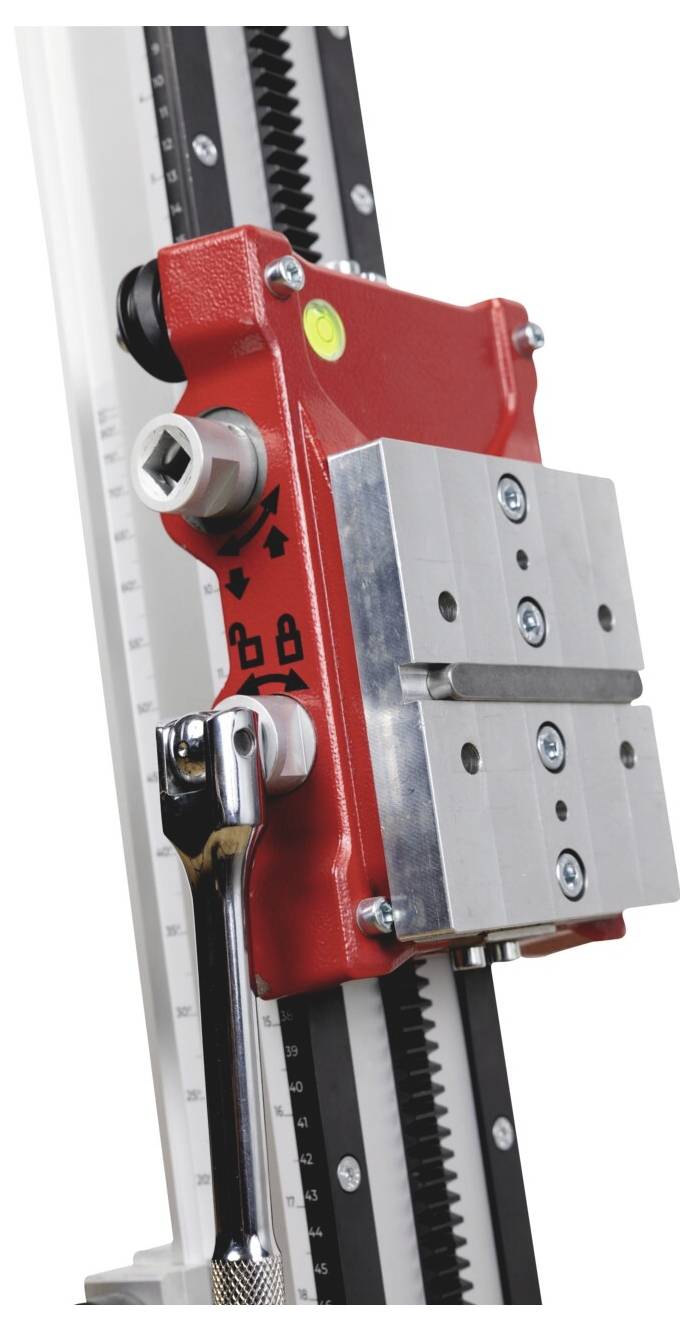

Close-up of a red linear actuator carriage with a silver mounting block on a vertical rail, likely part of an industrial machine or 3D printer.

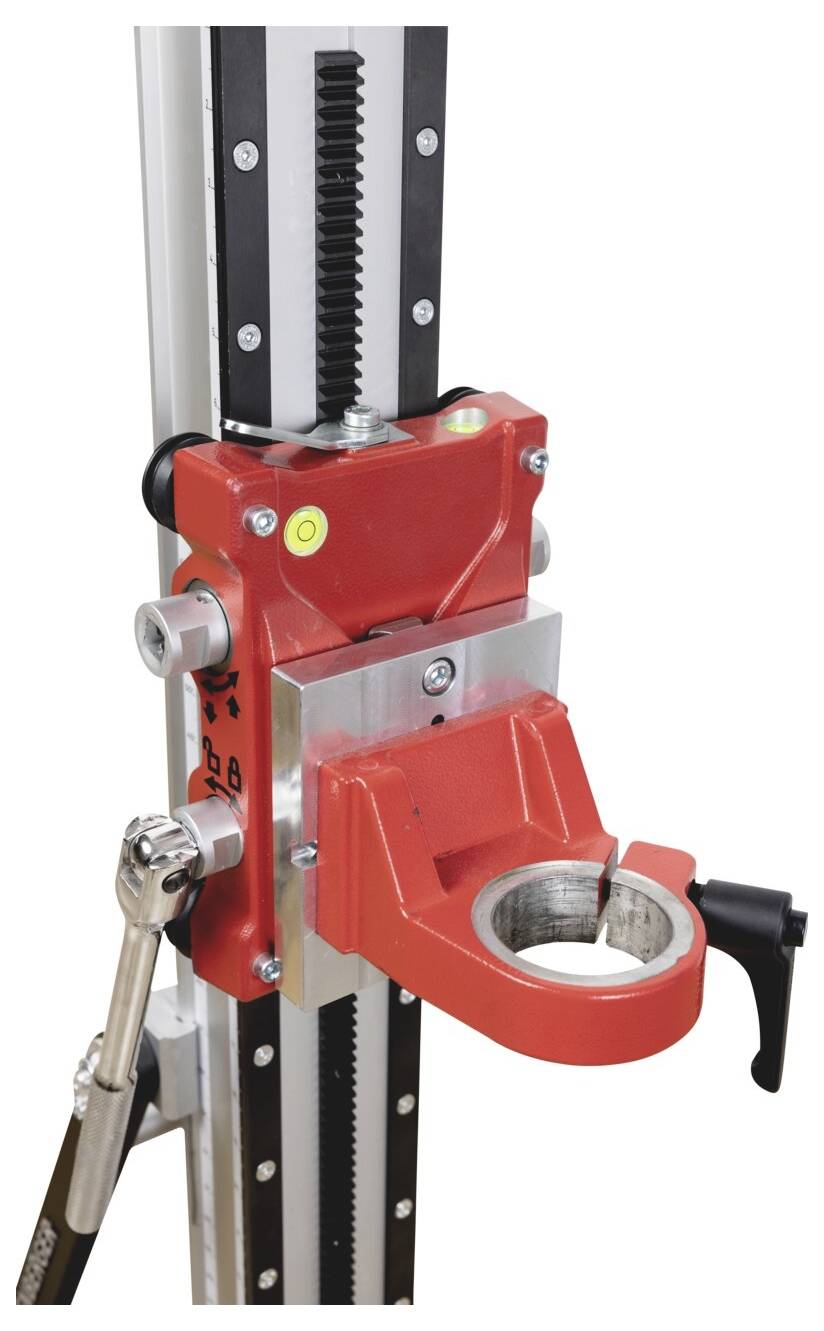

Close-up of a red adjustable clamp or mounting bracket attached to a vertical metal rail, with a circular holder and locking lever.

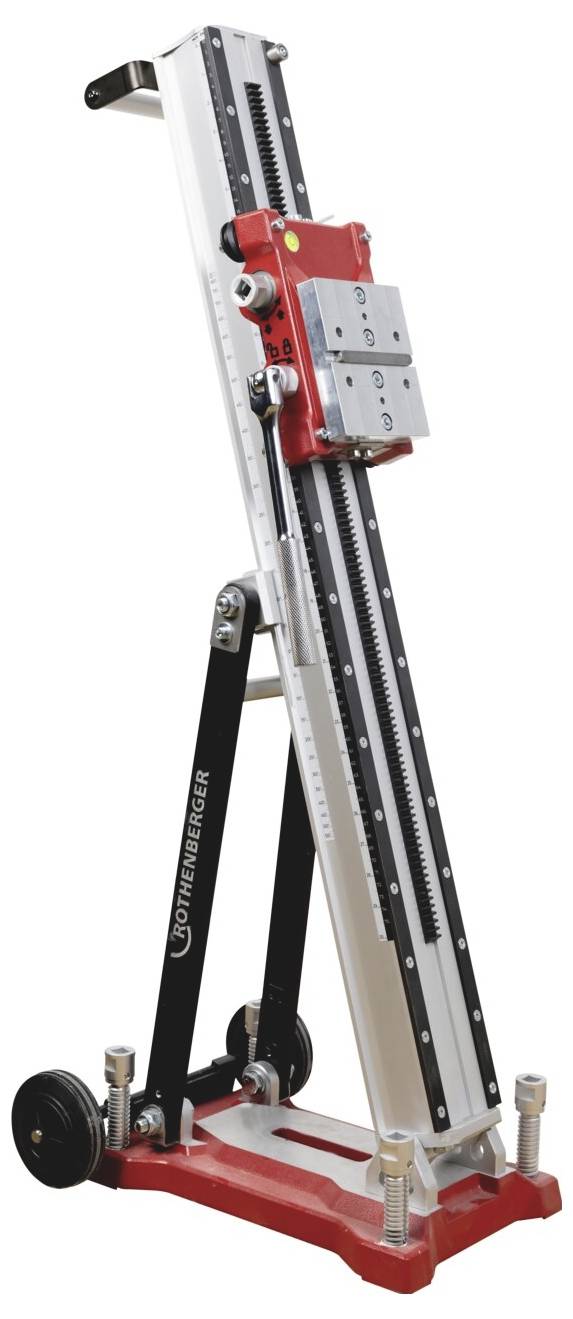

Adjustable red-and-silver mechanical lifting stand with a tall vertical rail, crank handle, and support legs on a base<br>

1/5

Dispatches on Tue, 29 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 2,368.91 / piece)

€ 2,368.91

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

DRILLING SYSTEM RODIA PRO RIG 250 / RODIADRILL 200

4.000 W
Max. drill bit Ø 400 mm

Technical specifications

Type: Diamond drill system

Product type: Core drill

: 4.000 W

Output rating: 4.000 W

Voltage: 230 V

Max. drill diameter: 400 mm

Operating voltage: 230 V

Idle speed: 3200 U/min

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3774078 Rothenberger RODIA PRO RIG 250 / RODIADRILL 200 -Core drill 4.000 W 230 V

Description

The diamond drill system RODIA PRO RIG 250 / RODIADRILL 200 enables stationary drilling of 32-250 mm. For fast, accurate and tool-free alignment of the drill stand, a vertical and a horizontal level with leveling system is provided. A single operation, of the drilling system, is made possible by the light aluminum construction.

This text is machine translated.

Scope of delivery

Boring motor RODIADRILL 200
DRILL STAND RODIA PRO RIG 250
Mounting set concrete
Water switch+adapt.for plug-+garden clutch
Hammer drill SDS Plus, 16x210mm
Tool pouch
SaveRave earplugs in aluminum can
Work gloves,light rubber,1 pair
Safety goggles - Uvex
Operating instructions RODIADRILL 200
Operating instructions for drill stand RODIA PRO RIG 250

Hints

The diamond drill system is designed for the generation of stationary wet drilling up to Ø 250 mm in (reinforced) concrete and stationary dry drilling up to Ø 250 mm in masonry. With a maximum drilling depth of 430 mm, this drilling system is indispensable for professional use in areas where precise drilling is required.
