Buy Sauter HMM Hardness tester Leeb 170 - 960 HLD

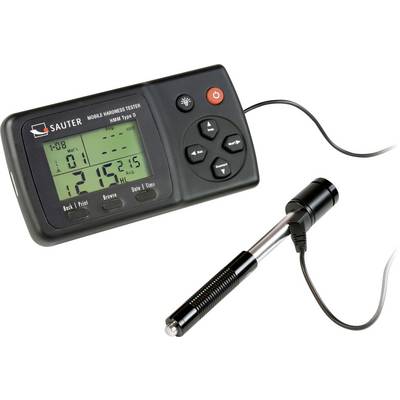

Portable hardness tester with digital display and marked buttons. Display shows measurement values. Testing device connected by cable.

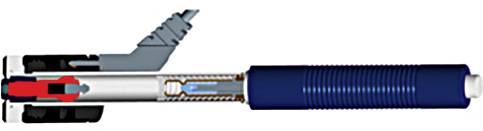

Cross-section of a technical device with blue and red components, showing internal parts and structure.

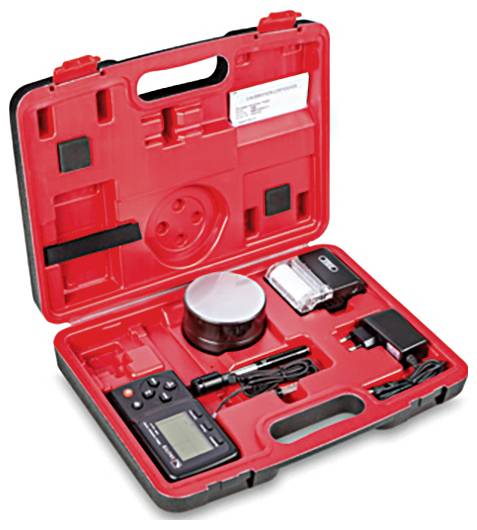

Red tool case with measuring instruments and accessories. Contains a digital device with display, charger, cable and other small parts.

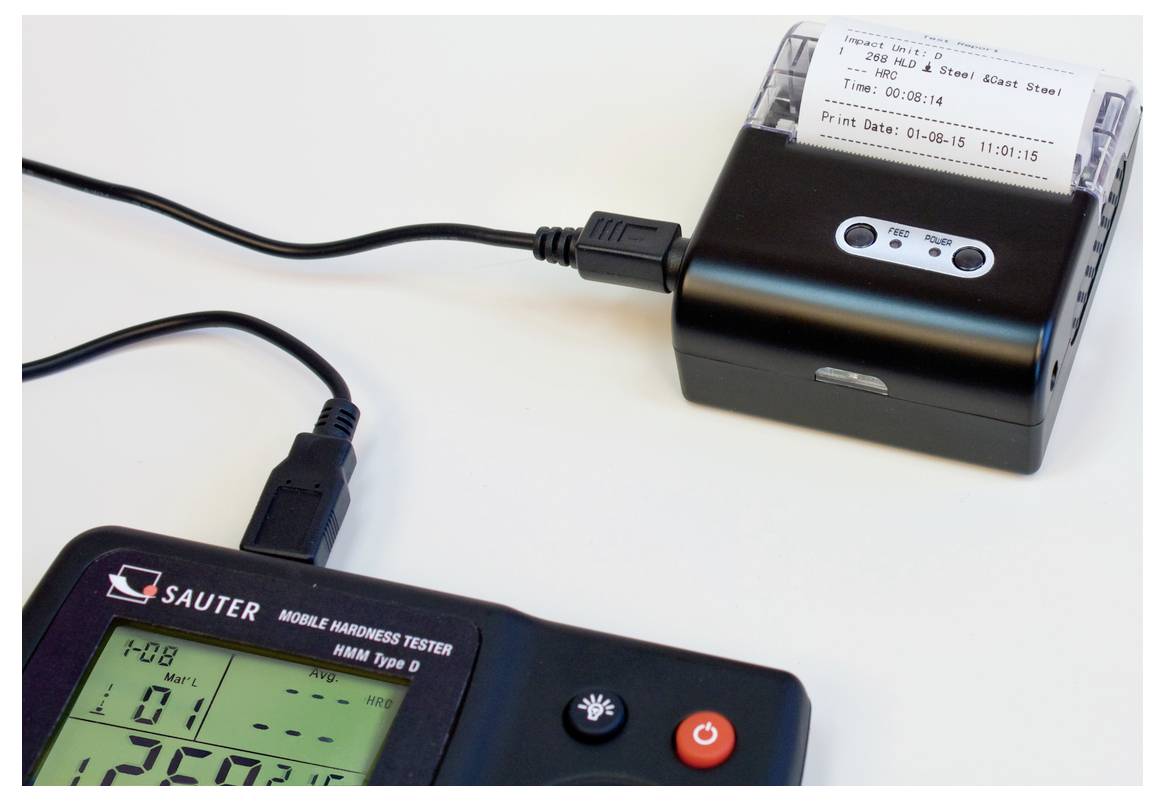

'Digital hardness testing device with printer, displays measurement results, connected via USB cable. Screen and printer in the foreground.'

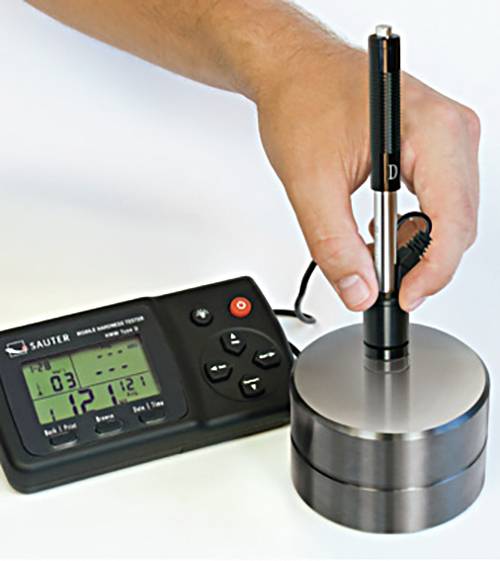

A hand holds a hardness testing device resting on a cylindrical metal block. A digital display device is positioned to the right of it.

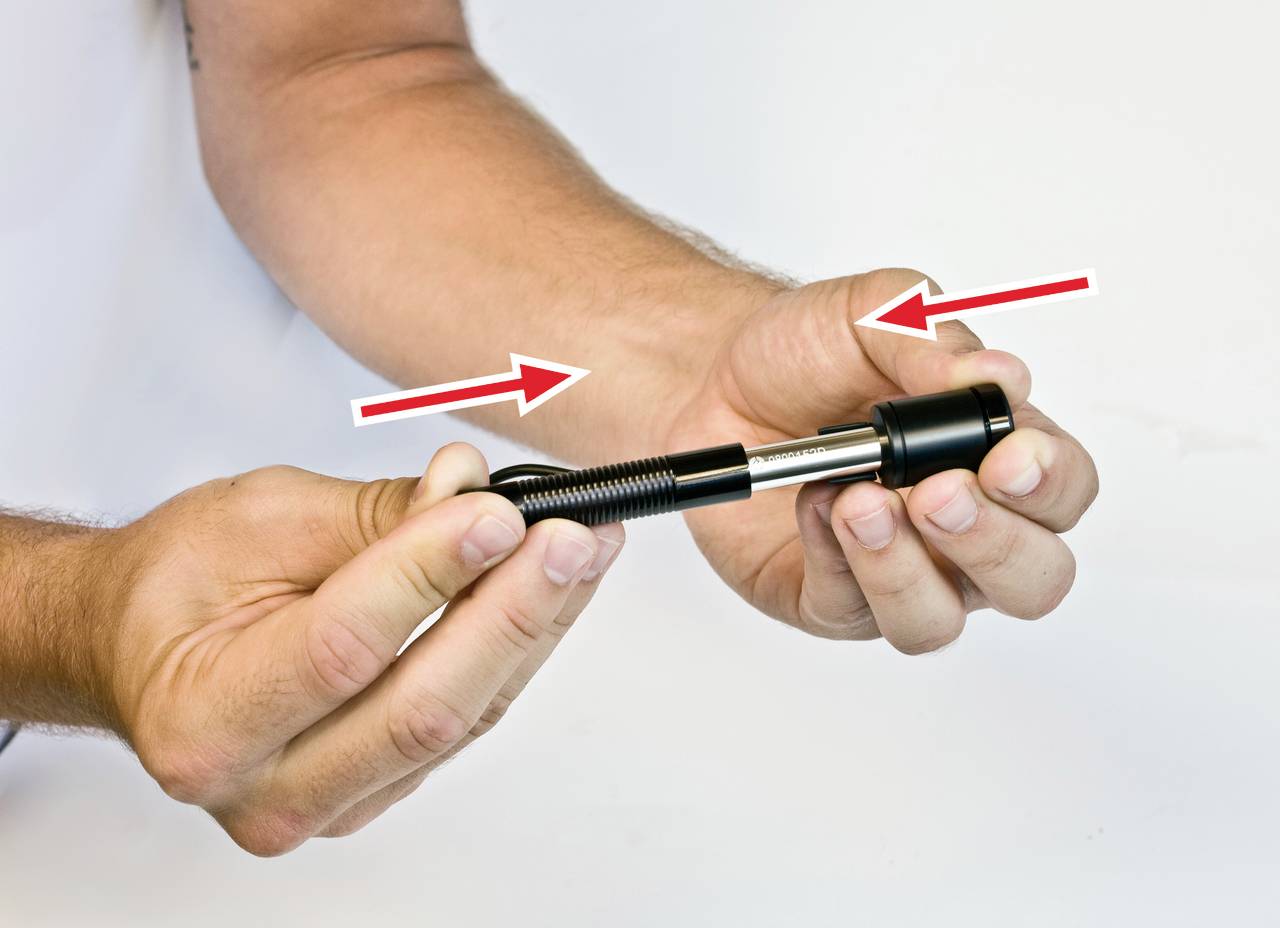

A person is holding a handy device with two hands, with arrows pointing to the junction of the parts, possibly for assembly or disassembly.

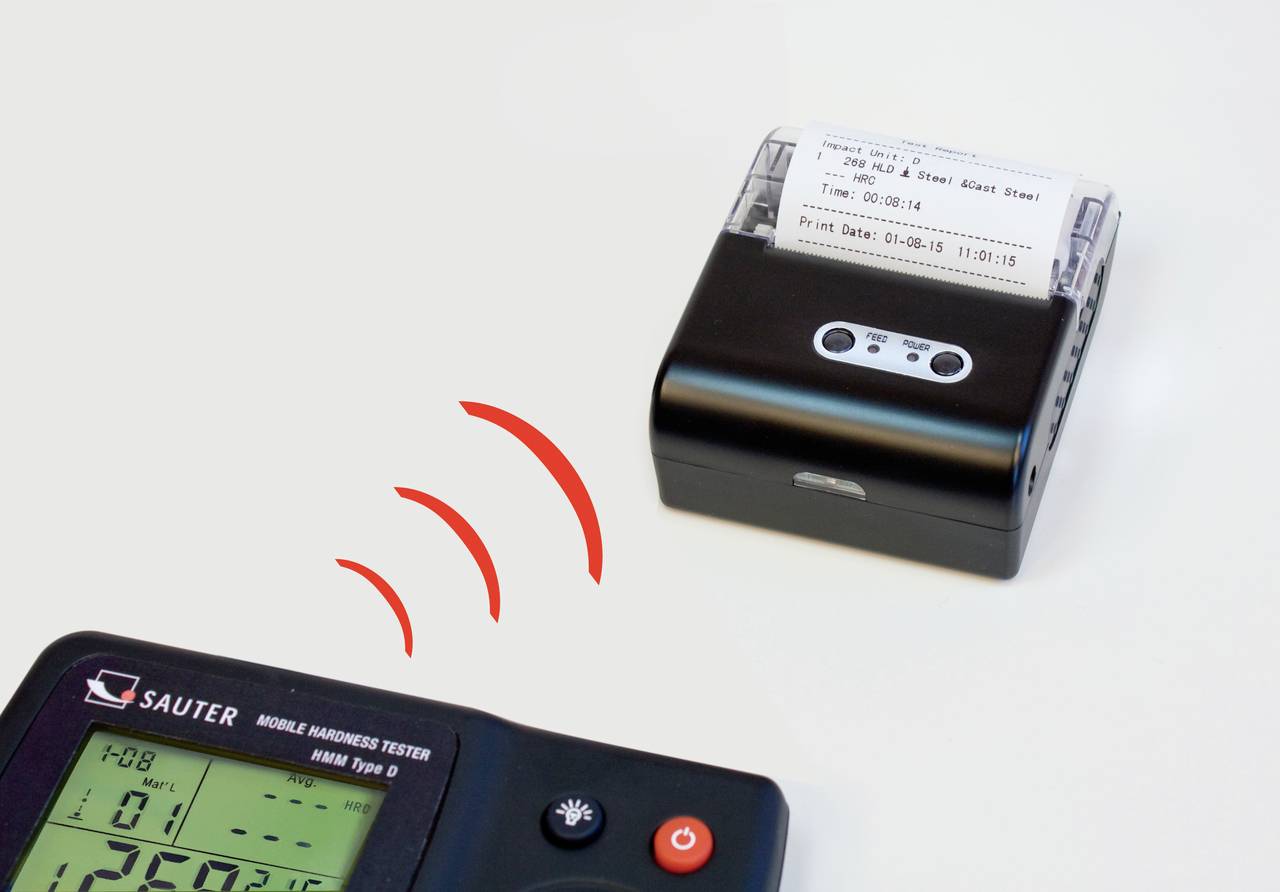

A mobile hardness testing device displays measurement values on a screen, which are wirelessly transmitted to a compact printer that prints the data.

1/7

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

20 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,239.50 / piece)

€ 1,239.50

plus VAT.

Report legal concerns

Highlights & Details

Hardness tester HMM

Including rebound sensor (type D)
Automatic sensor detection
Mini statistics function
Automatic unit conversion

Technical specifications

Rebound Energy 11 Nmm
Mass rebound body 5.5 g
Test tip 3 mm
Rebound length 147 mm
Weight of the rebound sensor 75 g
±6 HL (at 800 HLD)
Display details: Rockwell (B&C), Vickers (HV), brinell (HB), Shore (HSD), leeb (HL) and tensile strength (MPa).

Reading range: 170 - 960 HLD

Dim: (L x W x H) 150 x 80 x 30 mm

Weight: 200 g

Content: 1 pc(s)

Height: 30 mm

Length: 150 mm

Width: 80 mm

: Manufacturer's standards (no certificate)

Display type: Digital

Interfaces: Serial

Measuring type: Leeb

Product type: Hardness tester

Documents & Downloads

Datasheet

Datasheet 103609 Sauter HMM Hardness tester Leeb 170 - 960 HLD

User & Safety Instructions

User & Safety Instructions 103609 Sauter HMM Hardness tester Leeb 170 - 960 HLD

Information

Information 103609 Sauter HMM Hardness tester Leeb 170 - 960 HLD

Description

The mobile leeb-harteprufgerat is characterised by extensive functionality and demanding applications. The device offers compared with stationary table top equipment and hardness testers with internal sensor a highest level of mobility and flexibility in use. By the rebound module is a spring against the test object geschnellt. Depending on the hardness of the object, the kinetic energy of the module absorbed. The speed reduction is measured and converted in Leeb-Hartewerte.

This text is machine translated.

Features

Serial connection.
IR printer connection
Rebound sensor
Testing in all test directions (360°)
Hard Comparison block and guide ring
Internal data storage
Mini statistics function
Automatic unit conversion (Rockwell (B&C), Vickers (HV), brinell (HB), Shore (HSD), leeb (HL) and tensile strength (MPa)).

Scope of delivery

Carrying case
Test Block
Printers
Stabilization ring
Cleaning brush
Rebound sensor type D
User manual.

Hints

Delivery without test block
