Buy Sauter HMM-NP Hardness tester Leeb 170-960 HL

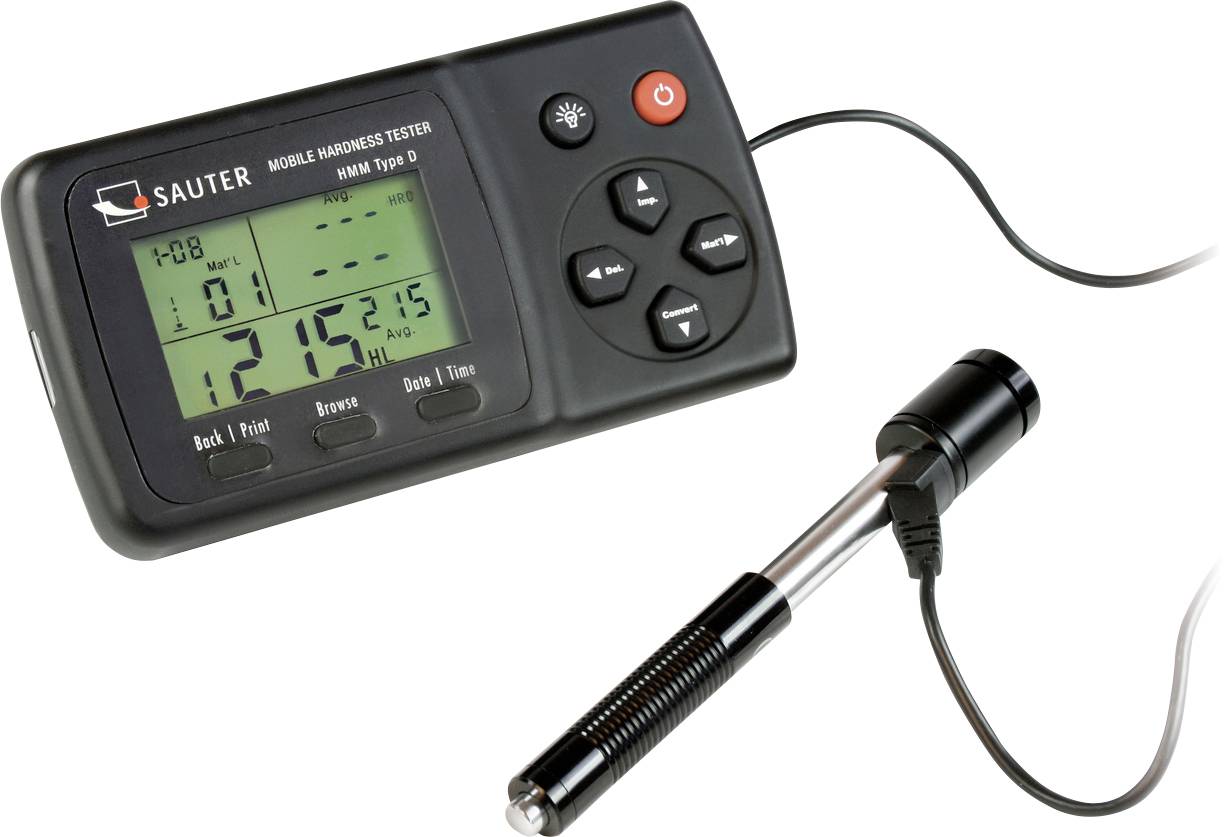

A mobile hardness testing device with a digital display shows measurement values. Below are control buttons. A probe is connected.

Cross-section of a blue pen nib, showing internal mechanism and ink reservoir. Details of nib and hatched grip area visible.

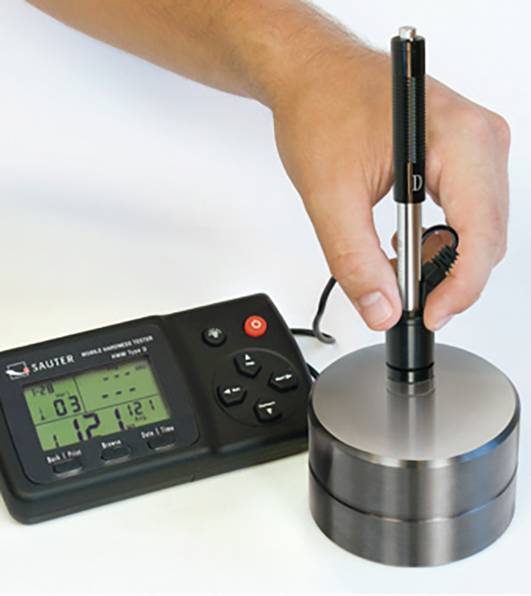

'A hand is holding a hardness testing device positioned on a cylindrical metal block. Next to it lies an electronic display device with buttons.'

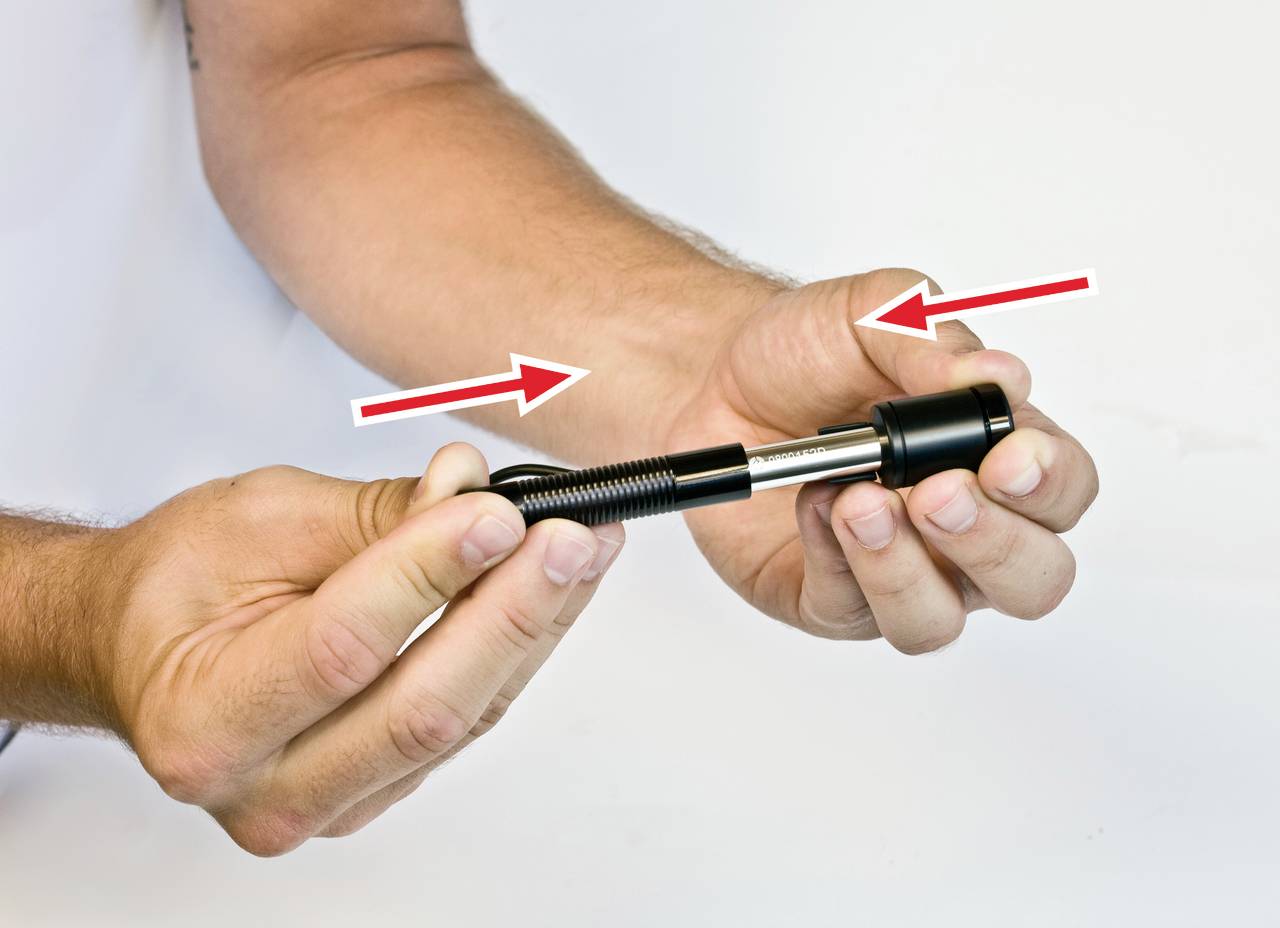

Hands are holding a device with two red arrows pointing to its ends, with the text 'Push' indicating how to assemble it.

1/4

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

20 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,046.22 / piece)

€ 1,046.22

plus VAT.

Report legal concerns

Highlights & Details

Mobile Leeb-Harteprufgerat HMM-NP

Mini statistics function: Shows the measured value, the average value, measuring direction, the date and time
Measured value display: Rockwell (B&C), Vickers (HV), brinell (HB), Shore (HSD), leeb (HL), tensile strength (MPa)
Automatic unit conversion: The measuring result is automatically transferred in all of the above-mentioned hard units evaluates

Technical specifications

Readability [D]: 1 HL
The thinnest measurable material thickness: 8 mm
Measuring range Tensile strength: 375 - 2639 MPa (steel).

Product type: Hardness tester

Reading range: 170-960 HL

Display type: Digital (LCD)

Dim: (L x W x H) 150 x 30 x 80 mm

Weight: 350 g

Features: + data logger

Content: 1 pc(s)

Calibration service: 961-131

Measuring type: Leeb

Width: 30 mm

Height: 80 mm

Length: 150 mm

: Manufacturer's standards (no certificate)

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1676526 Sauter HMM-NP Hardness tester Leeb 170-960 HL

User & Safety Instructions

User & Safety Instructions 1676526 Sauter HMM-NP Hardness tester Leeb 170-960 HL

Information

Information 1676526 Sauter HMM-NP Hardness tester Leeb 170-960 HL

Description

The SAUTER HMM. Compared with stationary table top equipment and hardness testers with internal sensor a highest level of mobility and flexibility in the use and tests in all test directions (360°) by means of an automatic compensation function.

This text is machine translated.

Features

Rebound sensor: The Rebound Module is indicated by a spring against the test object geschnellt. Depending on the hardness of the object, the kinetic energy of the module absorbed. The speed reduction is measured and converted in Leeb-Hartewerte
External rebound sensor (type D) Including
Automatic sensor detection in connection with the HMM.
Hard Comparison block including
Supplied in a robust carrying case
Internal data storage for up to 9 measuring groups, with up to 9 individual values per group from which the average value of the group is formed

Scope of delivery

Battery 3 x 1.5 V AAA
Carrying case
External rebound sensor
Hard Comparison block
