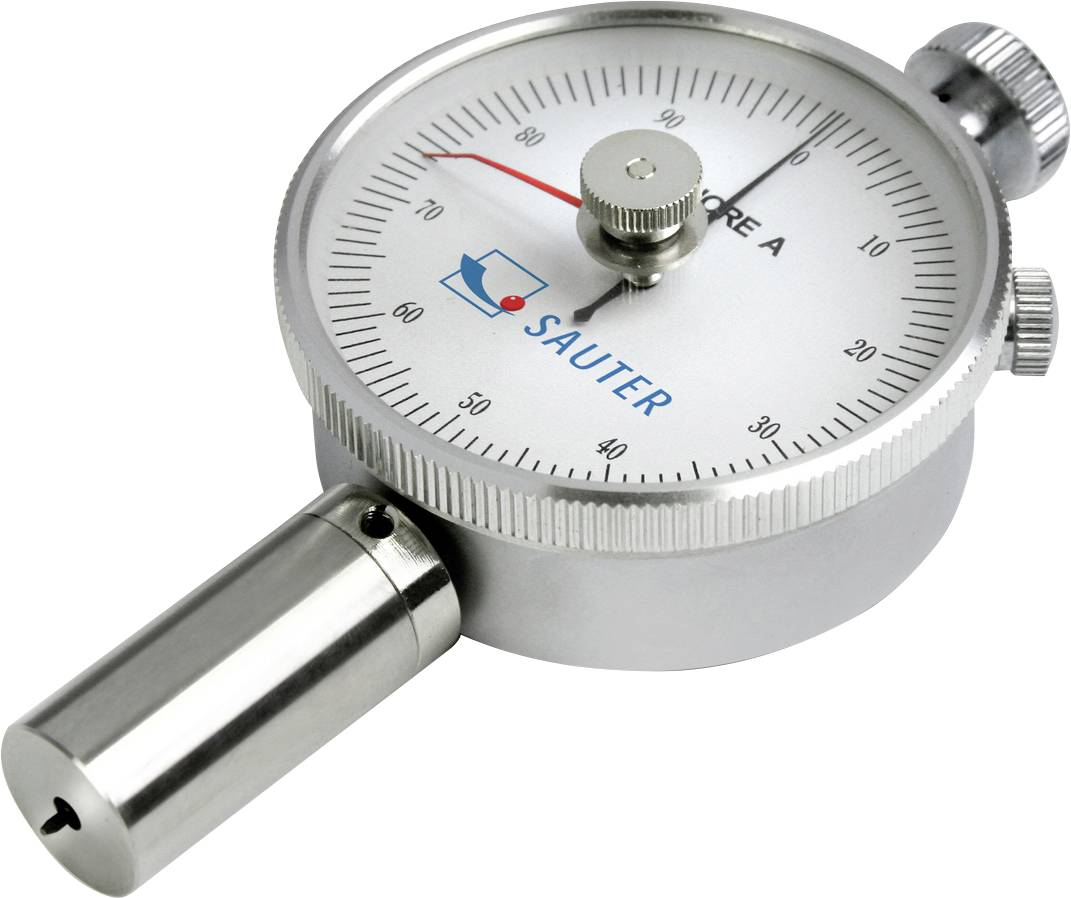

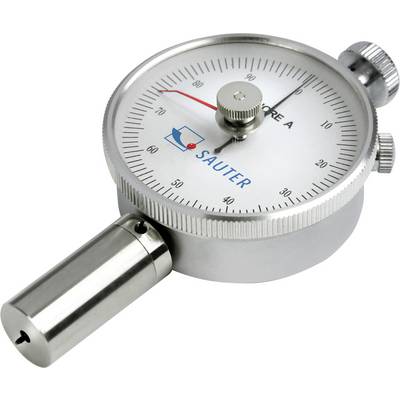

Sauter HBA 100-0 Hardness Tester 0 - 100 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
Highlights & Details
Sauter HBA 100-0 Hardness Tester 0 - 100 A
- Measurement process Shore A (rubber, elastomers, neoprene, silicone, vinyl, soft plastics, felt, leather and similar materials)
- Peak Hold Function
Technical specifications
- Measuring type: Shore A
- Reading range
0 - 100 A
- Dim
(L x W x H) 115 x 60 x 25 mm
- Weight
160 g
- Content
1 pc(s)
- Height
25 mm
- Length
115 mm
- Width
60 mm
Manufacturer's standards (no certificate)
- Display type
Analogue
- Measuring type
Shore
- Display (details)
Analogue
- Resolution
1.0 H A
- Accuracy
v. Max 3 %
- Product type
Hardness tester
Documents & Downloads
Datasheet
Datasheet 102363 Sauter HBA 100-0 Hardness Tester 0 - 100 A
User & Safety Instructions
User & Safety Instructions 102363 Sauter HBA 100-0 Hardness Tester 0 - 100 A
Information
Information 102363 Sauter HBA 100-0 Hardness Tester 0 - 100 A
Description
With the hardness testers of the series HB you can conduct comparison tests quickly and safely for determining the hardness. The different types of penetration depths are known as "Shore". The HB-series has been developed in the classical style and you can conduct quick measurements in the production.
Features
- Max- and point mode
- Peak hold function
Scope of delivery
- Storage box
- User manual.
Hints
Shore A: Rubber, elastomeric, neoprene, silicon, vinyl, soft plastics, felt, leather and similar materials.
Shore C/0: Foam, sponges.
Shore D: Plastics, synthetic resins, Formica, epoxide, poly-acrylics and similar materials.
