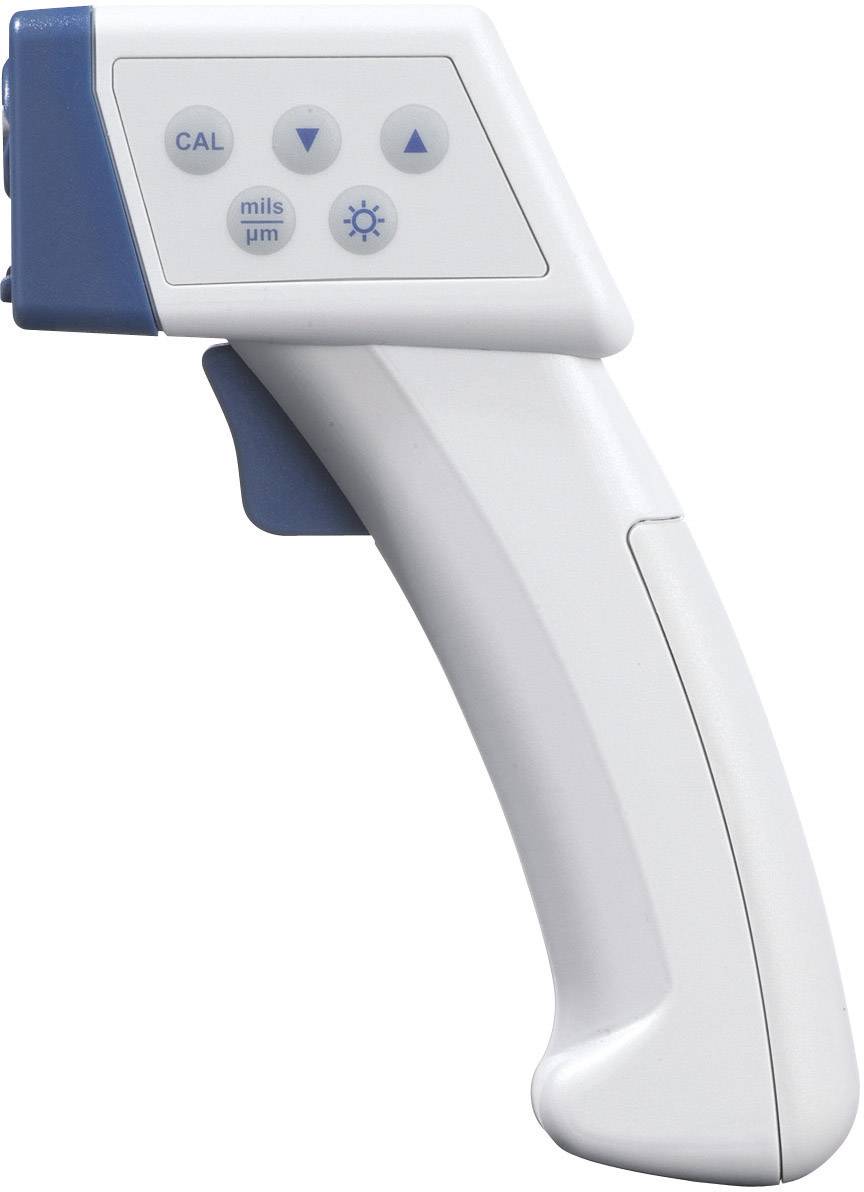

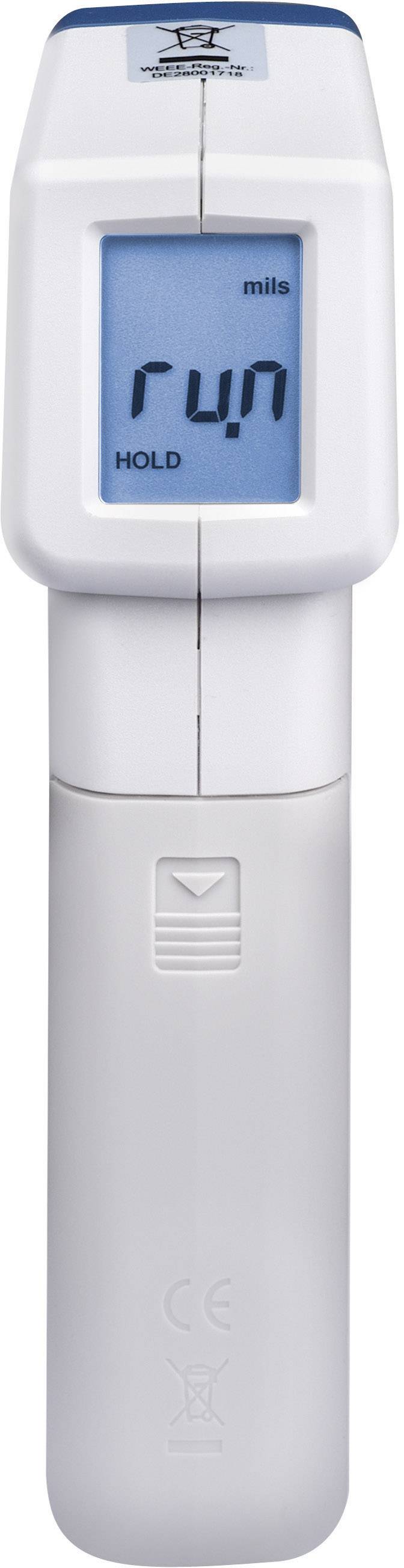

Voltcraft SDM-115 Layer Thickness Tester 0 - 1000 µm (0 - 40 mils)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 57.13 / piece)
€ 57.13
plus VAT.
14 days return policy included
Highlights & Details
Voltcraft SDM-115 Layer Thickness Tester 0 - 1000 µm (0 - 40 mils)
- Suitable for detecting repainted areas on a car
- For all ferrous and non-ferrous metals
- Two point calibration for high accuracy
Technical specifications
- Product type
Paint meter
- Measuring type
Ferrous substances
Steel
Non-ferrous substances
Copper
Aluminium
Zinc
Brass
- Reading range
0 - 1000 µm
Manufacturer's standards (no certificate)
- Operating voltage
9 V battery pack
- Dim
(L x W x H) 10.5 x 4.2 x 14.8 cm
- Display
LCD
- Resolution
1 µm
- Accuracy
3 %
- Content
1 pc(s)
- Reading range (max.)
1000 µm
- Reading range (min.)
0 µm
- Width
4.2 cm
- Height
14.8 cm
- Length
10.5 cm
- Display (details)
LCD
- Resolution
1 µm (0.1 mils)
- Accuracy
± 3% + 4 digits
- Reading range
0 - 1000 µm (0 - 40 mils)
Documents & Downloads
Datasheet
Datasheet 100847 Voltcraft SDM-115 Layer Thickness Tester 0 - 1000 µm (0 - 40 mils)
User & Safety Instructions
User & Safety Instructions 100847 Voltcraft SDM-115 Layer Thickness Tester 0 - 1000 µm (0 - 40 mils)
Conformity certificate
Conformity certificate 100847 Voltcraft SDM-115 Layer Thickness Tester 0 - 1000 µm (0 - 40 mils)
Warranty Terms
Warranty Terms 100847 Voltcraft SDM-115 Layer Thickness Tester 0 - 1000 µm (0 - 40 mils)
Description
The layer thickness measuring device quickly tells you the thickness of the paint at the measured position. This allows you to reliably find places that have been painted over or repaired. Also suitable for steel and aluminum.
Features
- Eddy current measurement
- Automated metal detection
- Max/Min function
- Hi/Lo limits.
Scope of delivery
- 3 calibration targets
- 1 battery (9 V block)
- Pouch
- User manual.
