Sauter HBD 100-0 Hardness Tester 0 - 100 HD
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 180.66 / piece)
€ 180.66
plus VAT.
Only 6 Piece(s) available
Highlights & Details
Sauter HBD 100-0 Hardness Tester 0 - 100 HD
- Shore measurement method
- Peak hold function
Technical specifications
- Measurement type: Shore D
- Product type
Hardness tester
- Reading range
0 - 100 HD
- Display type
Analogue
- Dim
(L x W x H) 115 x 60 x 25 mm
- Weight
160 g
- Content
1 pc(s)
- Measuring type
Shore
- Width
60 mm
- Height
25 mm
- Length
115 mm
Manufacturer's standards (no certificate)
- Display (details)
Analogue
- Resolution
1.0 HD
- Accuracy
v. Max 3 %
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 102365 Sauter HBD 100-0 Hardness Tester 0 - 100 HD
User & Safety Instructions
User & Safety Instructions 102365 Sauter HBD 100-0 Hardness Tester 0 - 100 HD
Information
Information 102365 Sauter HBD 100-0 Hardness Tester 0 - 100 HD
Description
With the hardness testers of the series HB you can conduct comparison tests quickly and safely for determining the hardness. The different types of penetration depths are known as "Shore". The HB-series has been developed in the classical style and you can conduct quick measurements in the production.
Features
- Max- and point mode
- Peak hold function

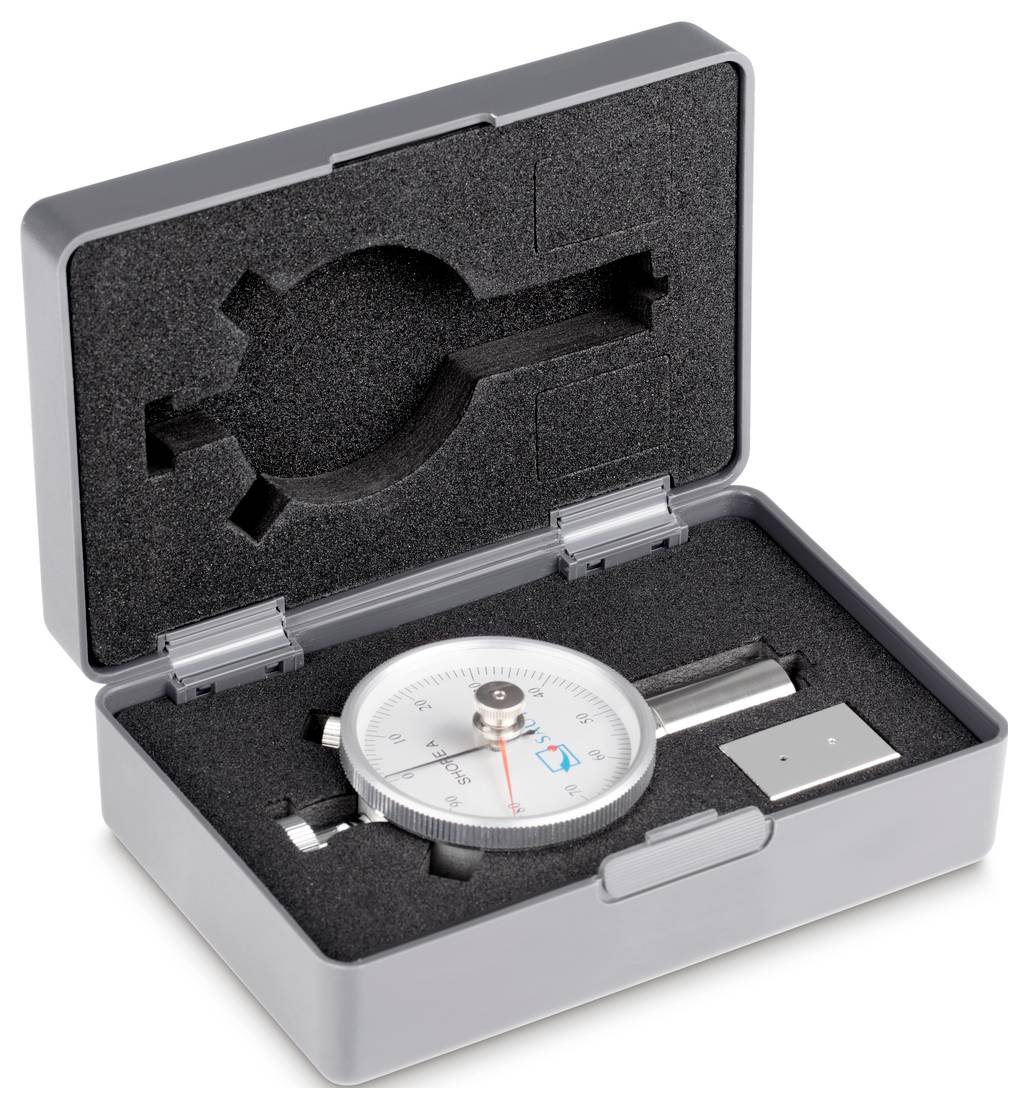

Scope of delivery
- Storage box
- User manual.
Hints
Shore A: Rubber, elastomeric, neoprene, silicon, vinyl, soft plastics, felt, leather and similar materials.
Shore C/0: Foam, sponges.
Shore D: Plastics, synthetic resins, Formica, epoxide, poly-acrylics and similar materials.
