Buy Sauter HDD 100-1 Hardness tester Shore 100 HD

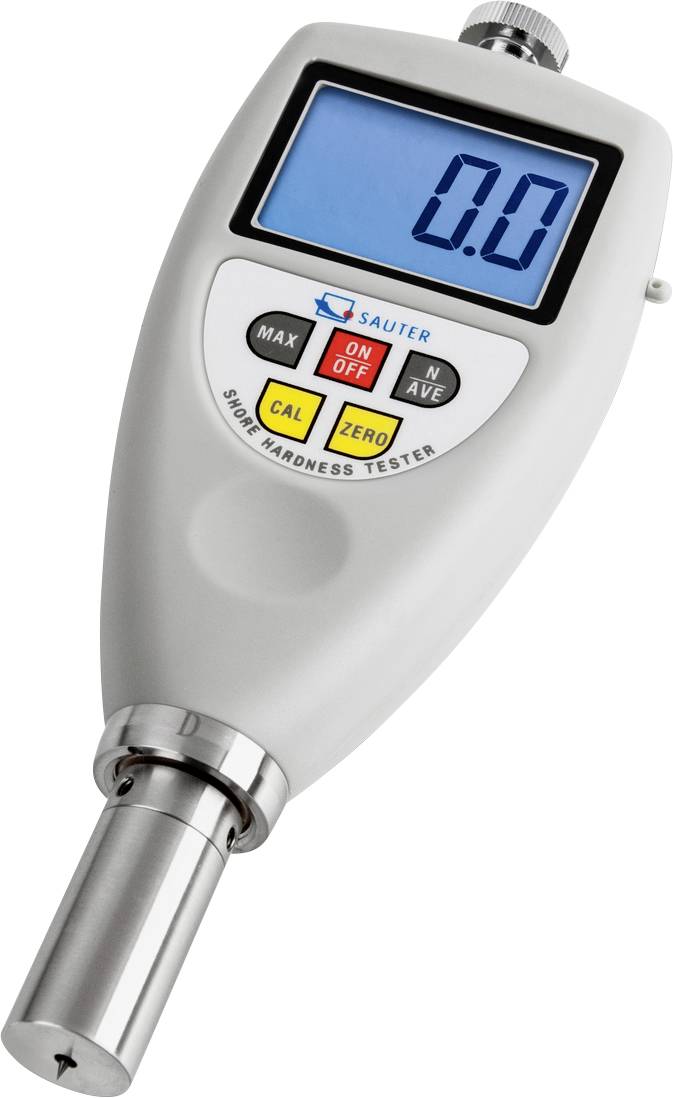

A portable hardness measuring device with a digital display shows '0.0'. It has buttons for maximum value, on/off, calibration, and zero setting.

Portable hardness tester in a black plastic case with foam lining. Includes the device, batteries, and accessories.

1/2

Datasheet (PDF)

Fast track dispatch on Mon, 21 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 424.37 / piece)

€ 424.37

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Digital Hardness Tester HDD 100-1

Internal data storage for up to 500 values
Large display with backlighting

Technical specifications

Readability: 1.0 H0.

Product type: Hardness tester

Reading range: 100 HD

Display type: Digital (LCD)

Dim: (L x W x H) 162 x 65 x 38 mm

Weight: 200 g

Features: + data logger

Content: 1 pc(s)

Measuring type: Shore

Width: 65 mm

Height: 38 mm

Length: 162 mm

: Manufacturer's standards (no certificate)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1676606 Sauter HDD 100-1 Hardness tester Shore 100 HD

User & Safety Instructions

User & Safety Instructions 1676606 Sauter HDD 100-1 Hardness tester Shore 100 HD

Information

Information 1676606 Sauter HDD 100-1 Hardness tester Shore 100 HD

Description

Recommended in particular for internal comparison measurements. Standard calibrations, for example, according to DIN 7619-1 are due to very close tolerances standard is often not possible
Can be mounted on the test benches TI-A0L (for shore A and A0), TI-DL (for Shore D) to improve the measurement uncertainty.

This text is machine translated.
