Buy scaleo systems Relay card 1 pc(s) Typ 24V 2 change-overs 24 V DC

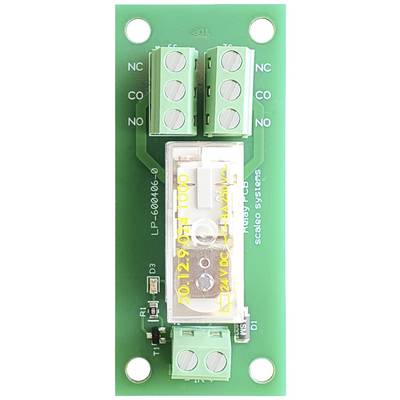

'Green printed circuit board with relays, four terminal blocks and a central yellow module. Two drill holes at the top and bottom.'

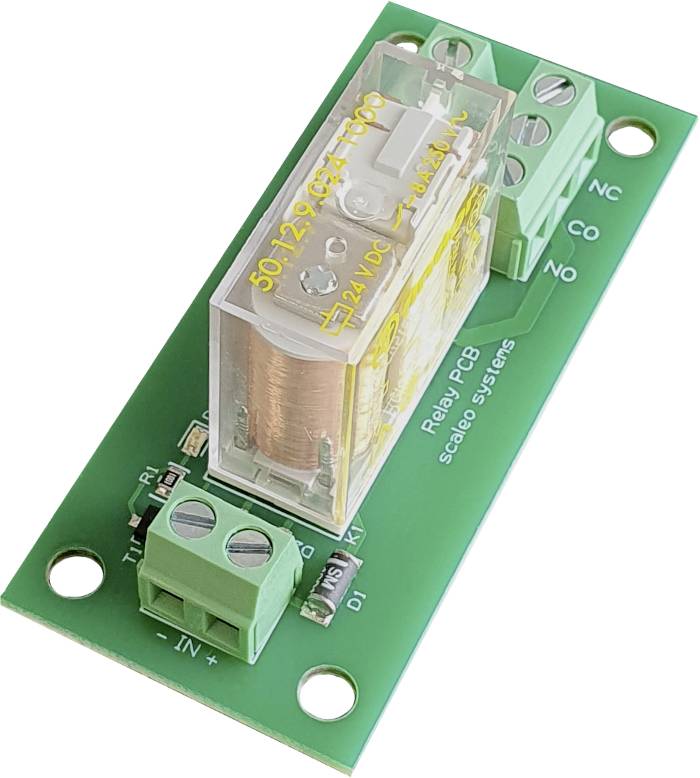

A green printed circuit board with a transparent relay in the centre, displaying '50.12' and '24 VDC'. It has green terminal blocks at both ends.

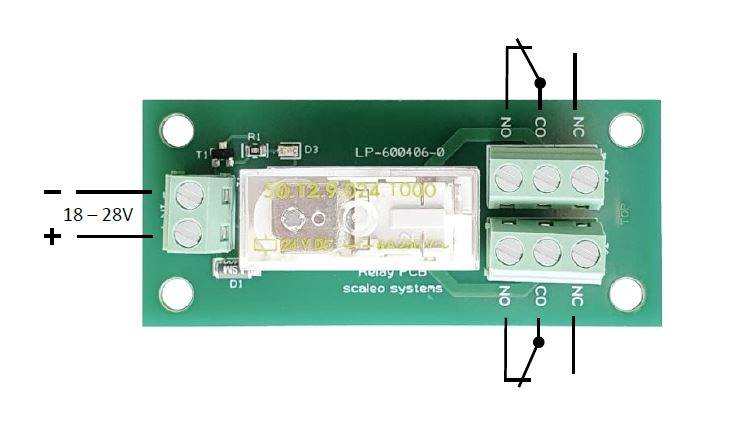

'Relay card with green printed circuit board, connections for 18-28V, and open and closed circuit contacts shown.'

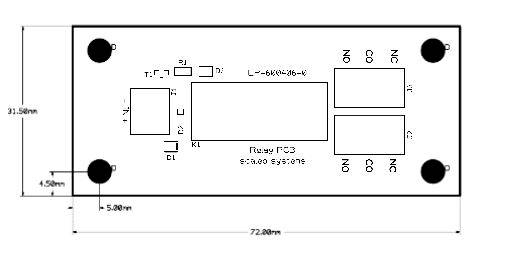

'Circuit diagram of a printed circuit board with dimensions 72.88 mm x 31.5 mm. Shows two rectangular components, four round mounting points and connections CN1, CN2.'

1/4

Product type

Relay card

Operating voltage

24 V DC

Contact type

2 change-overs

Connection

Screw terminal

Type

Typ 24V

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

35 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 35.29 / piece)

€ 35.29

plus VAT.

Report legal concerns

Highlights & Details

Safety relay board 24V/DC, 2 potential-free change-over contacts

Status LED display
Input voltage 18 – 28VDC with screw terminals
Positively driven safety relay with 2 potential-free changeover contacts
LED display red
Temperature range: 0 to 50°C (storage temperature: -40 to 70°C)
Installation environment: For dry inner rooms
Dimensions 52.5 x 48 x 25 mm
This text is machine translated.

Technical specifications

Product type: Relay card

Type: Typ 24V

Operating voltage: 24 V DC

Min. operating voltage: 18 V DC

Max. operating voltage: 28 V DC

Operating voltage: 18 - 28 V DC

Channels: 1

Contact type: 2 change-overs

Switching voltage (max.): 250 V AC

Switching current (max.): 6 A

Connection: Screw terminal

Content: 1 pc(s)

Weight: 30 g

Max. temperature: +70 °C

Min. temperature: -40 °C

Length: 31.5 mm

Width: 72 mm

Height: 26.5 mm

Dim: (L x W x H) 31.5 x 72 x 26.5 mm

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 2999017 scaleo systems Relay card 1 pc(s) Typ 24V 2 change-overs 24 V DC

User & Safety Instructions

User & Safety Instructions 2999017 scaleo systems Relay card 1 pc(s) Typ 24V 2 change-overs 24 V DC

scaleo systems Relay card 1 pc(s) Typ 24V 2 change-overs 24 V DC
